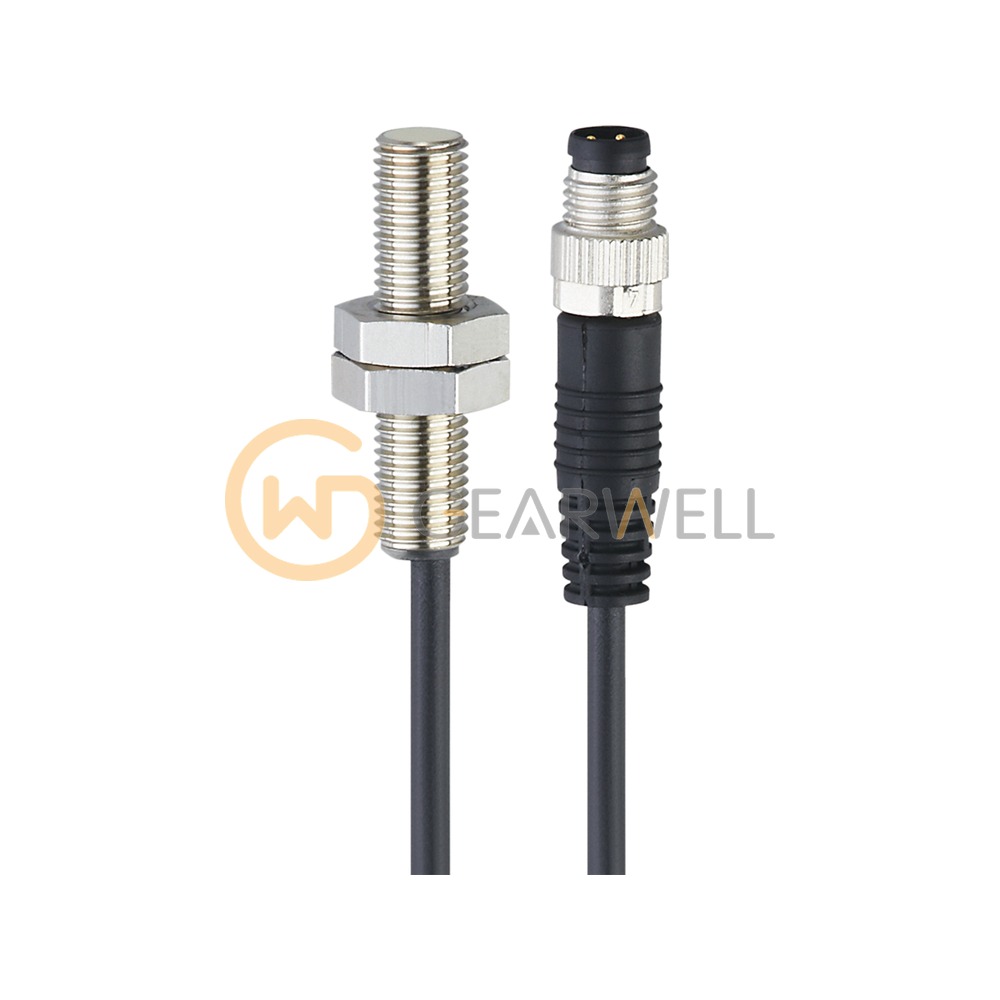

IFM IE5388 IEB3002BAPKG/0,8M/FH/AS Inductive Sensor
- Brand
- IFM
- Model
- IE5388
- GEARWELL SKU
- GWP-000008766
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M8 x 1 / L = 35 mm
- Protection
- IP 67
- Sensing range
- 2 mm
- Output function
- normally closed
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IE5388 (IEB3002BAPKG/0,8M/FH/AS) is an inductive proximity sensor in an M8 x 1 threaded housing 35 mm long, for flush mounting. Its rated sensing range is 2 mm. The real sensing range is 2 mm ± 10%. The PNP switching output is normally closed, rated at 200 mA and up to 850 Hz on 10…36 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a white-bronze-coated brass housing with an LCP sensing face, connects through an M8 connector (A-coded, 3 contacts) and is rated IP67 for -25…70 °C ambient.
Technical reference
| Product name | IFM IE5388 IEB3002BAPKG/0,8M/FH/AS Inductive Sensor |
|---|---|
| Brand | IFM |
| Model | IE5388 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M8 x 1 / L = 35 mm |
| Protection | IP 67 |
| Sensing range | 2 mm |
| Output function | normally closed |
| Electrical design | PNP |
| Operating voltage | 10...36 DC V |
| Current consumption | < 15 mA |
| Switching frequency DC | 850 Hz |
