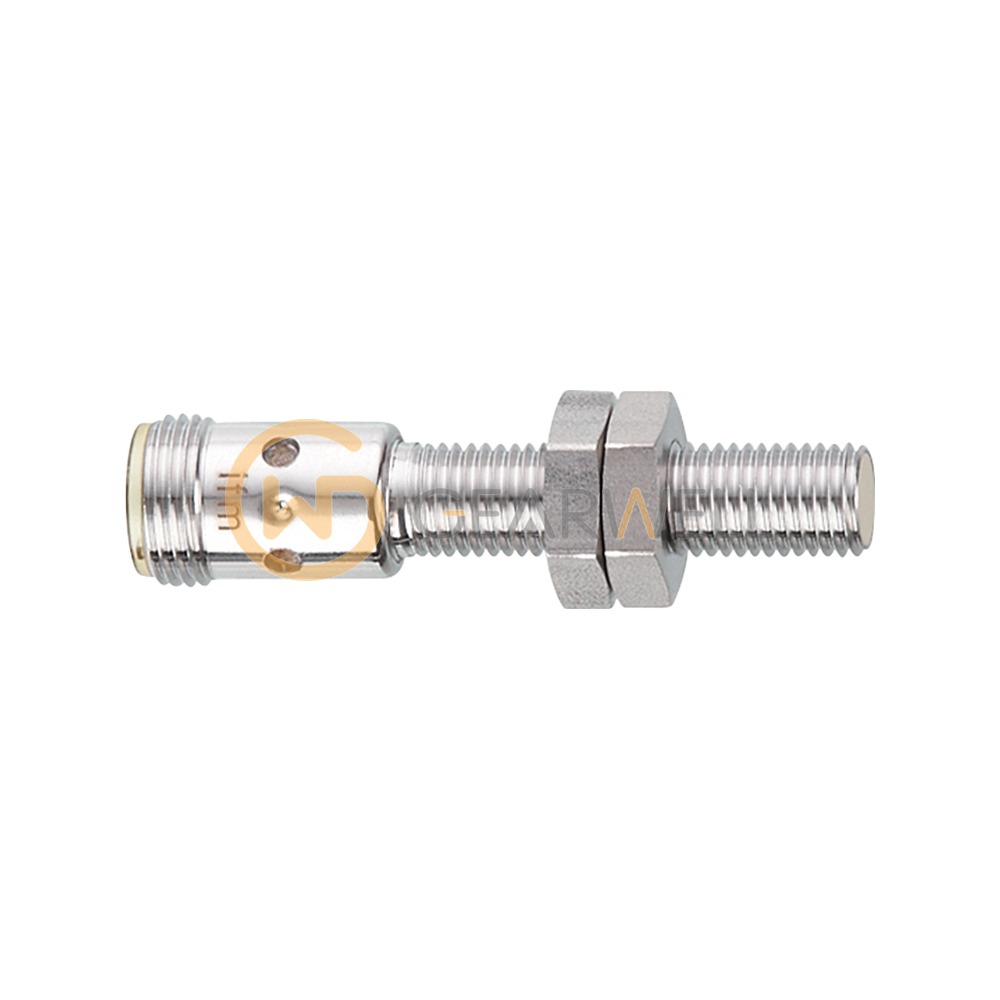

IFM IE5381 IEB3002BBPKG/V4A/US-104 Inductive Sensor

Product overview

The ifm IE5381 (IEB3002BBPKG/V4A/US-104) is an inductive proximity sensor in an M8 x 1 threaded housing 50 mm long, for flush mounting. Its rated sensing range is 2 mm, which ifm classes as an increased sensing range. The real sensing range is 2 mm ± 10% and the operating distance on steel is 0…1.62 mm. The PNP switching output is normally open, rated at 100 mA and up to 1000 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a stainless steel (1.4404 / 316L) housing with a white LCP sensing face, connects through an M12 connector (A-coded, 3 contacts) and is rated IP67 for -25…70 °C ambient. ifm lists it for use with oils and coolants. Two lock nuts are included.
