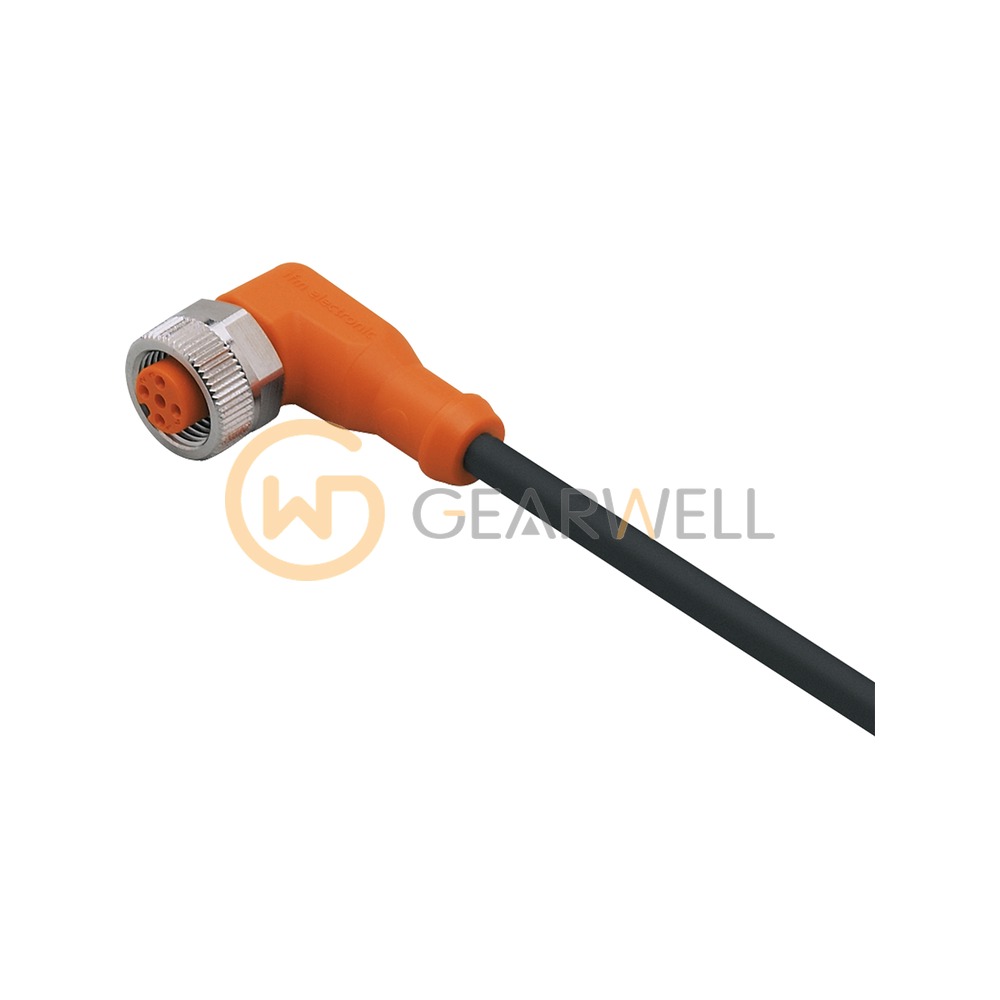

IFM EVC547 ADOAH050MSS0002K05 Connecting Cable with Socket
- Brand
- IFM
- Model
- EVC547
- GEARWELL SKU
- GWP-000009574
- Category
- Terminals, Cables & Connectors
Key specifications
- Weight
- 98.2 g
- Dimensions
- 26.5 x 15.5 x 36.5 mm
- Protection
- IP 65; IP 67
- Special feature
- Free from silicone; Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
- Operating voltage
- < 30 AC / < 36 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm EVC547 (ADOAH050MSS0002K05) is a female cordset with an angled M12 connector (A-coded, 5 gold-plated contacts) for industrial applications and use with oils and coolants; it is halogen-free, free from silicone and suitable for drag chains. The 2 m black screened PUR cable is Ø 4.9 mm with 5 x 0.25 mm² conductors. It is rated for below 30 V AC / below 36 V DC and 4 A in total (3 A under UL), has a TPU body with a nickel-plated brass nut (tightening torque 0.6…1.5 Nm) and is rated IP65 and IP67 for -25…90 °C ambient.
Technical reference
| Product name | IFM EVC547 ADOAH050MSS0002K05 Connecting Cable with Socket |
|---|---|
| Brand | IFM |
| Model | EVC547 |
| Category | Terminals, Cables & Connectors |
| Weight | 98.2 g |
| Dimensions | 26.5 x 15.5 x 36.5 mm |
| Protection | IP 65; IP 67 |
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability |
| Operating voltage | < 30 AC / < 36 DC V |
| Ambient temperature | -25...90 °C |
