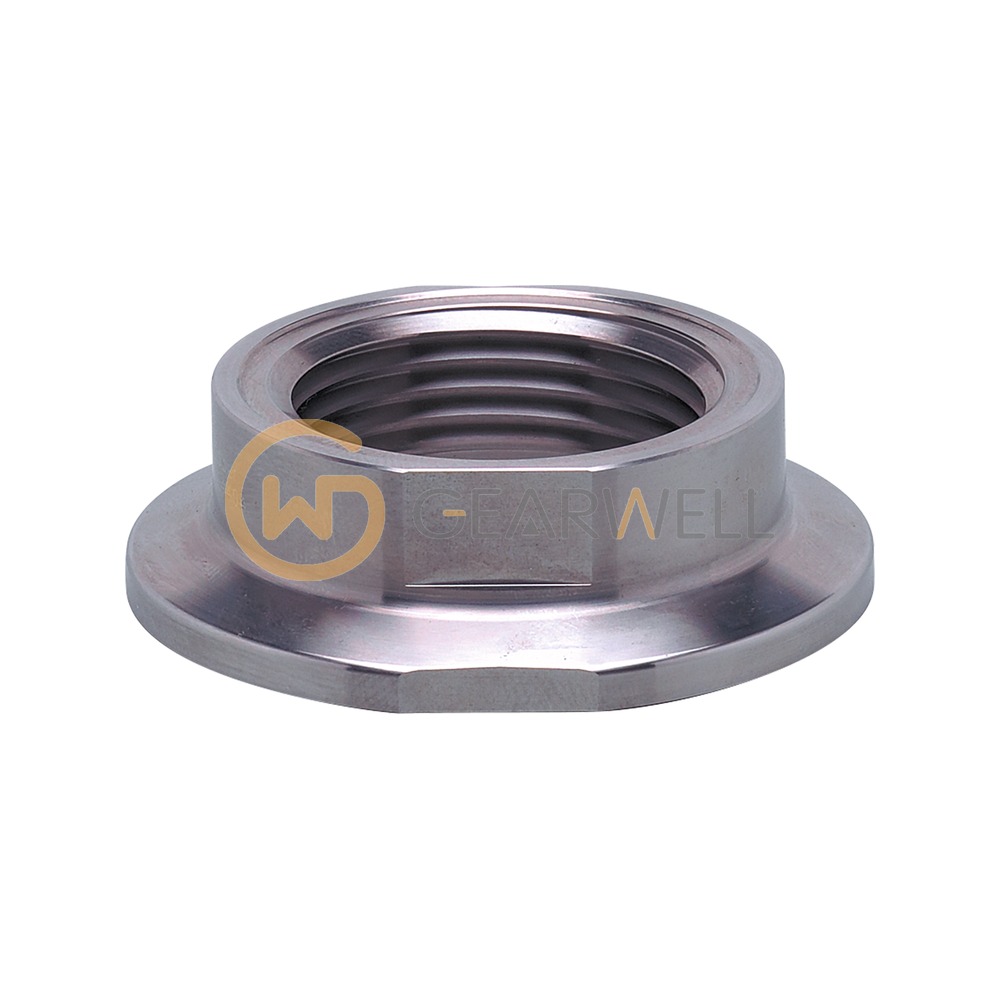

IFM E33201 Process Adapter Tri-Clamp
- Brand
- IFM
- Model
- E33201
- GEARWELL SKU
- GWP-000008650
- Category
- Pressure, Flow & Temperature
Key specifications
- Weight
- 100.5 g
- Sensor connection
- G 1 internal thread Aseptoflex Vario
- Process connection
- Clamp DN25...DN40 (1...1,5") Ø 50.5 mm DIN 32676 (ISO 2852)
- Safety instructions
- The compatibility between medium and product material has to be checked in all applications.
- Materials (wetted parts)
- stainless steel (316L/1.4435) surface characteristics: Ra < 0,4 µm / Rz = 4 µm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm E33201 (ADAPT IFM-CLAMP ISO2852 1-1.5") is a Tri-Clamp process adapter with a G 1 Aseptoflex Vario internal thread for process sensors, fitting clamp connections DN25…DN40 (1…1.5", Ø 50.5 mm) to DIN 32676 and ISO 2852. The wetted parts are stainless steel (1.4435 / 316L) with a surface roughness of Ra < 0.4 µm (Rz = 4 µm), it meets hygienic equipment class H4 to DIN 11866, and it is rated to 16 bar (1.6 MPa). An EPDM O-ring (24 x 2 mm, E30054) is supplied.
Technical reference
| Product name | IFM E33201 Process Adapter Tri-Clamp |
|---|---|
| Brand | IFM |
| Model | E33201 |
| Category | Pressure, Flow & Temperature |
| Weight | 100.5 g |
| Sensor connection | G 1 internal thread Aseptoflex Vario |
| Process connection | Clamp DN25...DN40 (1...1,5") Ø 50.5 mm DIN 32676 (ISO 2852) |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
| Materials (wetted parts) | stainless steel (316L/1.4435) surface characteristics: Ra < 0,4 µm / Rz = 4 µm |
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
