IFM E30443 IO-Link Display
- Brand
- IFM
- Model
- E30443
- GEARWELL SKU
- GWP-000006754
- Category
- HMIs & Industrial PCs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

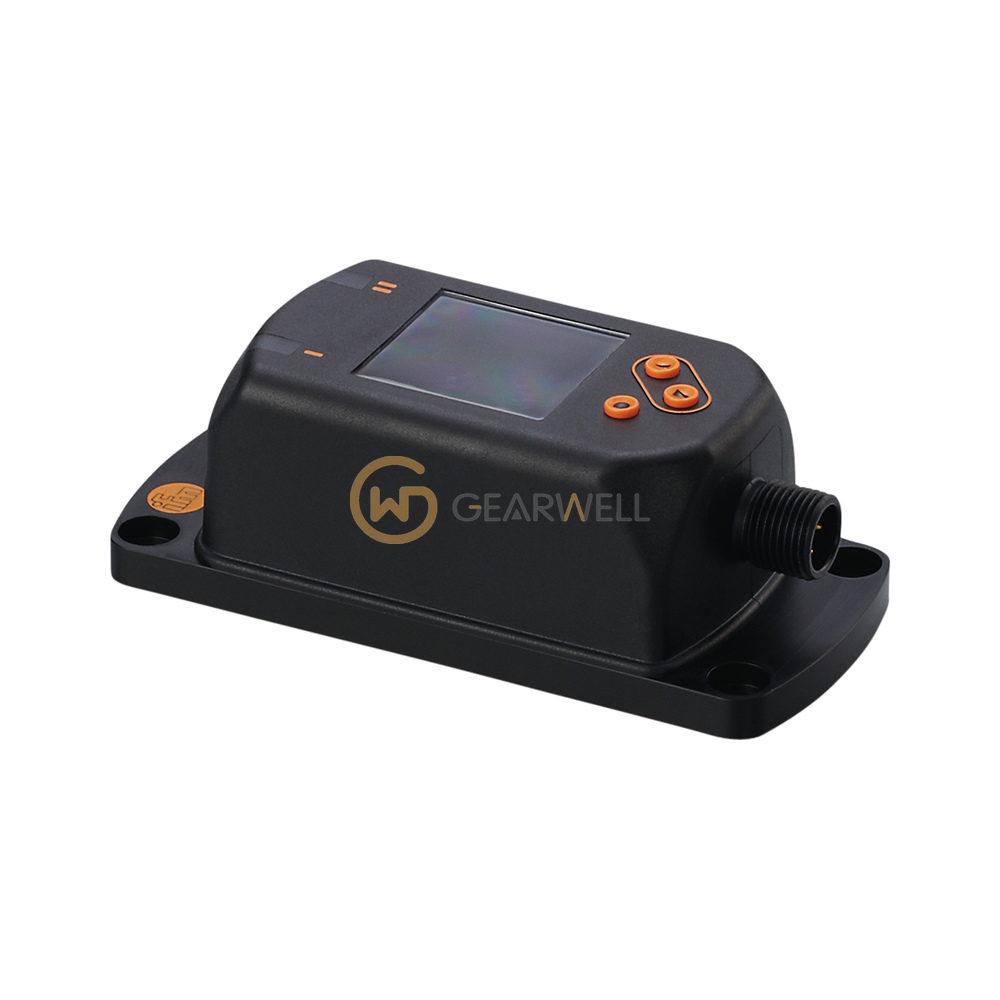

The ifm E30443 (IO-LINK MASTER DISPLAY 1,44) is an IO-Link display that shows the process values of all ifm IO-Link sensors connected to the same IO-Link master on a 1.44" color display of 128 x 128 pixels. It is itself an IO-Link 1.1 device (COM3, 230.4 kBaud) for a class A master port. It runs on 18…30 V DC, measures 86 x 45 x 39.5 mm, connects through an M12 connector (A-coded, 4 gold-plated contacts) and is rated IP65 and IP67 for -10…60 °C ambient.
Technical reference
| Product name | IFM E30443 IO-Link Display |
|---|---|
| Brand | IFM |
| Model | E30443 |
| Category | HMIs & Industrial PCs |
