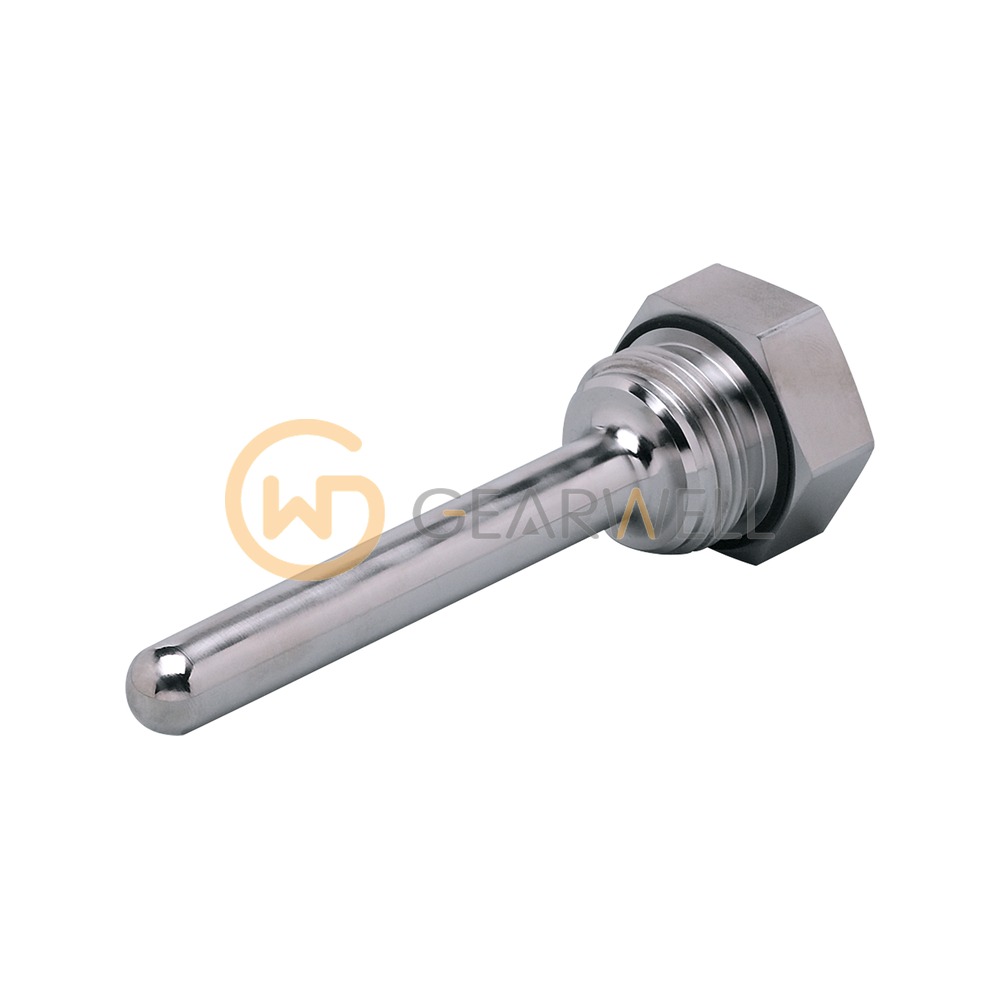

IFM E34010 Thermowell for temperature sensors
- Brand
- IFM
- Model
- E34010
- GEARWELL SKU
- GWP-000016668
- Category
- Pressure, Flow & Temperature
Key specifications
- Design
- for temperature sensors Ø 10 mm
- Weight
- 194 g
- Material
- stainless steel (1.4404 / 316L)
- Probe length L
- 95 mm
- Pressure rating
- 25 bar / 2.5 MPa
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM E34010 Thermowell for temperature sensors |
|---|---|
| Brand | IFM |
| Model | E34010 |
| Category | Pressure, Flow & Temperature |
| Design | for temperature sensors Ø 10 mm |
| Weight | 194 g |
| Material | stainless steel (1.4404 / 316L) |
| Probe length L | 95 mm |
| Pressure rating | 25 bar / 2.5 MPa |
| Sensor connection | G 1/2 Ø 10 mm |
| Process connection | Aseptoflex |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.6 µm |
