IFM E30444 IO-Link Repeater
- Brand
- IFM
- Model
- E30444
- GEARWELL SKU
- GWP-000006765
- Category
- Industrial Communication
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

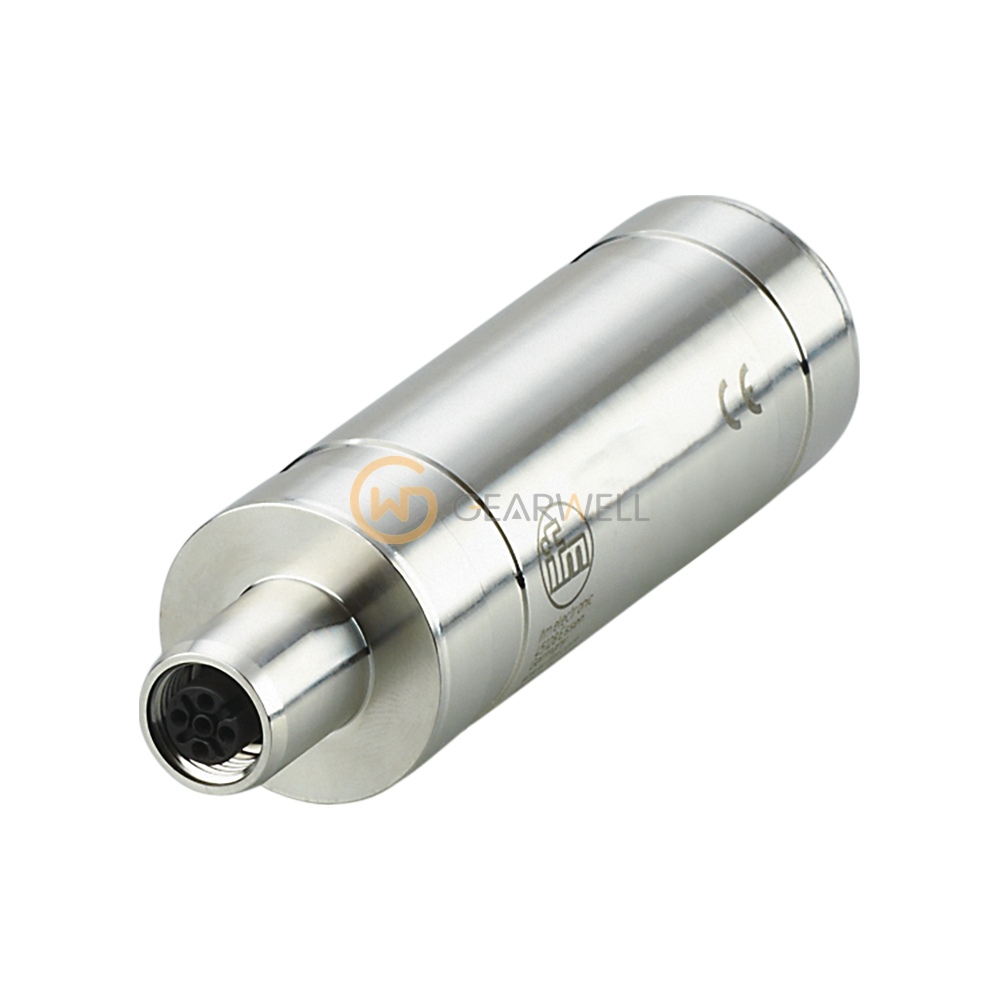

The ifm E30444 is an IO-Link repeater for master ports of class A and B, supporting IO-Link revisions 1.0 and 1.1 at COM1, COM2 and COM3. ifm gives a delay of up to one cycle for process data and up to two cycles for acyclic data per repeater, a power-on delay under 2 s, and a current rating per port of 0.84 A for class A or 2 A for class B; surge protection is integrated. It runs on 18…30 V DC (24 V nominal), has a stainless steel (1.4404 / 316L) housing with a premounted grounding clamp for functional grounding and is rated IP68 and IP69K for -25…65 °C ambient. It has UL approval under file E205959.
Technical reference
| Product name | IFM E30444 IO-Link Repeater |
|---|---|
| Brand | IFM |
| Model | E30444 |
| Category | Industrial Communication |
