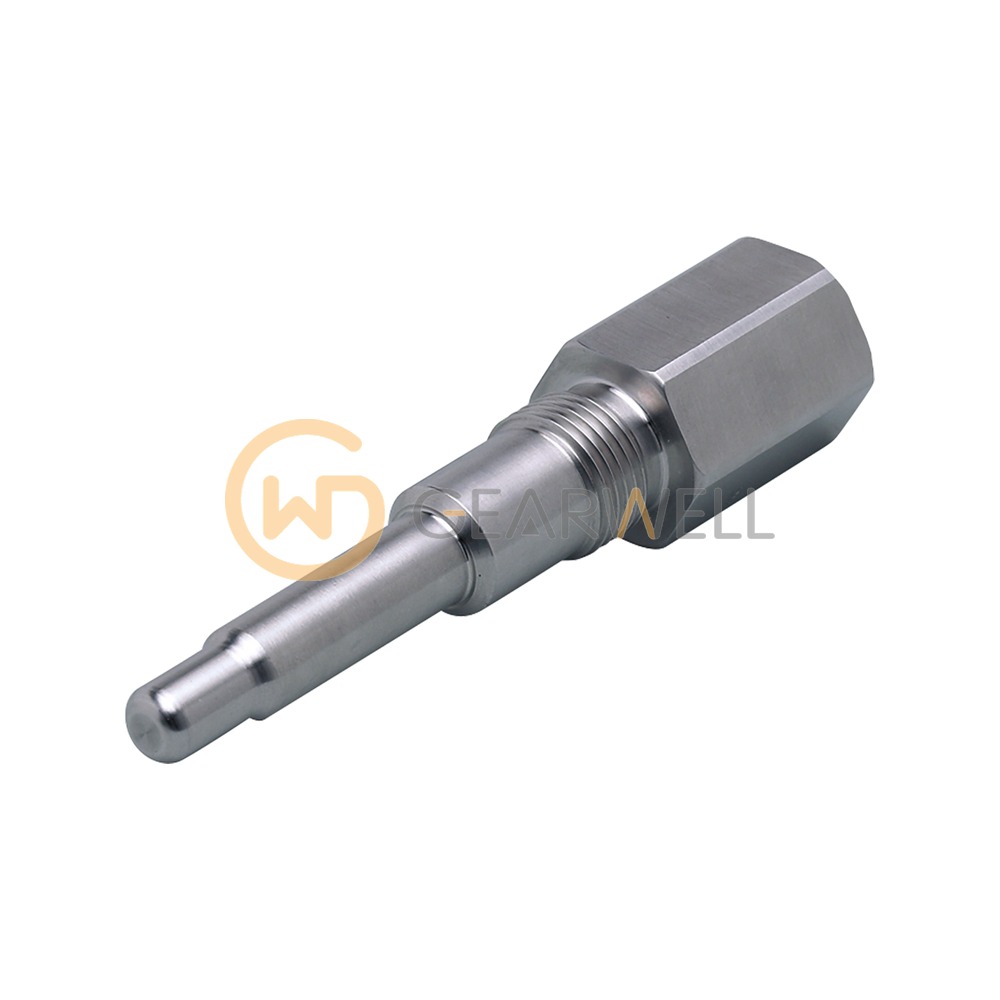

IFM E30393 PROTECTIVE TUBE FOR TA Thermowell for temperature sensors
- Brand
- IFM
- Model
- E30393
- GEARWELL SKU
- GWP-000016664
- Category
- Pressure, Flow & Temperature
Key specifications
- Design
- for temperature sensors TA34xx, TAA431, TAD191
- Weight
- 172.9 g
- Material
- stainless steel (1.4404 / 316L)
- Probe length L
- 53 mm
- Pressure rating
- 300 bar / 30 MPa
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM E30393 PROTECTIVE TUBE FOR TA Thermowell for temperature sensors |
|---|---|
| Brand | IFM |
| Model | E30393 |
| Category | Pressure, Flow & Temperature |
| Design | for temperature sensors TA34xx, TAA431, TAD191 |
| Weight | 172.9 g |
| Material | stainless steel (1.4404 / 316L) |
| Probe length L | 53 mm |
| Pressure rating | 300 bar / 30 MPa |
| Sensor connection | G 1/2 sealing cone Ø 8,2 mm |
| Process connection | G 1/2 external thread sealing cone |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.6 µm |
