IFM E20645 Fibre Optic Diffuse Reflection Sensor
- Brand
- IFM
- Model
- E20645
- GEARWELL SKU
- GWP-000000798
- Category
- Proximity & Photoelectric Sensors
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

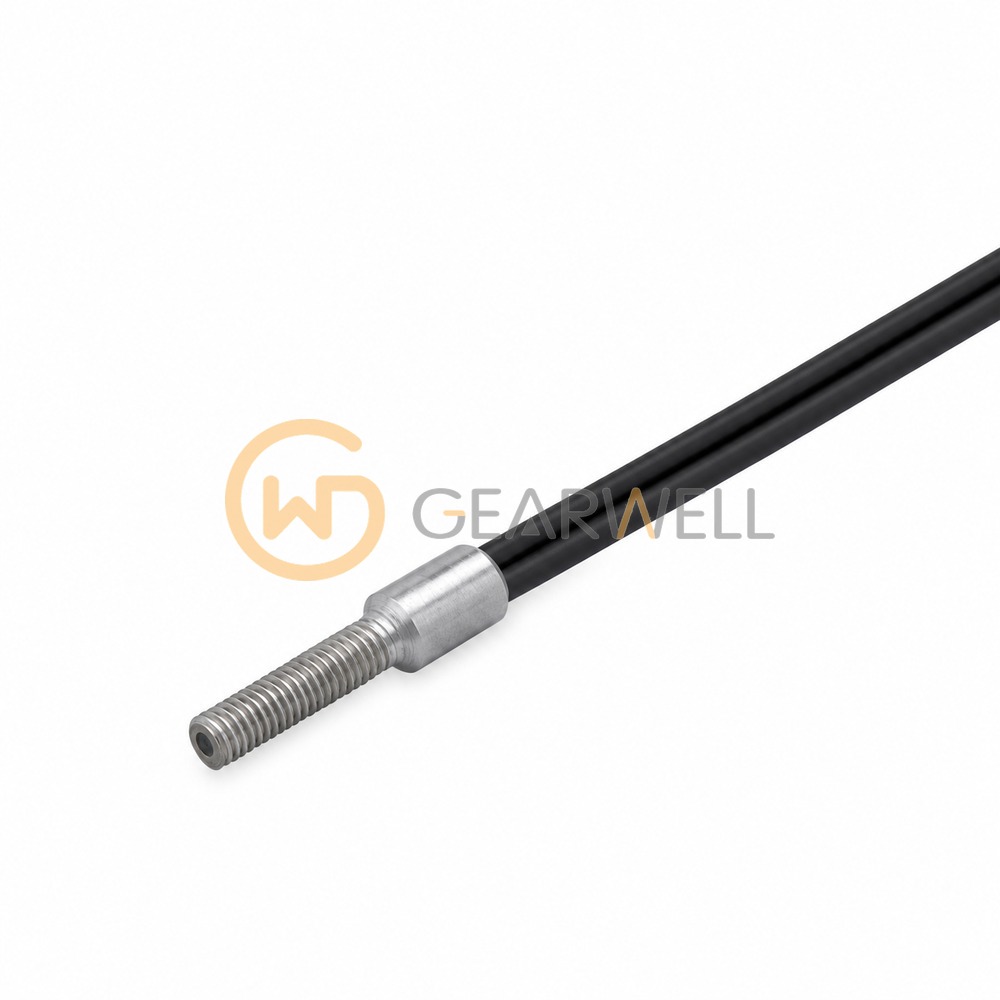

The ifm E20645 (FT-11-EPA-M4/F2X16X0,265/2M) is a plastic (PMMA) fiber optic diffuse reflection sensor with a small bending radius, used with ifm fiber optic amplifiers of types OB50, OBF, OCF and OO50. ifm gives a range of 60 mm. It has a straight M4 aluminum sensing head 26 mm long, a multi-core fiber (2 x 16 x 0.25 mm) with a PE sheath, a total length of 2000 mm and a minimum bending radius of 9 mm, and is rated for -40…70 °C ambient. The fiber can be cut to length with the optional cutter E20600. Two M4 hexagon nuts and two tooth lock washers are supplied.
Technical reference
| Product name | IFM E20645 Fibre Optic Diffuse Reflection Sensor |
|---|---|
| Brand | IFM |
| Model | E20645 |
| Category | Proximity & Photoelectric Sensors |
