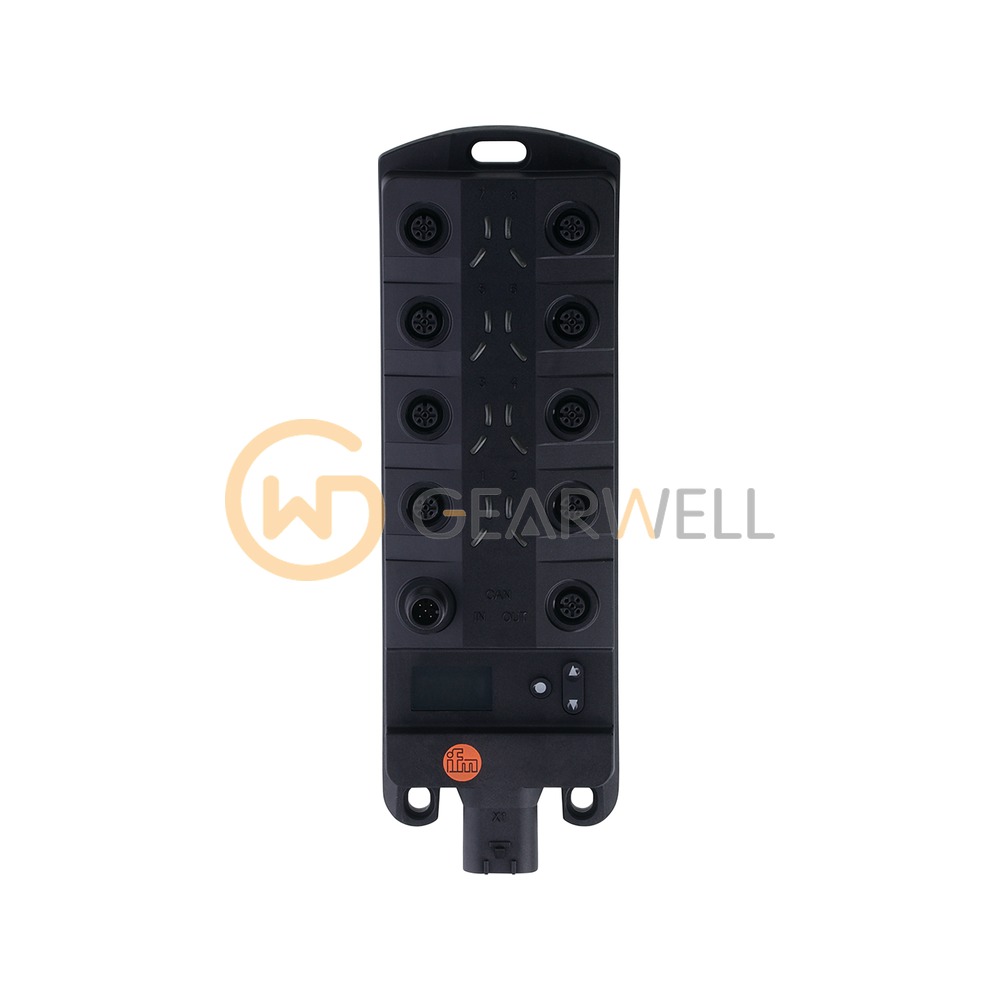

IFM CR2040 ioControl/In 16/M12 Input Module for Mobile Machines
- Brand
- IFM
- Model
- CR2040
- GEARWELL SKU
- GWP-000008645
- Category
- PLCs & I/O
Key specifications
- Interface
- CAN Interface 2.0 A/B ISO 11898
- Dimensions
- 234 x 76 x 37.2 mm
- Protection
- IP 65; IP 67
- Operating voltage
- 8...32 DC V
- Current consumption
- 188 (24 V DC: 105 mA; maximum: 300 mA) mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm CR2040 (ioControl/In 16/M12) is an input module for mobile machines with 16 inputs, including eight analog inputs (0…20 mA or 0…32 V), four frequency inputs and four resistor inputs. It is programmable to IEC 61131-3 with CODESYS 2.3, has two CAN interfaces (CANopen, SAE J1939 or free protocol, factory setting 250 kBit/s) and a 4-digit LED display with pushbuttons for setting parameters. It runs on 8…32 V DC (12 / 24 V nominal), measures 234 x 76 x 37.2 mm, is mounted on a backplane, connects through M12 connectors (A-coded, 5 gold-plated contacts) and is rated IP65 and IP67 for -40…85 °C ambient.
Technical reference
| Product name | IFM CR2040 ioControl/In 16/M12 Input Module for Mobile Machines |
|---|---|
| Brand | IFM |
| Model | CR2040 |
| Category | PLCs & I/O |
| Interface | CAN Interface 2.0 A/B ISO 11898 |
| Dimensions | 234 x 76 x 37.2 mm |
| Protection | IP 65; IP 67 |
| Operating voltage | 8...32 DC V |
| Current consumption | 188 (24 V DC: 105 mA; maximum: 300 mA) mA |
| Communication interface | CAN |
| Number of digital inputs | 16 |
| Number of analogue inputs | 8 |
