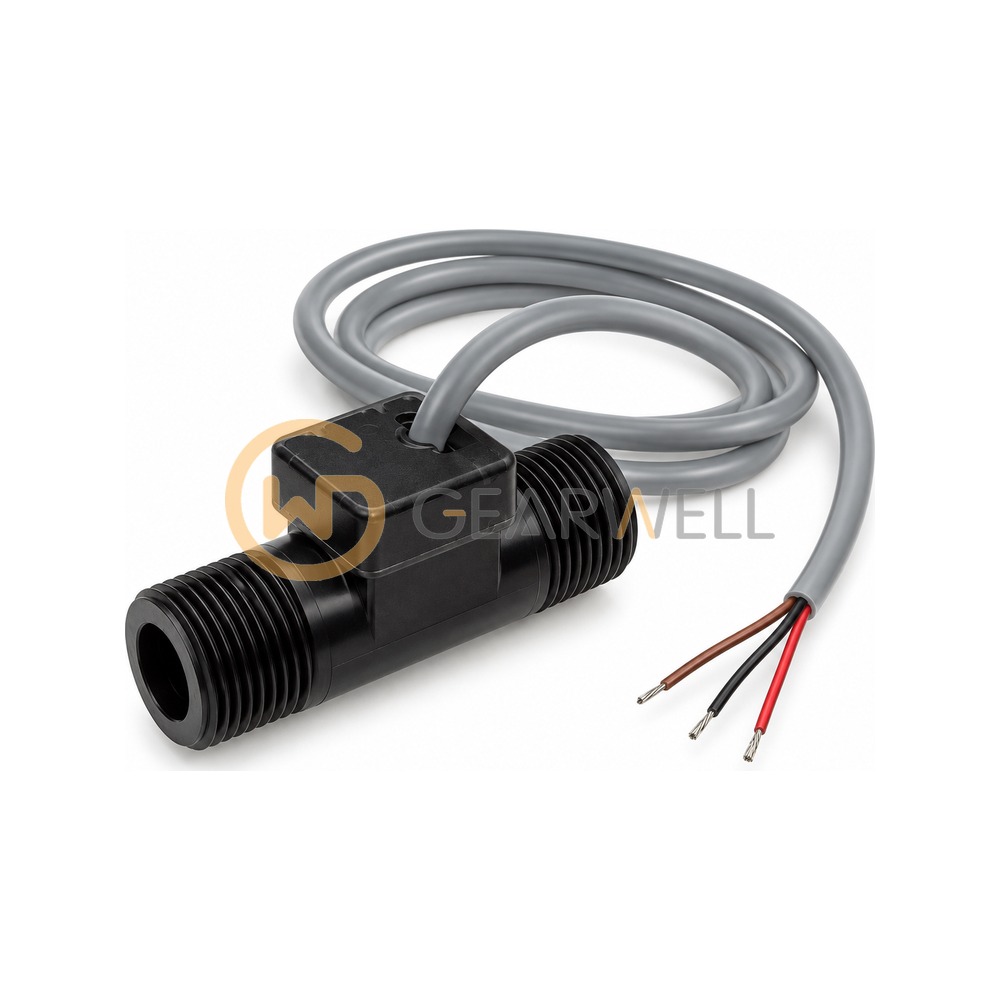

Gems FT-110 PN173934-C Turbine Flow Rate Sensor
- Brand
- Gems
- Model
- FT-110 PN173934-C
- GEARWELL SKU
- GWP-000016444
- Category
- Pressure, Flow & Temperature
Key specifications
- Port
- 3/8" NPT male
- Accuracy
- ±3% of reading
- K-factor
- 2200 pulses/L (8300 pulses/gal)
- Flow range
- 1-15 (0.26-4.0 GPM) L/min
- Input power
- 5-24 VDC @ 8 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Gems FT-110 PN173934-C Turbine Flow Rate Sensor |
|---|---|
| Brand | Gems |
| Model | FT-110 PN173934-C |
| Category | Pressure, Flow & Temperature |
| Port | 3/8" NPT male |
| Accuracy | ±3% of reading |
| K-factor | 2200 pulses/L (8300 pulses/gal) |
| Flow range | 1-15 (0.26-4.0 GPM) L/min |
| Input power | 5-24 VDC @ 8 mA |
| Part number | 173934-C |
| Body material | Nylon 12 |
| Output frequency | 37-550 Hz |
| Type designation | FT-110 |
| Operating pressure | 200 psig |
| Electrical connection | 3-conductor PVC cable, approx. 1 m |
