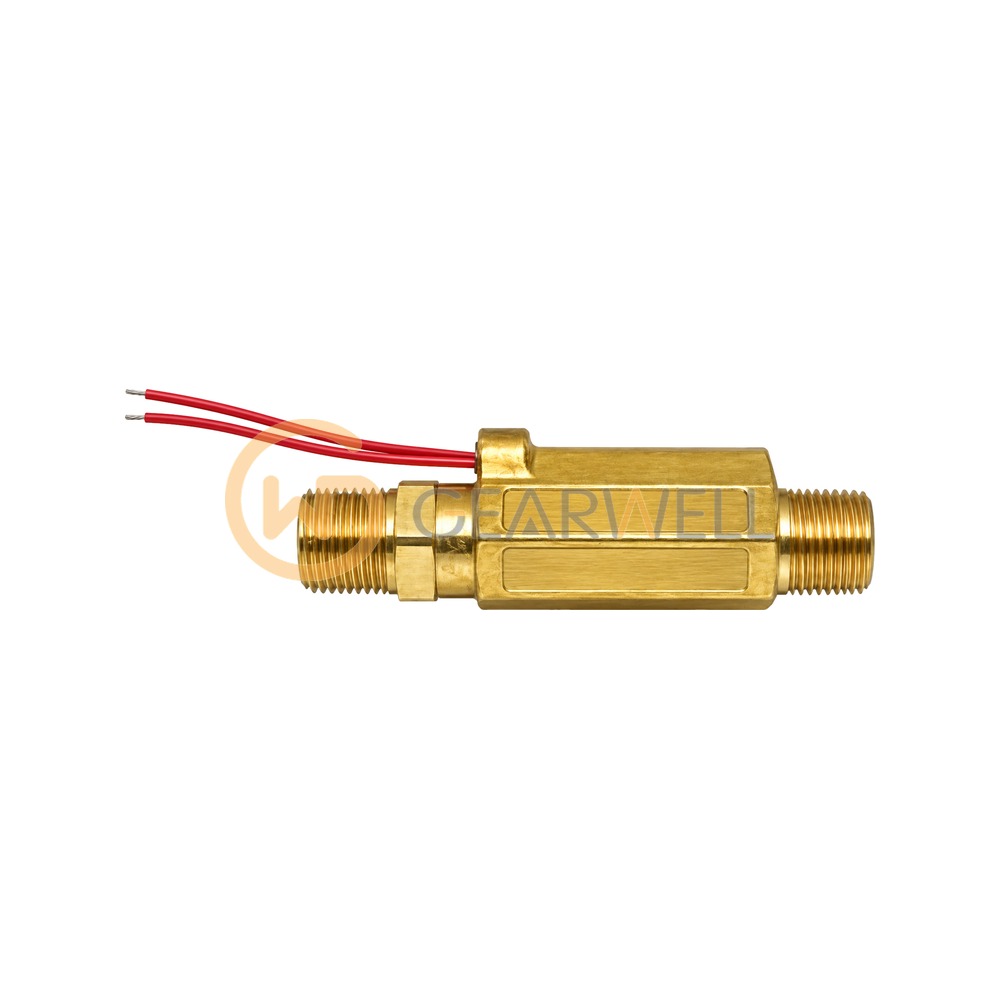

Gems FS-380 PN168432 FS-380 Series Piston Flow Switch
- Brand
- Gems
- Model
- FS-380 PN168432
- GEARWELL SKU
- GWP-000015203
- Category
- Pressure, Flow & Temperature
Key specifications
- Port
- 3/8" NPT male
- Switch
- SPST, 20 VA, N.O. at no flow
- Part number
- 168432
- Flow setting
- 0.25 GPM
- Housing material
- Brass
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Gems FS-380 PN168432 FS-380 Series Piston Flow Switch |
|---|---|
| Brand | Gems |
| Model | FS-380 PN168432 |
| Category | Pressure, Flow & Temperature |
| Port | 3/8" NPT male |
| Switch | SPST, 20 VA, N.O. at no flow |
| Part number | 168432 |
| Flow setting | 0.25 GPM |
| Housing material | Brass |
| Type designation | FS-380 |
| Set point accuracy | ±20% max. |
| Operating temperature | -28.8 to +135 °C |
| Max. operating pressure | 1500 psi |
