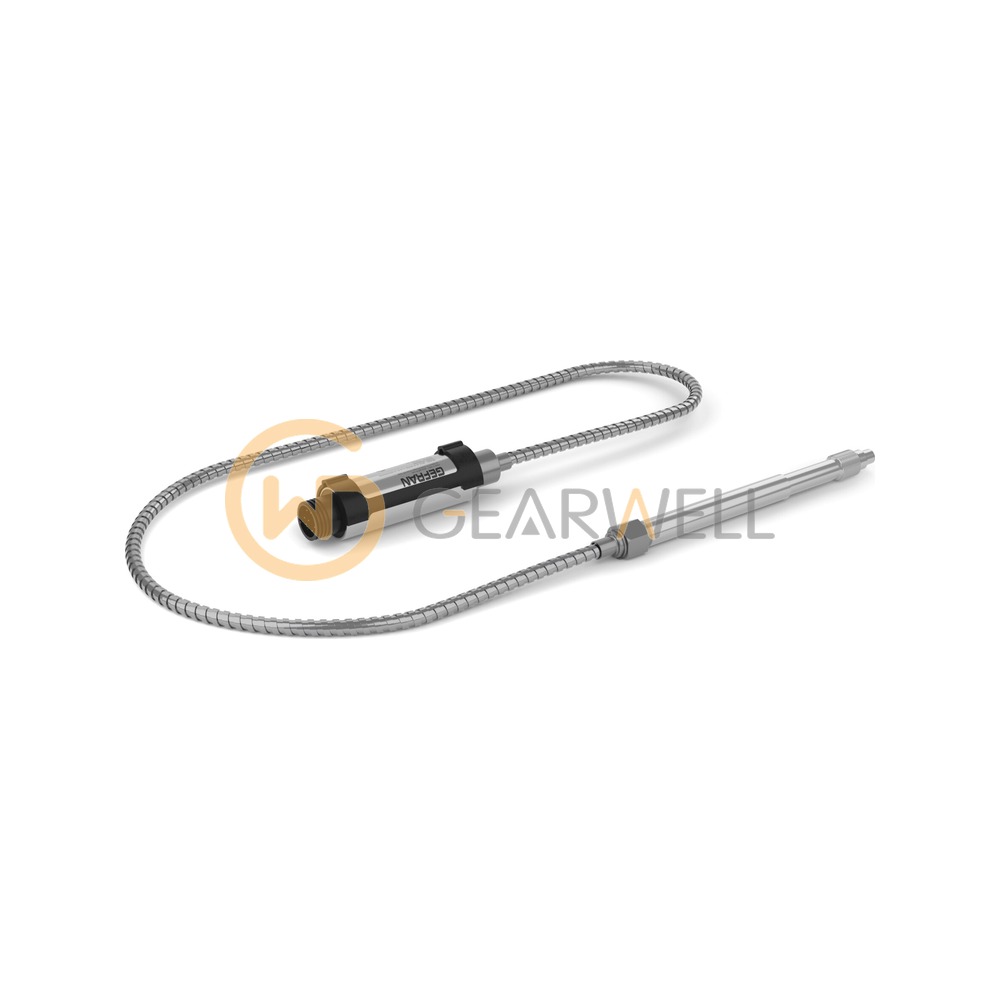

GEFRAN F043390 M21-6-M-B35D-4-6-D Melt Pressure Transducer
- Brand
- GEFRAN
- Model
- F043390
- GEARWELL SKU
- GWP-000014020
- Category
- Pressure, Flow & Temperature
Key specifications
- Series
- M3
- Version
- Rigid stem + flexible sheath
- Output signal
- 2.5 mV/V
- Accuracy class
- <±0.5% FSO (M)
- Process thread
- M18x1.5
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GEFRAN F043390 M21-6-M-B35D-4-6-D Melt Pressure Transducer |
|---|---|
| Brand | GEFRAN |
| Model | F043390 |
| Category | Pressure, Flow & Temperature |
| Series | M3 |
| Version | Rigid stem + flexible sheath |
| Output signal | 2.5 mV/V |
| Accuracy class | <±0.5% FSO (M) |
| Process thread | M18x1.5 |
| Type designation | M21-6-M-B35D-4-6-D 2130X000X00 |
| Measurement range | 0-350 bar |
| Electrical connection | 6-pin connector VPT07RA10-6PT2 |
| Rigid stem / flexible length | 350 mm (14 in) / 457 mm (18 in) |
| Product ID (Gefran order number) | F043390 |
