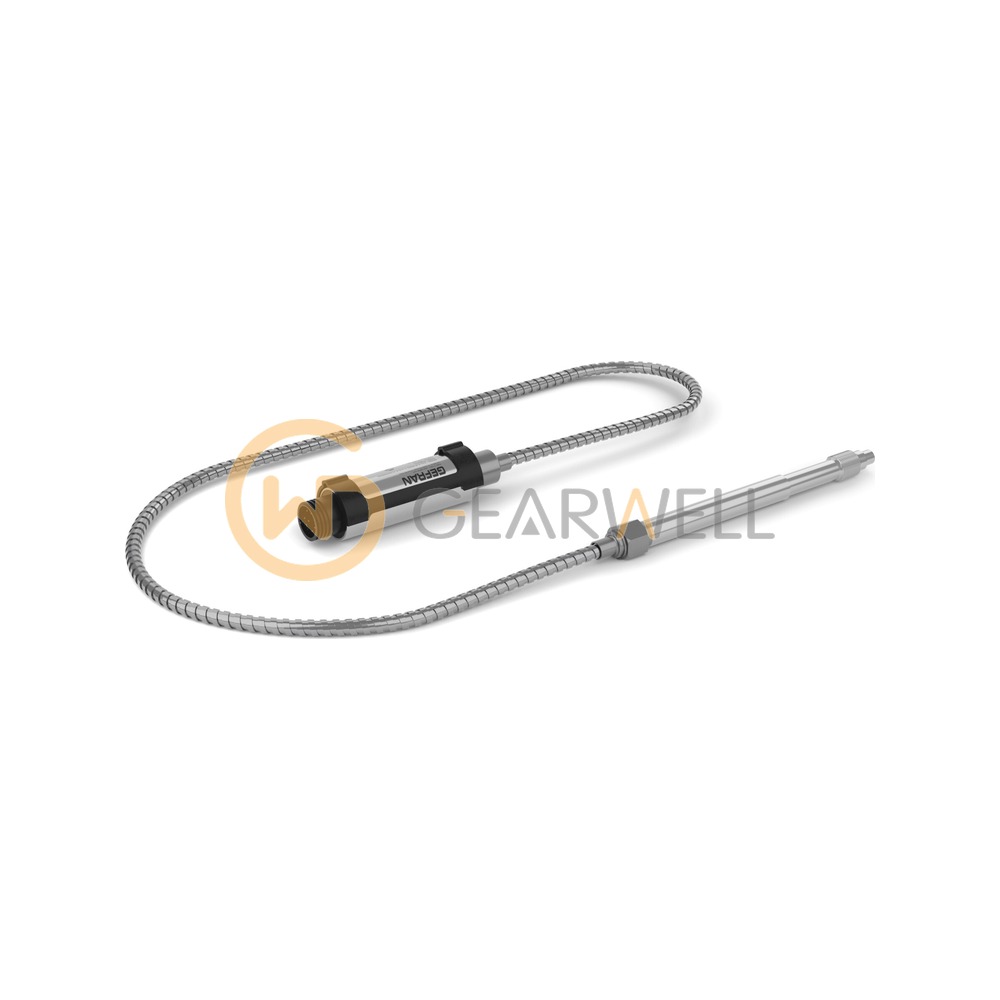

GEFRAN F042381 K32-6-M-B07C-1-4-D-I Melt Pressure Transducer
- Brand
- GEFRAN
- Model
- F042381
- GEARWELL SKU
- GWP-000014018
- Category
- Pressure, Flow & Temperature
Key specifications
- Series
- K3
- Version
- Flexible stem with type J thermocouple
- Output signal
- 3.33 mV/V
- Accuracy class
- <±0.5% FSO (M)
- Process thread
- 1/2-20 UNF
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GEFRAN F042381 K32-6-M-B07C-1-4-D-I Melt Pressure Transducer |
|---|---|
| Brand | GEFRAN |
| Model | F042381 |
| Category | Pressure, Flow & Temperature |
| Series | K3 |
| Version | Flexible stem with type J thermocouple |
| Output signal | 3.33 mV/V |
| Accuracy class | <±0.5% FSO (M) |
| Process thread | 1/2-20 UNF |
| Type designation | K32-6-M-B07C-1-4-D-I 2130X000X00 |
| Measurement range | 0-700 bar |
| Electrical connection | 6-pin connector VPT07RA10-6PT2 |
| Stem / flexible length codes | 4 / D (as in the official type designation) |
| Product ID (Gefran order number) | F042381 |
