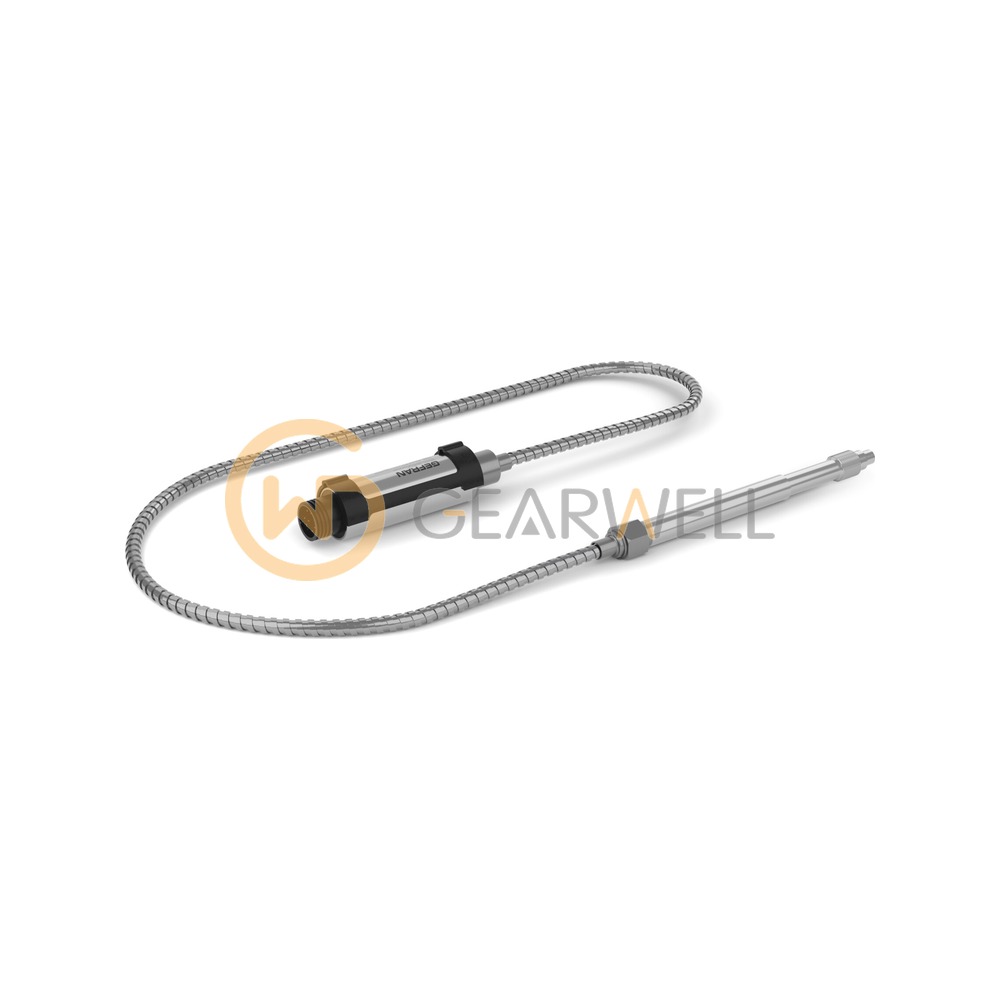

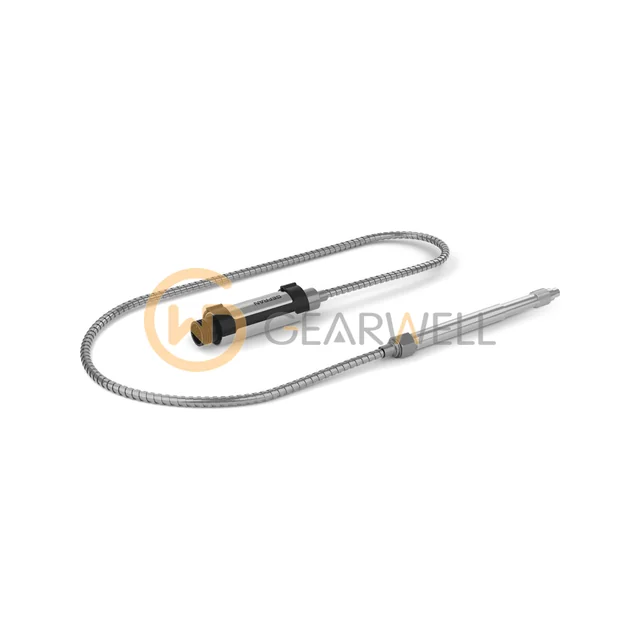

GEFRAN F040606 W30-6-M-B01M-4-4-0 Melt Pressure Transducer
- Brand
- GEFRAN
- Model
- F040606
- GEARWELL SKU
- GWP-000014017
- Category
- Pressure, Flow & Temperature
Key specifications
- Series
- W3
- Version
- Rigid stem
- Output signal
- 3.33 mV/V
- Accuracy class
- <±0.5% FSO (M)
- Process thread
- M18x1.5
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GEFRAN F040606 W30-6-M-B01M-4-4-0 Melt Pressure Transducer |
|---|---|
| Brand | GEFRAN |
| Model | F040606 |
| Category | Pressure, Flow & Temperature |
| Series | W3 |
| Version | Rigid stem |
| Output signal | 3.33 mV/V |
| Accuracy class | <±0.5% FSO (M) |
| Process thread | M18x1.5 |
| Type designation | W30-6-M-B01M-4-4-0 2130X000X00 |
| Measurement range | 0-1000 bar |
| Electrical connection | 6-pin connector VPT07RA10-6PT2 |
| Rigid stem / flexible length | 153 mm (6 in) / None |
| Product ID (Gefran order number) | F040606 |
