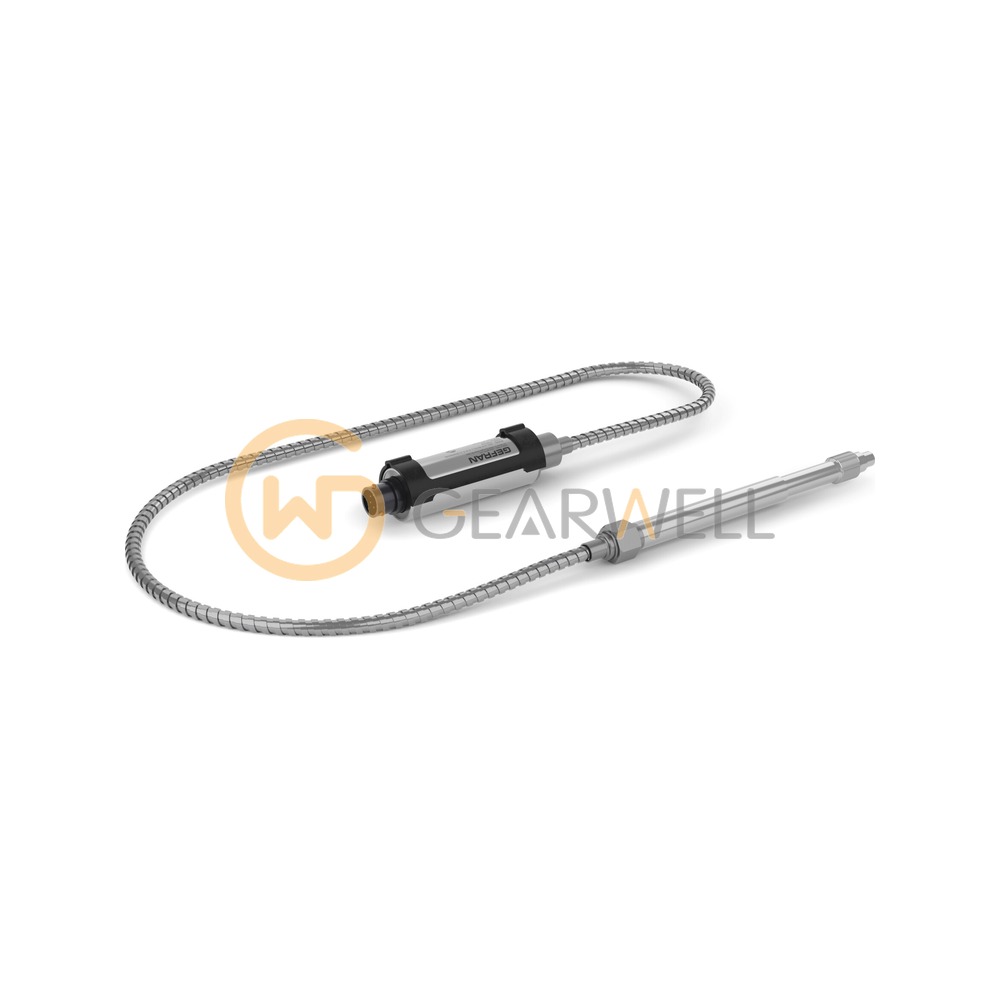

GEFRAN F047892 KN3-6-M-B35D-1-0-L-I Melt Pressure Transmitter
- Brand
- GEFRAN
- Model
- F047892
- GEARWELL SKU
- GWP-000014023
- Category
- Pressure, Flow & Temperature
Key specifications
- Series
- KN
- Version
- Exposed capillary
- Code suffix "I"
- as collected; not listed in the official model-number table
- Accuracy class
- <±0.5% FSO (M)
- Process thread
- 1/2-20 UNF
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GEFRAN F047892 KN3-6-M-B35D-1-0-L-I Melt Pressure Transmitter |
|---|---|
| Brand | GEFRAN |
| Model | F047892 |
| Category | Pressure, Flow & Temperature |
| Series | KN |
| Version | Exposed capillary |
| Code suffix "I" | as collected; not listed in the official model-number table |
| Accuracy class | <±0.5% FSO (M) |
| Process thread | 1/2-20 UNF |
| Type designation | KN3-6-M-B35D-1-0-L-I 2130X000X00 |
| Measurement range | 0-350 bar |
| Electrical connection | 6-pin connector VPT07RA10-6PT2 |
| Stem / flexible length codes | 0 / L (as in the official type designation) |
| Product ID (Gefran order number) | F047892 |
