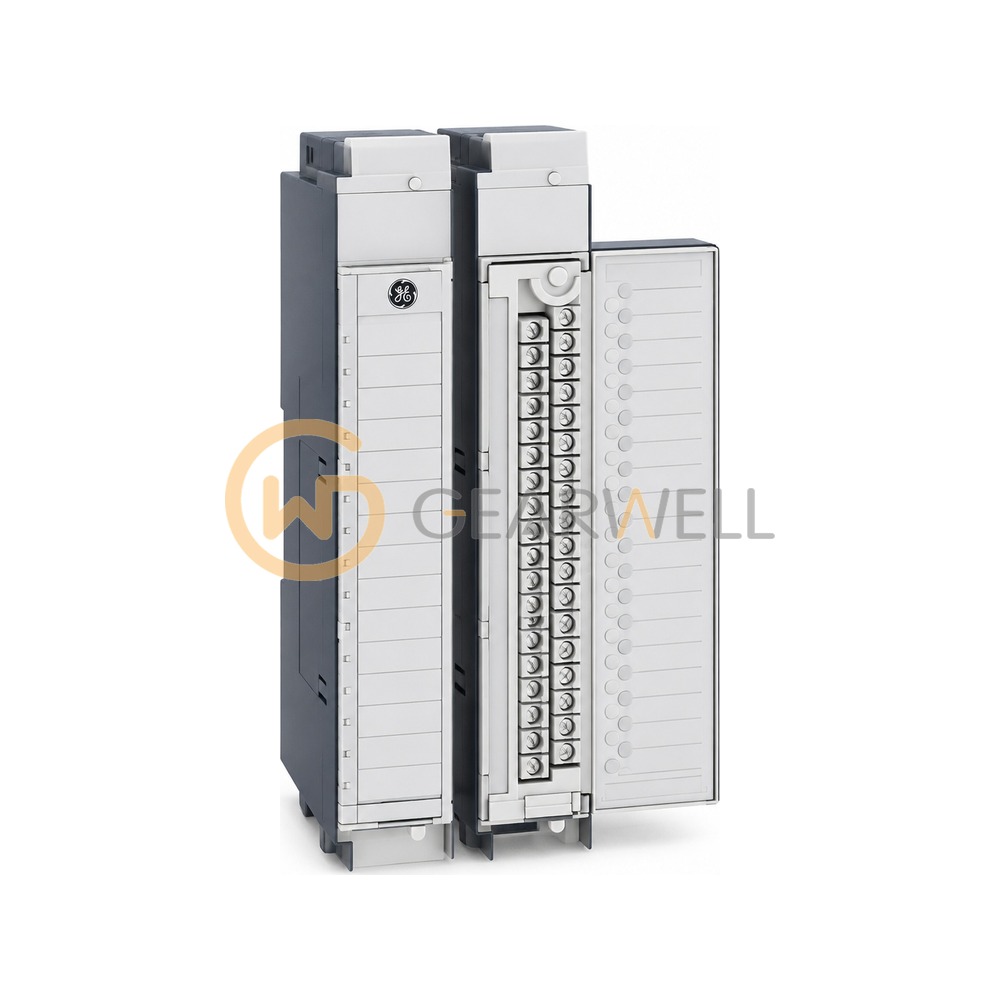

GE IC697MDL240 Series 90-70 120 VAC Isolated 16-Point Input Module
- Brand
- GE
- Model
- IC697MDL240
- GEARWELL SKU
- GWP-000034335
- Category
- PLCs & I/O
Key specifications
- Evidence
- GE Fanuc GFK-0375E, Series 90-70 Data Sheet Manual GFK-0600F (hosted at qualitrol.com)
- Isolation
- 1500 V RMS input to backplane; 500 V RMS between inputs
- Filter delay
- 20 ms typical
- Input current
- 10 mA typical at rated voltage
- Rated voltage
- 120 VAC, 60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC697MDL240 Series 90-70 120 VAC Isolated 16-Point Input Module |
|---|---|
| Brand | GE |
| Model | IC697MDL240 |
| Category | PLCs & I/O |
| Evidence | GE Fanuc GFK-0375E, Series 90-70 Data Sheet Manual GFK-0600F (hosted at qualitrol.com) |
| Isolation | 1500 V RMS input to backplane; 500 V RMS between inputs |
| Filter delay | 20 ms typical |
| Input current | 10 mA typical at rated voltage |
| Rated voltage | 120 VAC, 60 Hz |
| Catalog number | IC697MDL240 |
| On-state voltage | 75 to 132 VAC |
| Inputs per module | 16 individually isolated |
| Current from 5 V bus | 0.25 A |
