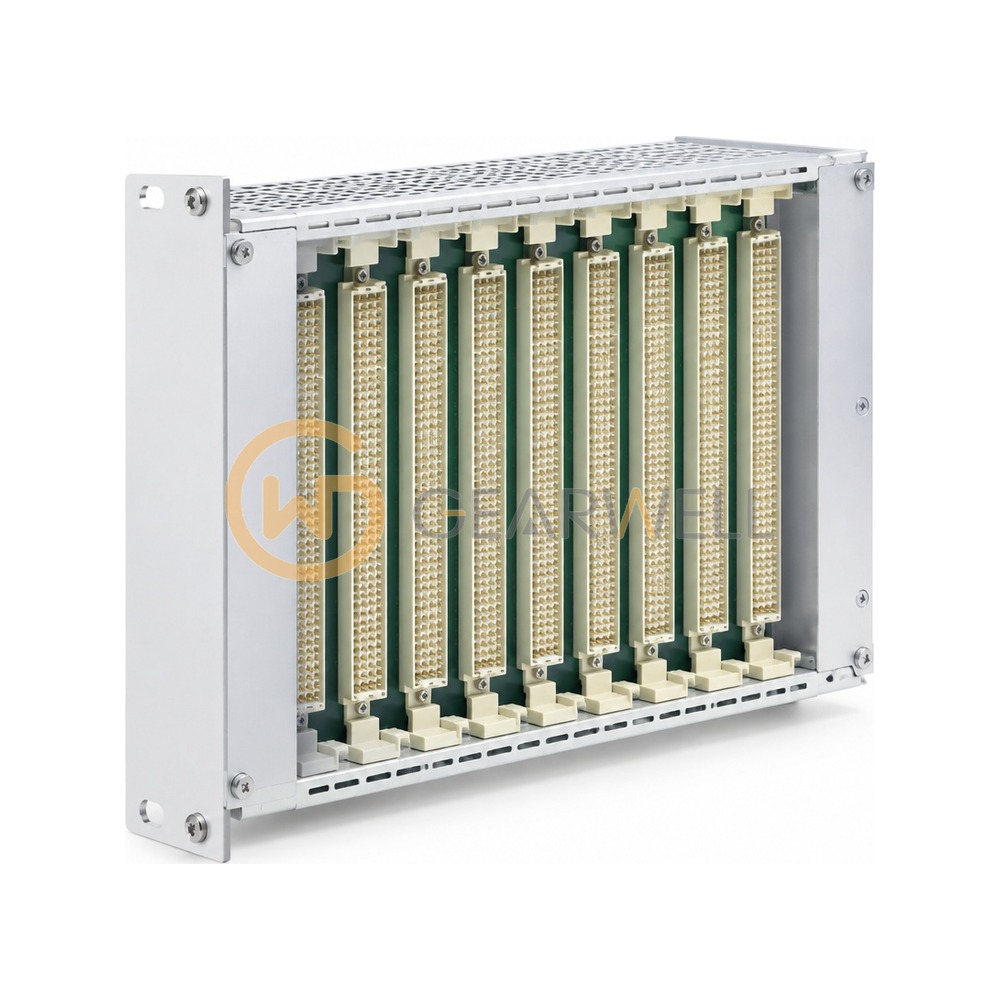

GE IC697CHS790D Series 90-70 9-Slot Rear-Mount Rack
- Brand
- GE
- Model
- IC697CHS790D
- GEARWELL SKU
- GWP-000026607
- Category
- PLCs & I/O
Key specifications
- Evidence
- GE Fanuc GFK-0079K (hosted at qualitrol.com)
- Mounting
- rear mount, 10 in (254 mm) deep enclosure
- Number of slots
- 9, plus power supply slot
- Revision suffix
- D (GE data sheet lists IC697CHS790D as the rack version required for standalone power supplies IC697PWR721/722/731/732)
- Maximum 5 V current
- 20 A with 100 W supply; 11 A (55 W); 18 A (90 W 24/48 VDC)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC697CHS790D Series 90-70 9-Slot Rear-Mount Rack |
|---|---|
| Brand | GE |
| Model | IC697CHS790D |
| Category | PLCs & I/O |
| Evidence | GE Fanuc GFK-0079K (hosted at qualitrol.com) |
| Mounting | rear mount, 10 in (254 mm) deep enclosure |
| Number of slots | 9, plus power supply slot |
| Revision suffix | D (GE data sheet lists IC697CHS790D as the rack version required for standalone power supplies IC697PWR721/722/731/732) |
| Maximum 5 V current | 20 A with 100 W supply; 11 A (55 W); 18 A (90 W 24/48 VDC) |
| Rack identification | four jumpers behind rack power supply |
| Dimensions (H x W x D) | 283 x 483 x 190 mm |
