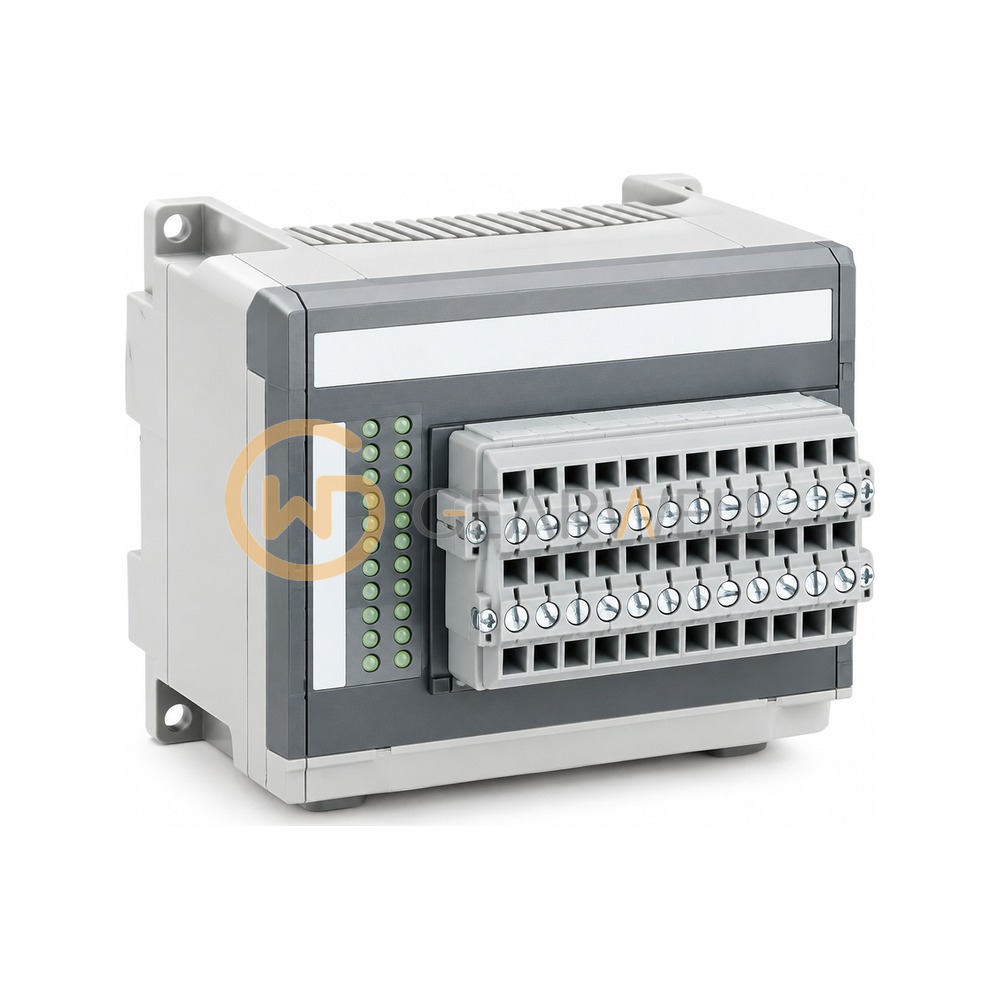

GE IC660BBD022 Genius 24VDC 16-Circuit Source I/O Block
- Brand
- GE
- Model
- IC660BBD022
- GEARWELL SKU
- GWP-000034254
- Category
- PLCs & I/O
Key specifications
- Weight
- 1.8 kg
- Circuits
- 16, each input, tristate input or output
- Evidence
- GE Fanuc GFK-0043F 16-Circuit Source/Sink I/O Blocks datasheet (hosted at qualitrol.com)
- Catalog number
- IC66*BBD022 (terminal assembly IC66*TBD022)
- Size (H x W x D)
- 22.44 x 9.05 x 11.23 cm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC660BBD022 Genius 24VDC 16-Circuit Source I/O Block |
|---|---|
| Brand | GE |
| Model | IC660BBD022 |
| Category | PLCs & I/O |
| Weight | 1.8 kg |
| Circuits | 16, each input, tristate input or output |
| Evidence | GE Fanuc GFK-0043F 16-Circuit Source/Sink I/O Blocks datasheet (hosted at qualitrol.com) |
| Catalog number | IC66*BBD022 (terminal assembly IC66*TBD022) |
| Size (H x W x D) | 22.44 x 9.05 x 11.23 cm |
| Operating voltage | 18-30 VDC (24 V block) |
| Block output current | 15 A at 35 °C |
| Operating temperature | 0 to +60 °C |
| Block-to-block isolation | 1500 V |
| Output current per circuit | 2 (steady state) A |
