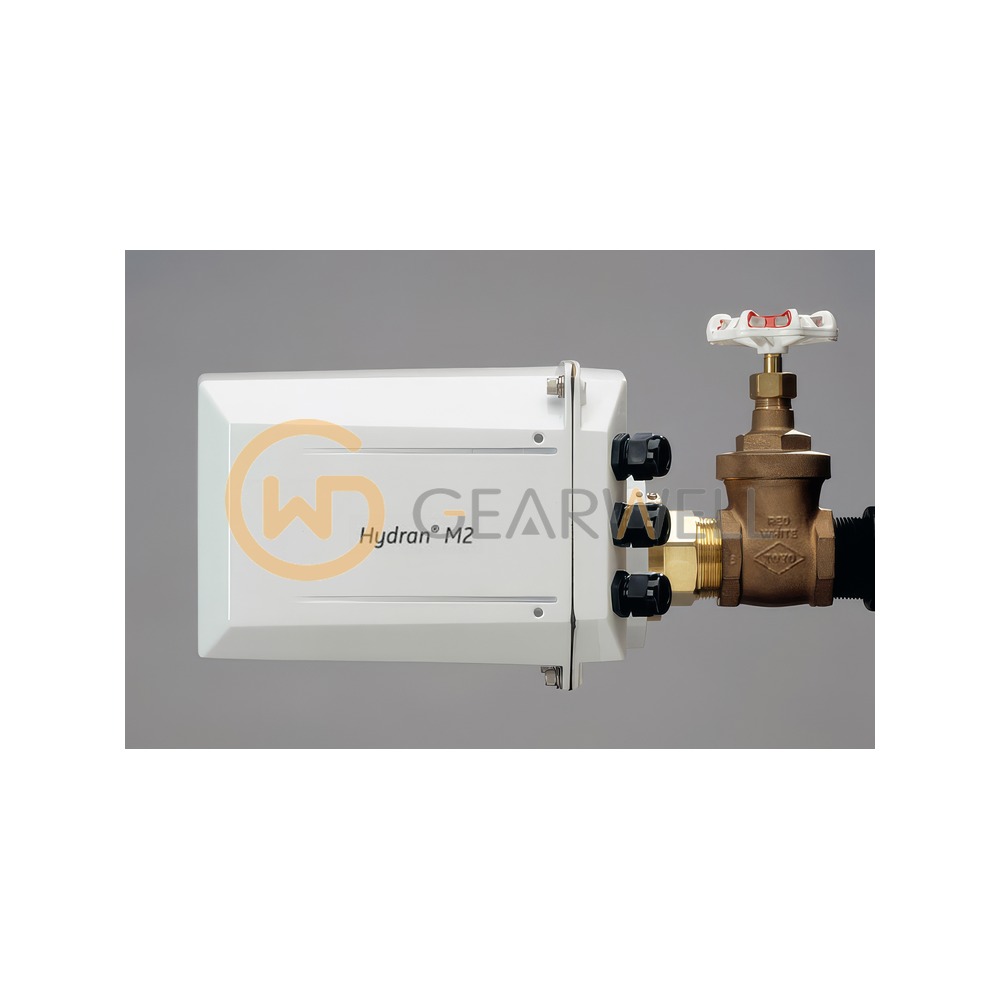

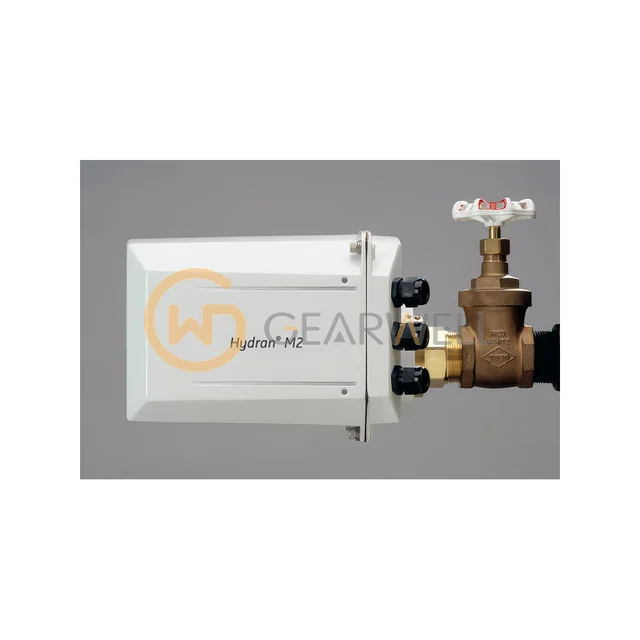

GE HYDRAN M2 Hydran Transformer DGA and Moisture Monitor
- Brand
- GE
- Model
- HYDRAN M2
- GEARWELL SKU
- GWP-000014560
- Category
- Test & Measurement
Key specifications
- Enclosure
- NEMA 4X, IP56
- Dimensions
- 315 x 219 x 196 mm
- Alarm relays
- 5 dry contacts (SPDT), 3 A @ 250 Vac
- Gas accuracy
- ±10% of reading ±25 ppm (H2 equivalent)
- Power supply
- 90-132 Vac or 180-264 Vac, 47-63 Hz, 650 VA max
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE HYDRAN M2 Hydran Transformer DGA and Moisture Monitor |
|---|---|
| Brand | GE |
| Model | HYDRAN M2 |
| Category | Test & Measurement |
| Enclosure | NEMA 4X, IP56 |
| Dimensions | 315 x 219 x 196 mm |
| Alarm relays | 5 dry contacts (SPDT), 3 A @ 250 Vac |
| Gas accuracy | ±10% of reading ±25 ppm (H2 equivalent) |
| Power supply | 90-132 Vac or 180-264 Vac, 47-63 Hz, 650 VA max |
| Communications | RS-232, RS-485; Hydran, Modbus, DNP 3.0 or IEC 61850 |
| Moisture range | 0-100 %RH |
| Installed weight | 7.5 kg |
| Gas measurement range | 25-2000 ppm (H2 equivalent) |
| Operating temperature | -40 to +55 °C |
