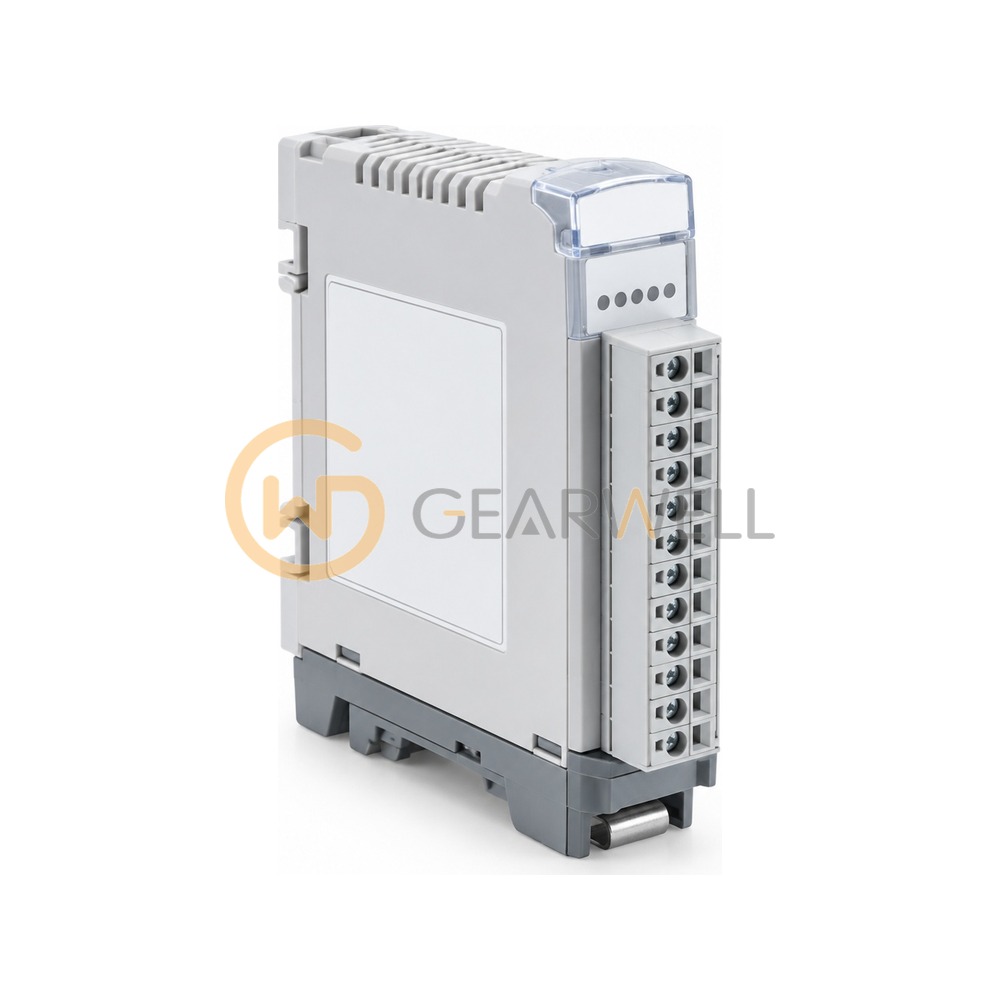

GE IC200ALG230 VersaMax Analog Input Module
- Brand
- GE
- Model
- IC200ALG230
- GEARWELL SKU
- GWP-000034247
- Category
- PLCs & I/O
Key specifications
- Channels
- 4 single-ended, one group
- Evidence
- GE Fanuc GFK-1504K VersaMax Modules, Power Supplies and Carriers User's Manual (hosted at qualitrol.com)
- Isolation
- 250 VAC continuous; 1500 VAC for 1 minute (user input to logic)
- Resolution
- 12-bit
- Input ranges
- +/-10 VDC (default), 0-10 VDC, 4-20 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC200ALG230 VersaMax Analog Input Module |
|---|---|
| Brand | GE |
| Model | IC200ALG230 |
| Category | PLCs & I/O |
| Channels | 4 single-ended, one group |
| Evidence | GE Fanuc GFK-1504K VersaMax Modules, Power Supplies and Carriers User's Manual (hosted at qualitrol.com) |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute (user input to logic) |
| Resolution | 12-bit |
| Input ranges | +/-10 VDC (default), 0-10 VDC, 4-20 mA |
| Input impedance | 126 kOhm max (voltage), 200 Ohm max (current) |
| Accuracy at 25 °C | +/-0.3% typical, +/-0.5% max of full scale |
| Backplane current | 125 mA max at 5 V |
| Update rate per module | 0.4 ms |
