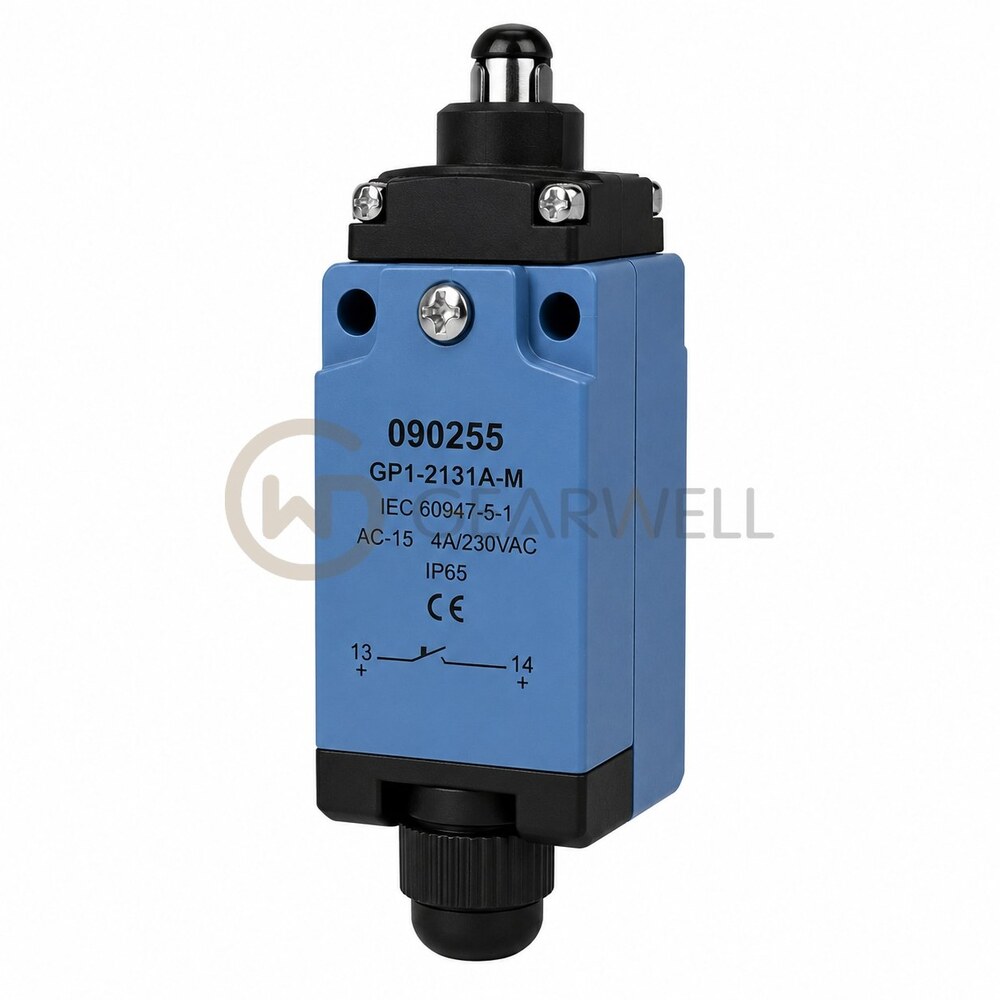

EUCHNER GP1-2131A-M Industrial Sensor
- Brand
- EUCHNER
- Model
- GP1-2131A-M
- GEARWELL SKU
- GWP-000001672
- Category
- Industrial Automation Parts
Key specifications
- Contact
- Silver alloy, gold flashed
- Actuating force
- 10 N
- Extraction force
- 20 N
- Approach direction
- A
- Actuation frequency
- max. 6700 1/h
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The EUCHNER GP1-2131A-M is a GP series electromechanical safety switch operated by a separately ordered actuator, with an approach direction that can be adjusted in 90° steps. Slow-action switching element 2131 provides 3 positively driven contacts plus 1 NO contact for the door position, rated AC-15 4 A 230 V and DC-13 4 A 24 V with a 4 A gG fuse. The reinforced thermoplastic housing has 3 cable entries M20 x 1.5 and IP67 protection, and the switch operates from -20 to 80 °C. Extraction force is 20 N and the maximum approach speed 20 m/min.
Technical reference
| Product name | EUCHNER GP1-2131A-M Industrial Sensor |
|---|---|
| Brand | EUCHNER |
| Model | GP1-2131A-M |
| Category | Industrial Automation Parts |
| Contact | Silver alloy, gold flashed |
| Actuating force | 10 N |
| Extraction force | 20 N |
| Approach direction | A |
| Actuation frequency | max. 6700 1/h |
| Ambient temperature | -20 ... 80 °C |
| Degree of protection | IP67 |
| Connection cross section | 0.34 ... 1.5 mm² |
