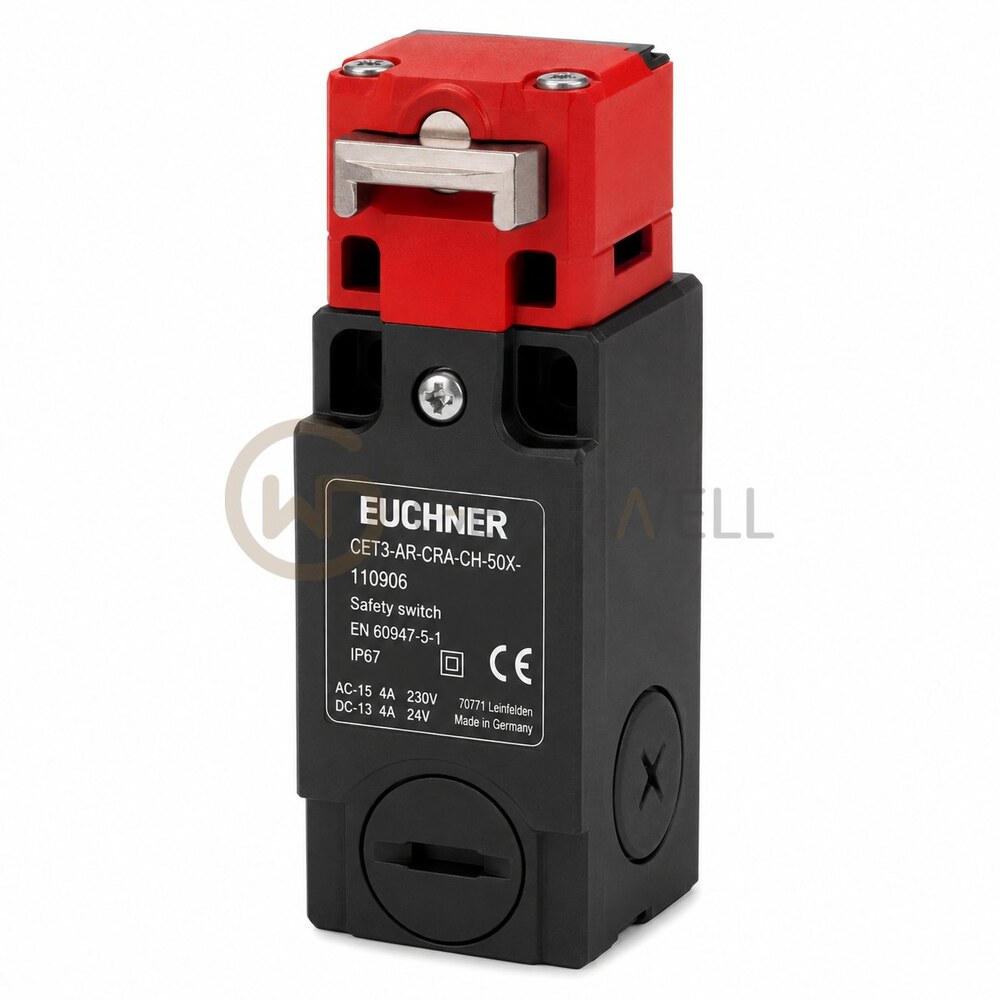

EUCHNER CET3-AR-CRA-CH-50X-SG-110906 Safety Switch
- Brand
- EUCHNER
- Model
- CET3-AR-CRA-CH-50X-SG-110906
- GEARWELL SKU
- GWP-000001668
- Category
- Industrial Automation Parts
Key specifications
- Gross weight
- 1,263kg
- Connection type
- 2 plug connectors M12, 5- and 8-pin
- both safety outputs
- max. 10 ms
- Locking force F max
- 6500 N
- Degree of protection
- IP67 (In the inserted and screwed tight state)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The EUCHNER CET3-AR-CRA-CH-50X-SG-110906 is a CET-AR transponder-coded safety switch with guard locking, order no. 110906, working on the closed-circuit current principle: spring force locks the guard and the 24 V DC solenoid unlocks it (power to unlock). Multicode evaluation accepts any suitable CET actuator, and two redundant semiconductor safety outputs make it suitable for category 4 / PL e according to EN 13849-1 and SIL 3 according to EN IEC 62061, with monitoring outputs OUT for guard locking and OUT D for the door position. Enable inputs allow series wiring, and connection is by two M12 plug connectors, 5- and 8-pin. Locking force is 6500 N (F max) and 5000 N (F Zh), and the die-cast aluminum housing is rated IP67 for -20 to 55 °C. The actuator is ordered separately.
Technical reference
| Product name | EUCHNER CET3-AR-CRA-CH-50X-SG-110906 Safety Switch |
|---|---|
| Brand | EUCHNER |
| Model | CET3-AR-CRA-CH-50X-SG-110906 |
| Category | Industrial Automation Parts |
| Gross weight | 1,263kg |
| Connection type | 2 plug connectors M12, 5- and 8-pin |
| both safety outputs | max. 10 ms |
| Locking force F max | 6500 N |
| Degree of protection | IP67 (In the inserted and screwed tight state) |
| EMC protection requirements | Acc. to EN IEC 60947-5-3 |
| external (operating voltage U B ) | 0.25 ... 8 A |
| external (solenoid operating voltage U CM ) | 0.5 ... 8 A |
