EUCHNER C-M12F05-05X034PU05.0-M12M05-119932 Connection Cable
- Brand
- EUCHNER
- Model
- C-M12F05-05X034PU05.0-M12M05-119932
- GEARWELL SKU
- GWP-000012833
- Category
- Terminals, Cables & Connectors
Key specifications
- Sheath
- PUR, black, halogen-free
- Conductors
- 5 x 0.34 mm²
- Cable length
- 5 m
- Order number
- 119932
- Rated voltage
- 60 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

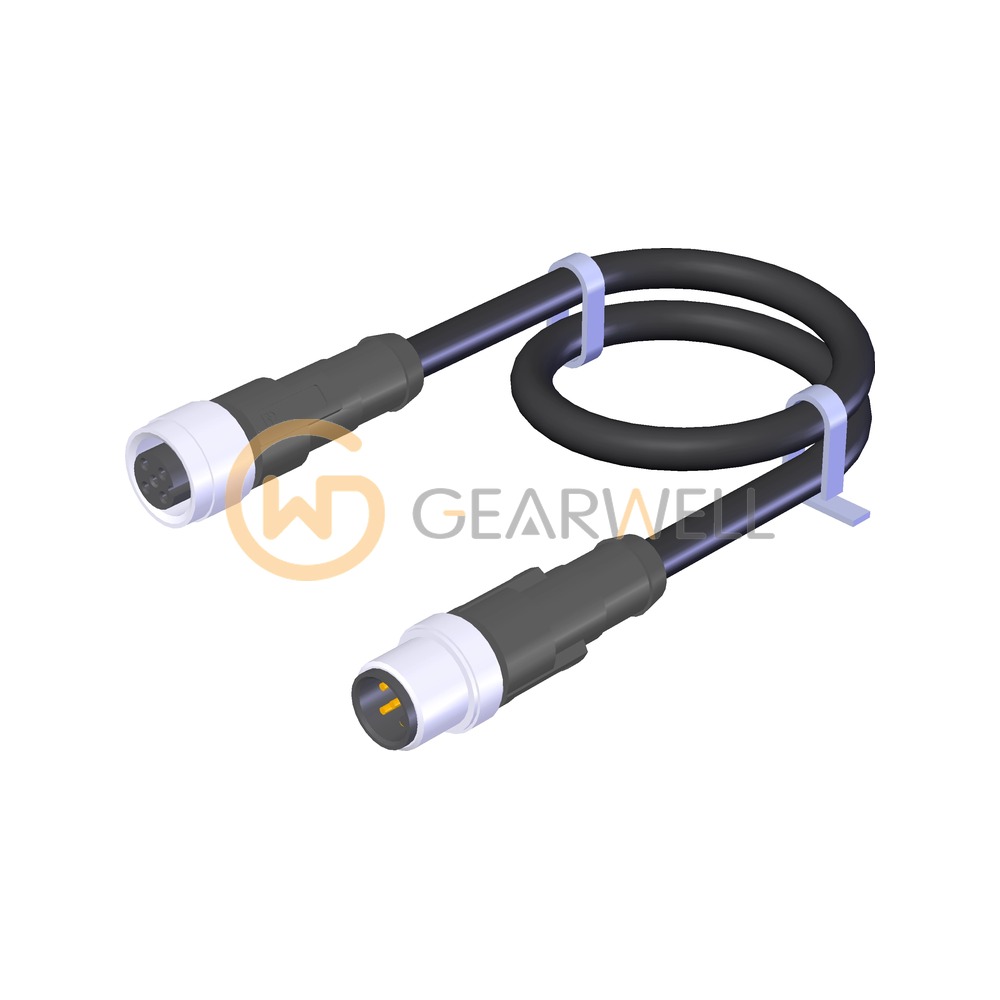

The EUCHNER C-M12F05-05X034PU05,0-M12M05-119932 is a connecting cable with a straight M12x1 female plug at one end and a straight M12x1 male plug at the other, both 5-pin with screw locking. The black PUR cable is 5 m long and about 5 mm in diameter, with 5 conductors of 0.34 mm², and it is halogen-free, flame retardant and suitable for drag chains. It is rated 60 V DC and 4 A at 25 °C, the connectors reach IP67 when plugged in, and the cable can be used from -25 to 80 °C.
Technical reference
| Product name | EUCHNER C-M12F05-05X034PU05.0-M12M05-119932 Connection Cable |
|---|---|
| Brand | EUCHNER |
| Model | C-M12F05-05X034PU05.0-M12M05-119932 |
| Category | Terminals, Cables & Connectors |
| Sheath | PUR, black, halogen-free |
| Conductors | 5 x 0.34 mm² |
| Cable length | 5 m |
| Order number | 119932 |
| Rated voltage | 60 V DC |
| Connection 1 / 2 | M12 female plug / M12 plug connector, 5-pin, straight |
| Degree of protection | IP67 (inserted) |
| Drag chain suitability | Yes |
| Nominal current at 25 °C | 4 A |
