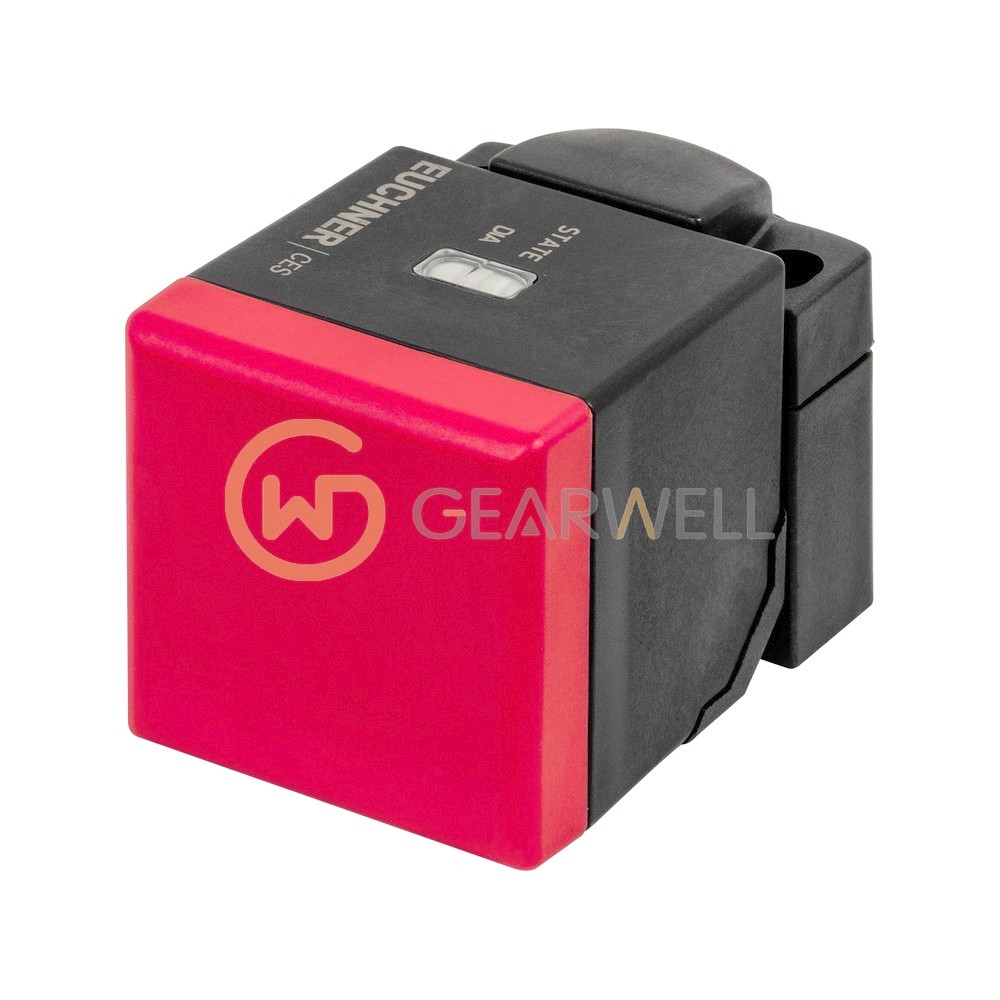

Euchner CES-AP-C01-CH-SA-100250 CES-AP Transponder-Coded Safety Switch
- Brand
- EUCHNER
- Model
- CES-AP-C01-CH-SA-100250
- GEARWELL SKU
- GWP-000012159
- Category
- Machine Safety & Vision
Key specifications
- Coding
- Multicode (RFID transponder)
- Order no.
- 100250
- Connection
- M12 plug connector, 8-pin
- Safety outputs
- 2 semiconductor outputs OA/OB, p-switching
- Housing material
- Plastic, PBT
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The EUCHNER CES-AP-C01-CH-SA-100250 is a CES-AP transponder-coded non-contact safety switch with multicode evaluation, order no. 100250, so any suitable CES actuator is detected. Two redundant semiconductor safety outputs with internal monitoring make it suitable for category 4 / PL e according to EN 13849-1 and SIL 3 according to EN IEC 62061, and a DIA output reports diagnostics. It runs on 24 V DC, connects through an 8-pin M12 plug connector, and has one active face that can be repositioned in 5 directions. The PBT plastic housing is rated IP67 for -20 to 55 °C; with actuator CES-A-BBA-071840 the switch-on distance is 18 mm. The actuator is not included.
Technical reference
| Product name | Euchner CES-AP-C01-CH-SA-100250 CES-AP Transponder-Coded Safety Switch |
|---|---|
| Brand | EUCHNER |
| Model | CES-AP-C01-CH-SA-100250 |
| Category | Machine Safety & Vision |
| Coding | Multicode (RFID transponder) |
| Order no. | 100250 |
| Connection | M12 plug connector, 8-pin |
| Safety outputs | 2 semiconductor outputs OA/OB, p-switching |
| Housing material | Plastic, PBT |
| Operating voltage | 24 V DC -15% ... +15% |
| Order number note | 041198 (seller title) is not an Euchner order number for this item; official order no. is 100250 |
| Ambient temperature | -20 ... 55 °C |
| Degree of protection | IP67 |
| Safety classification | Category 4 / PL e, SIL 3 |
