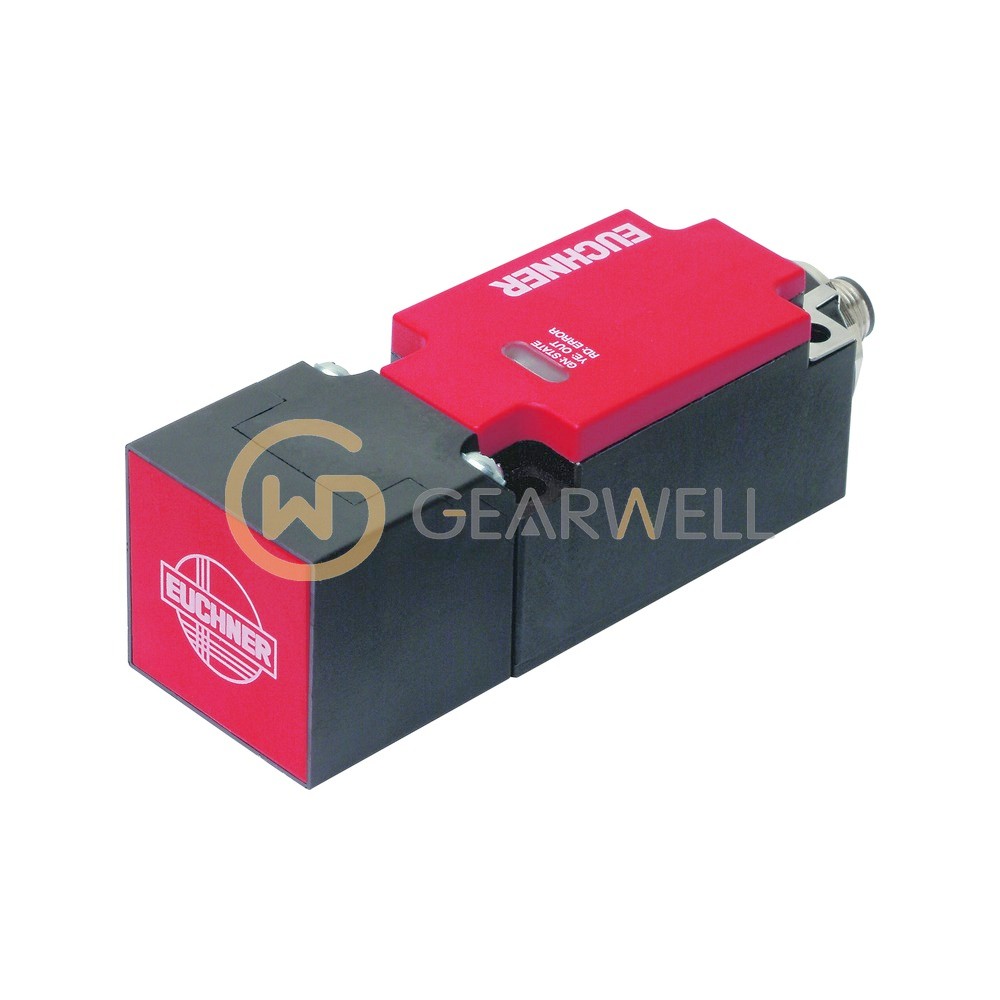

Euchner CES-A-W5H-01 CES Non-Contact Safety Switch with Evaluation
- Brand
- EUCHNER
- Model
- CES-A-W5H-01
- GEARWELL SKU
- GWP-000012160
- Category
- Machine Safety & Vision
Key specifications
- Coding
- Multicode
- Order no.
- 097525
- Connection
- M12 plug connector, 8-pin
- Safety outputs
- 2 semiconductor outputs LA/LB, p-switching
- Dimensions (LxWxH)
- 131 x 40 x 40 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The EUCHNER CES-A-W5H-01 is a CES-A transponder-coded non-contact safety switch with multicode evaluation, so every suitable actuator is detected. Two redundant p-switching semiconductor safety outputs LA and LB rated DC-13 24V 400mA and a semiconductor monitoring output are provided, and the switch runs on 24 V DC with a current consumption of 80 mA. Connection is by an 8-pin M12 plug connector on a 131x40x40 PBT plastic housing with IP65/IP67 protection and an ambient range of -20 to 55 °C. It is suitable for category 4 / PL e, and with actuator CES-A-BBA the switch-on distance is 20 mm and the secured switch-off distance 40 mm.
Technical reference
| Product name | Euchner CES-A-W5H-01 CES Non-Contact Safety Switch with Evaluation |
|---|---|
| Brand | EUCHNER |
| Model | CES-A-W5H-01 |
| Category | Machine Safety & Vision |
| Coding | Multicode |
| Order no. | 097525 |
| Connection | M12 plug connector, 8-pin |
| Safety outputs | 2 semiconductor outputs LA/LB, p-switching |
| Dimensions (LxWxH) | 131 x 40 x 40 mm |
| Operating voltage | 18 ... 24 ... 27 V DC |
| Order number note | 097572 (seller title) not found at Euchner; CES-A-W5H-01 is order no. 097525 |
| Ambient temperature | -20 ... 55 °C |
| Degree of protection | IP65/IP67 |
| Safety classification | Category 4 / PL e |
