EUCHNER 071840 Industrial Sensor
- Brand
- EUCHNER
- Model
- 071840
- GEARWELL SKU
- GWP-000002963
- Category
- Industrial Automation Parts
Key specifications
- Housing
- Plastic (PPS)
- Gross weight
- 0,023kg
- Power supply
- Inductive via read head
- Ambient temperature
- -25 ... 70 °C
- Storage temperature
- -25 ... 70 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

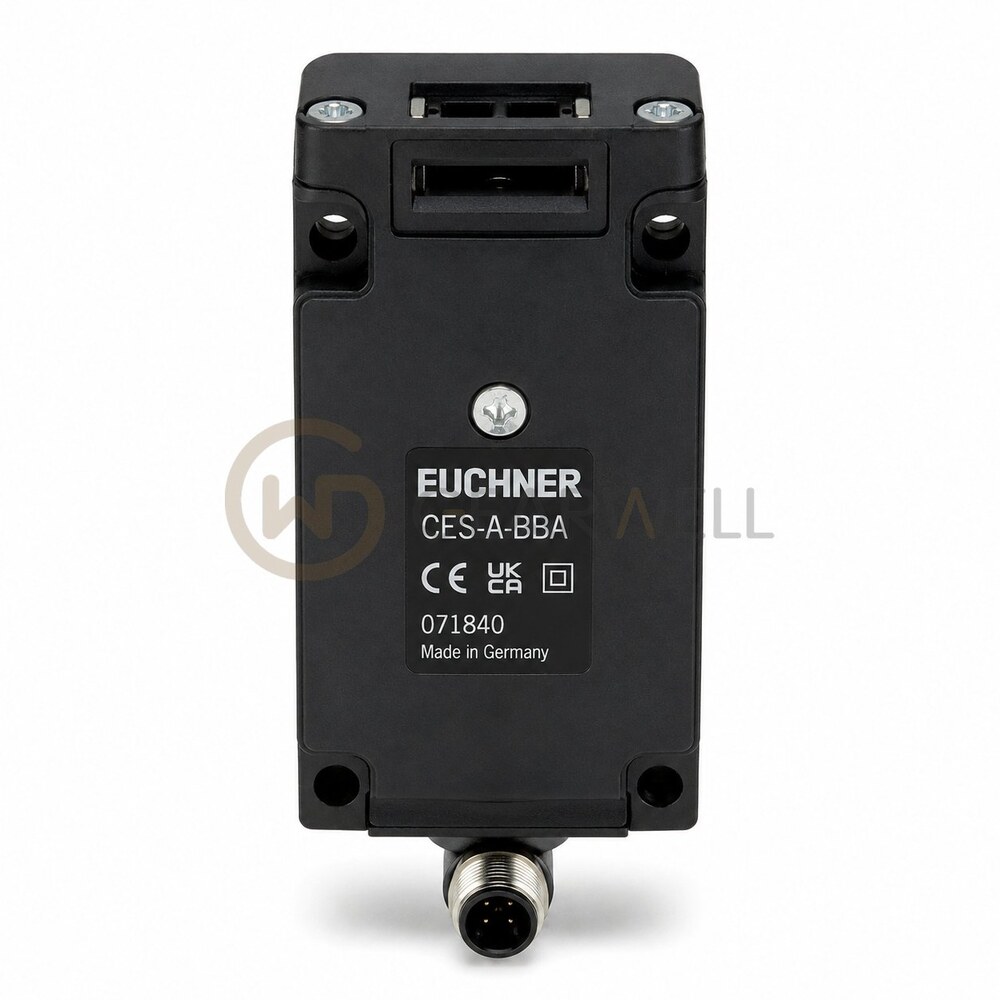

The EUCHNER CES-A-BBA-071840 is a cube-shaped CES-A-BBA transponder actuator measuring 42 x 25 mm, order no. 071840. It draws its power inductively from the read head, and two M4x14 safety screws are included. Mounted on metal, it gives a switch-on distance of 18 mm and a secured switch-off distance of 45 mm. The PPS plastic housing is rated IP65/IP67/IP69/IP69K for ambient temperatures of -25 to 70 °C.
Technical reference
| Product name | EUCHNER 071840 Industrial Sensor |
|---|---|
| Brand | EUCHNER |
| Model | 071840 |
| Category | Industrial Automation Parts |
| Housing | Plastic (PPS) |
| Gross weight | 0,023kg |
| Power supply | Inductive via read head |
| Ambient temperature | -25 ... 70 °C |
| Storage temperature | -25 ... 70 °C |
| Degree of protection | IP65/IP67/IP69/IP69K |
| Global Trade Item Number (GTIN) | 4047048000223 |
| Minimum distance for side approach direction | min. 4 mm |
