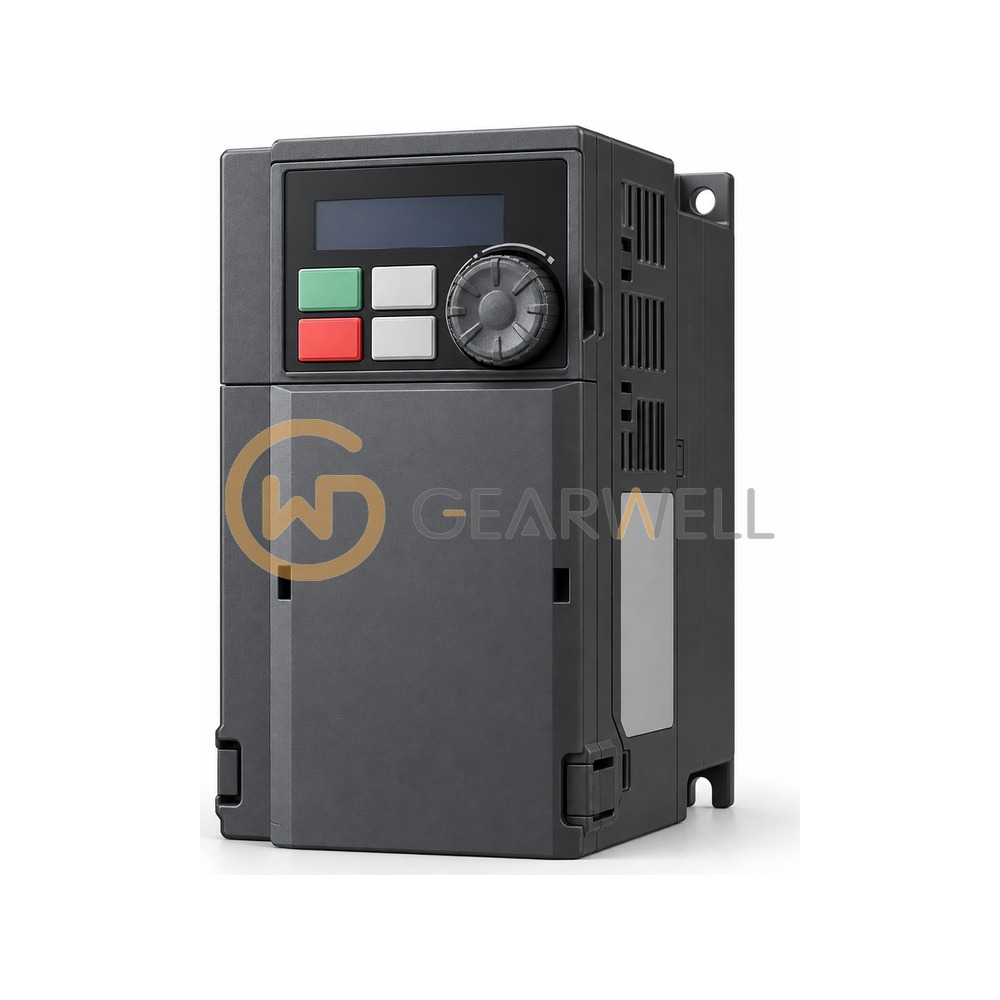

DELTA VFD7A5MH23ANSAA MH300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD7A5MH23ANSAA
- GEARWELL SKU
- GWP-000013183
- Category
- Variable Frequency Drives
Key specifications
- Frame
- B
- Size W x H (x D)
- 72 x 142 mm
- Built-in EMC filter
- No
- Applicable motor output
- 1.5 kW
- Rated voltage / frequency
- 3-phase AC 200 V ~ 240 V (-15% ~ +10%), 50 / 60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD7A5MH23ANSAA is a Delta MH300 series high performance compact AC motor drive for 230 V three-phase supply, sized for a 1.5 kW (2 HP) motor. The code VFD7A5MH23ANSAA stands for a rated output current of 7.5 A in heavy duty mode (150% for 60 seconds), an IP20 enclosure, no built-in EMC filter, integrated Safe Torque Off and the standard model type. Normal duty rated output current is 8 A, the supply range is 200 to 240 V at 50/60 Hz and the brake chopper is built in. The drive is housed in frame size B and uses forced air cooling by fan. MH300 drives run induction and permanent magnet motors with V/F, SVC and FOC control and an output range up to 599 Hz.
Technical reference
| Product name | DELTA VFD7A5MH23ANSAA MH300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD7A5MH23ANSAA |
| Category | Variable Frequency Drives |
| Frame | B |
| Size W x H (x D) | 72 x 142 mm |
| Built-in EMC filter | No |
| Applicable motor output | 1.5 kW |
| Rated voltage / frequency | 3-phase AC 200 V ~ 240 V (-15% ~ +10%), 50 / 60 Hz |
| Rated output current (Heavy Duty) | 7.5 A |
| Rated output current (Normal Duty) | 8 A |
