DELTA VFD4A2MH43ANSAA MH300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD4A2MH43ANSAA
- GEARWELL SKU
- GWP-000013155
- Category
- Variable Frequency Drives
Key specifications
- Cooling
- Forced air cooling
- IP rating
- IP20
- Frame size
- B1
- Built-in EMC filter
- No
- Input voltage class
- 460 V / 3-phase
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

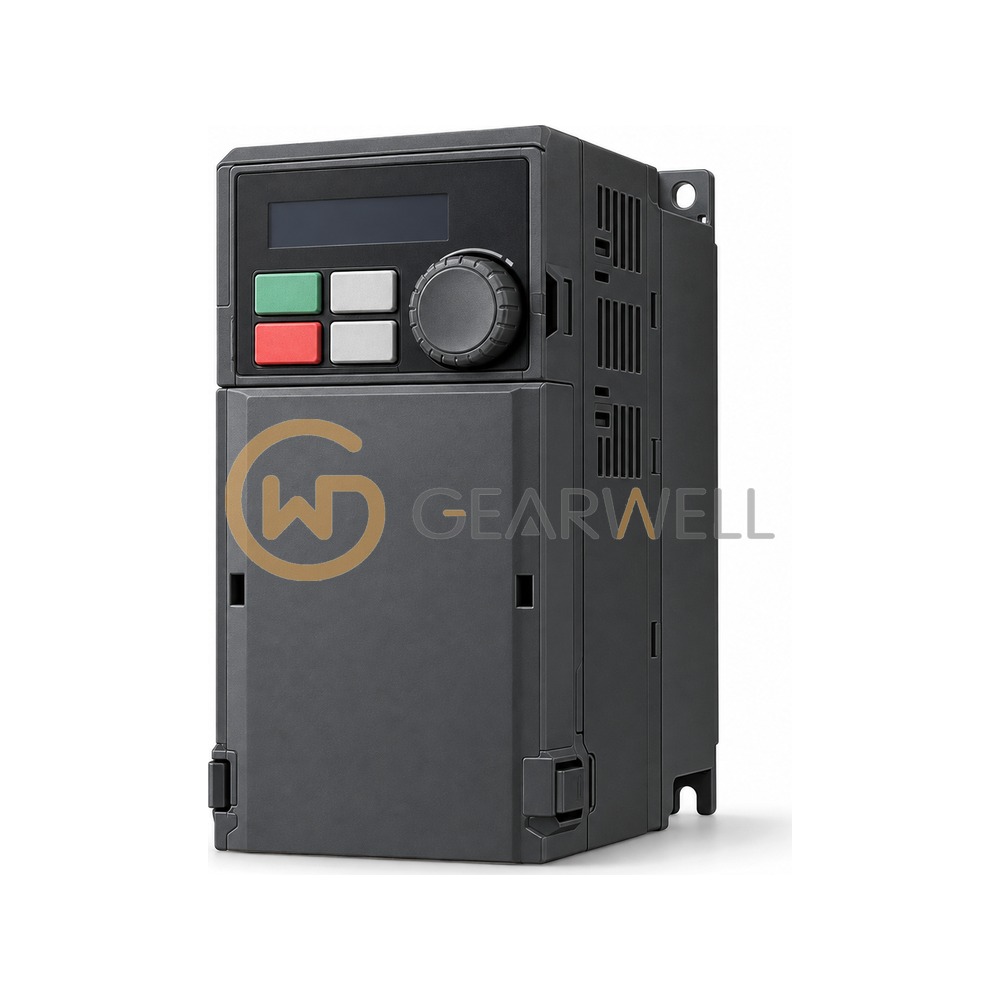

The Delta VFD4A2MH43ANSAA is a Delta MH300 series high performance compact AC motor drive for 460 V three-phase supply, sized for a 1.5 kW (2 HP) motor. The code VFD4A2MH43ANSAA stands for a rated output current of 4.2 A in heavy duty mode (150% for 60 seconds), an IP20 enclosure, no built-in EMC filter, integrated Safe Torque Off and the standard model type. The drive is housed in frame size B and uses forced air cooling by fan. MH300 drives run induction and permanent magnet motors with V/F, SVC and FOC control and an output range up to 599 Hz.
Technical reference
| Product name | DELTA VFD4A2MH43ANSAA MH300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD4A2MH43ANSAA |
| Category | Variable Frequency Drives |
| Cooling | Forced air cooling |
| IP rating | IP20 |
| Frame size | B1 |
| Built-in EMC filter | No |
| Input voltage class | 460 V / 3-phase |
| Max. applicable motor capacity | 2 HP |
| Drive rated output current (Heavy Duty) | 4.2 A |
