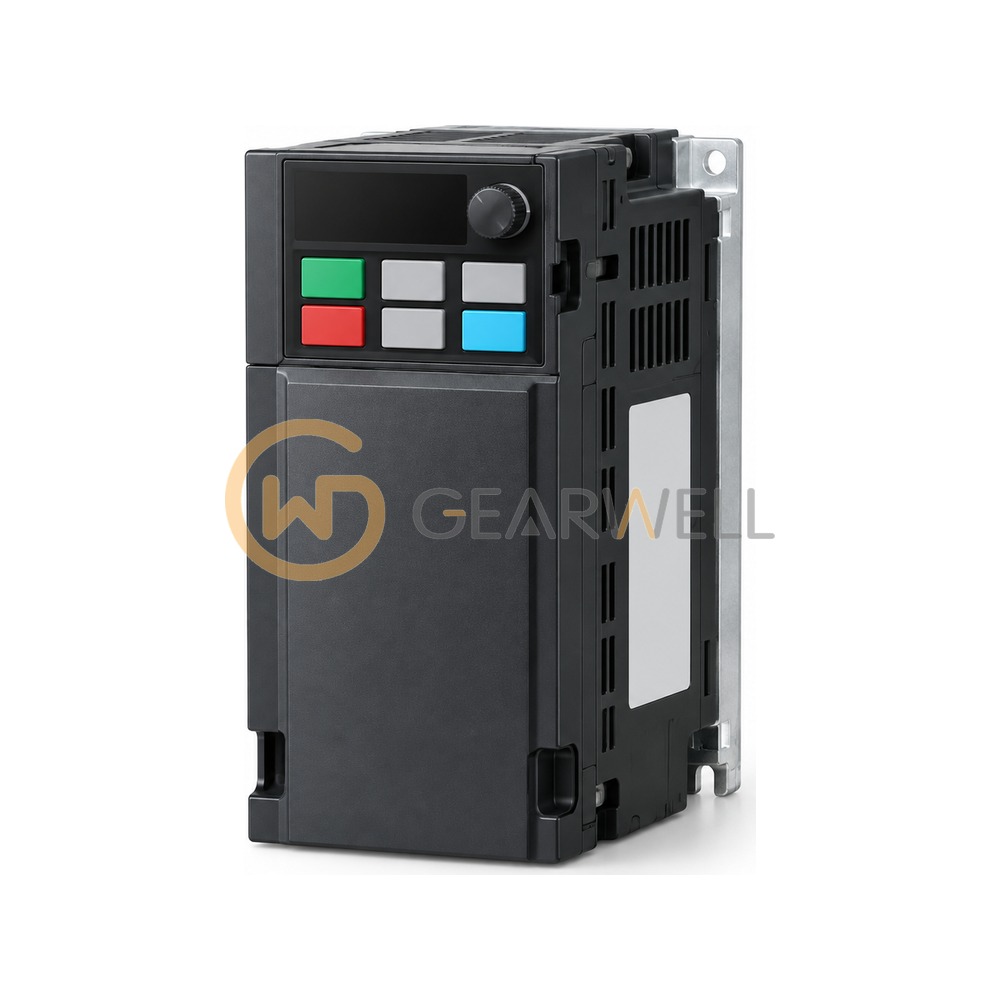

DELTA VFD4A2MS43AFSAA MS300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD4A2MS43AFSAA
- GEARWELL SKU
- GWP-000013156
- Category
- Variable Frequency Drives
Key specifications
- IP rating
- IP20
- Frame size
- B3
- Built-in EMC filter
- Yes
- Input voltage class
- 460 V / 3-phase
- Safe Torque Off (STO)
- Integrated
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD4A2MS43AFSAA is an MS300 series compact AC motor drive for a 460 V 3-phase supply, rated 4.2 A output current in heavy duty for motors up to 1.5 kW (2 HP), built in frame size B. It accepts 380 to 480 V at 50/60 Hz (mains range 323 to 528 V) and delivers 4.6 A in normal duty. The model code marks an IP20 enclosure, built-in EMC filter and integrated Safe Torque Off (STO). Heavy-duty overload is 150% of rated current for 60 seconds and 200% for 3 seconds, and output frequency goes up to 599 Hz; it controls induction and permanent magnet motors in V/F, SVC or sensorless FOC mode. A built-in brake chopper, a 2k-step PLC and Modbus are included.
Technical reference
| Product name | DELTA VFD4A2MS43AFSAA MS300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD4A2MS43AFSAA |
| Category | Variable Frequency Drives |
| IP rating | IP20 |
| Frame size | B3 |
| Built-in EMC filter | Yes |
| Input voltage class | 460 V / 3-phase |
| Safe Torque Off (STO) | Integrated |
| Max. applicable motor capacity | 2 HP |
| Drive rated output current (Heavy Duty) | 4.2 A |
