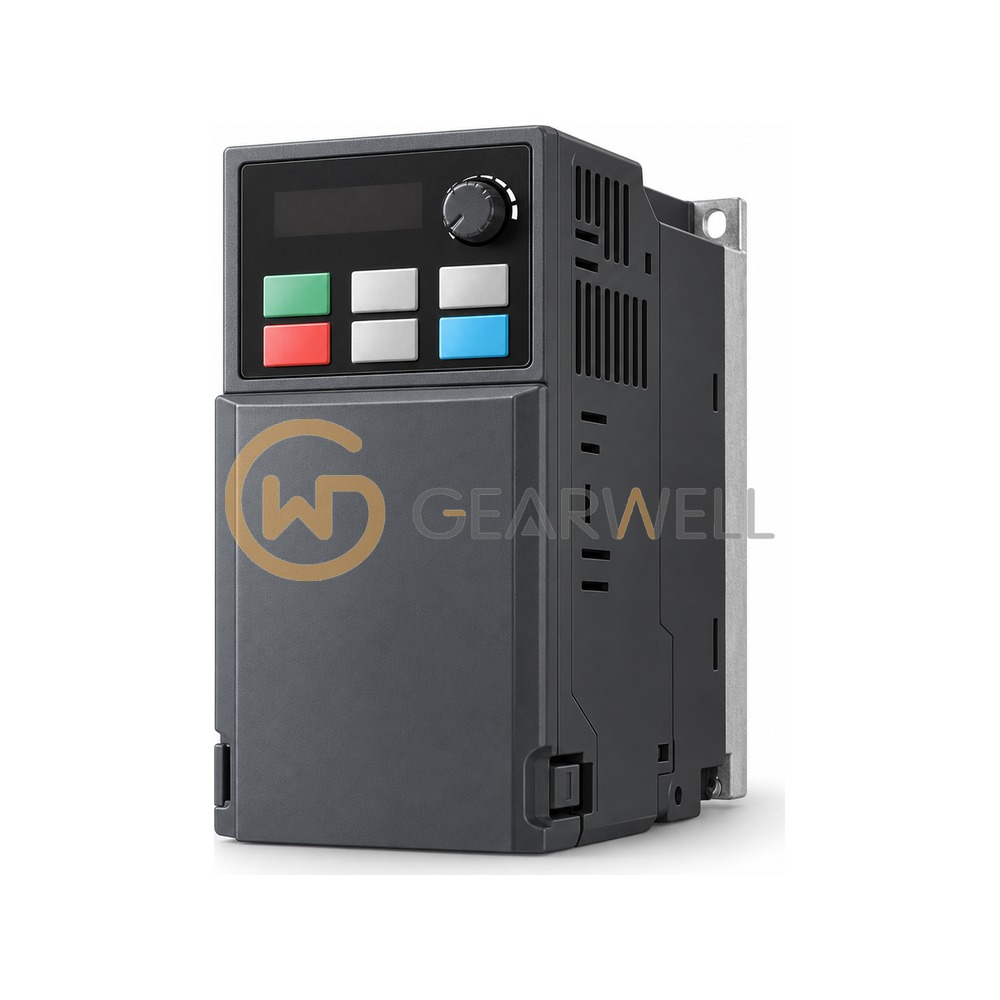

DELTA VFD4A2ME43ANNAA ME300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD4A2ME43ANNAA
- GEARWELL SKU
- GWP-000013154
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- B1
- Built-in STO
- No
- Built-in EMC filter
- No
- Input voltage class
- 460 V / 3-phase
- Max. applicable motor capacity
- 2 HP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD4A2ME43ANNAA is a Delta ME300 series basic compact AC motor drive for 460 V three-phase supply, sized for a 1.5 kW (2 HP) motor. The code VFD4A2ME43ANNAA stands for a rated output current of 4.2 A in heavy duty mode (150% for 60 seconds), an IP20 enclosure, no EMC filter, no Safe Torque Off and the standard model type. It comes in frame size B, has a built-in brake chopper and a carrier frequency of 2 to 15 kHz. ME300 drives run induction and permanent magnet motors with V/F and SVC control and provide Modbus as standard.
Technical reference
| Product name | DELTA VFD4A2ME43ANNAA ME300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD4A2ME43ANNAA |
| Category | Variable Frequency Drives |
| Frame size | B1 |
| Built-in STO | No |
| Built-in EMC filter | No |
| Input voltage class | 460 V / 3-phase |
| Max. applicable motor capacity | 2 HP |
| Drive rated output current (Heavy Duty) | 4.2 A |
