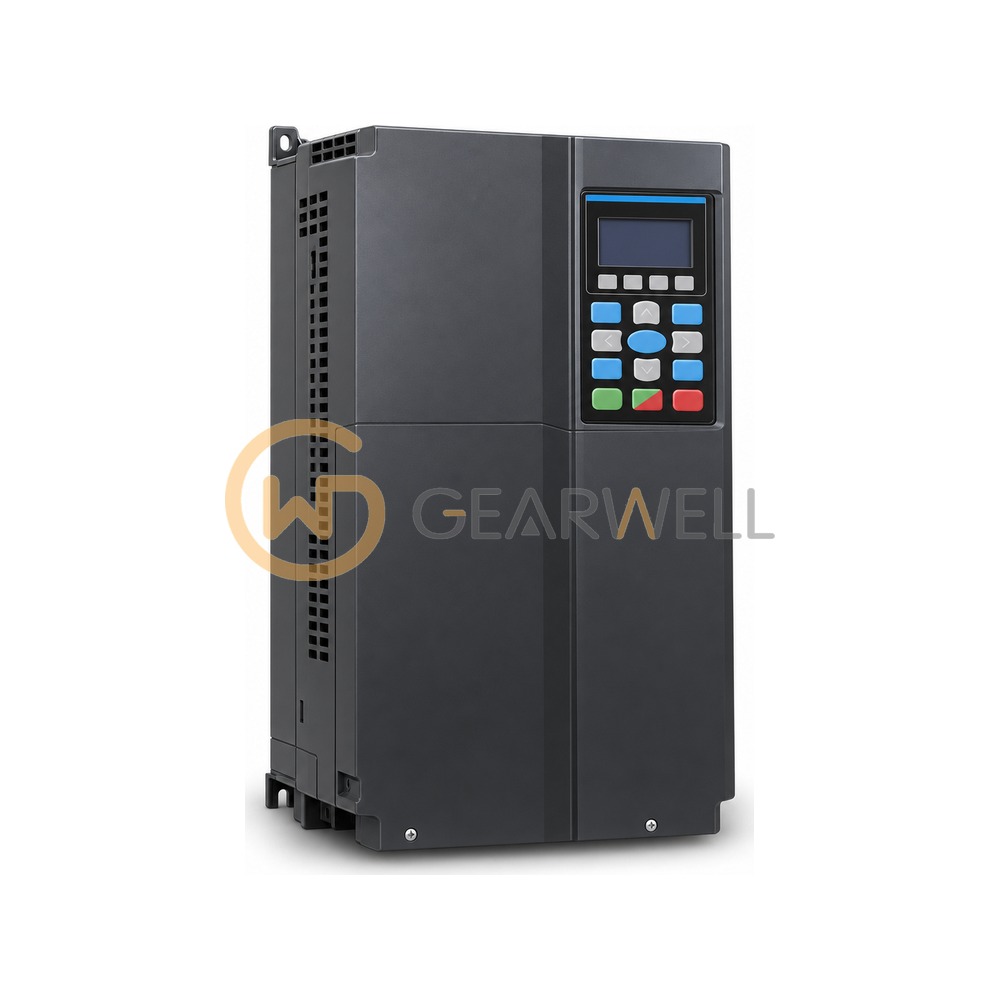

DELTA VFD450CP43S-00 CP2000 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD450CP43S-00
- GEARWELL SKU
- GWP-000013151
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- D0
- Rated voltage / frequency
- 3-phase, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz
- Rated output current (Light Duty)
- 91 A
- Rated output current (Normal Duty)
- 73 A
- Applicable motor output (Light Duty)
- 45 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD450CP43S-00 is a CP2000 series fan and pump vector control AC motor drive for a 460 V 3-phase supply (380 to 480 VAC, 50/60 Hz), rated 91 A output current in light duty for motors up to 45 kW (60 HP), built in frame D0. In normal duty it delivers 73 A for 37 kW motors; light-duty overload is 120% of rated current for 1 minute in every 5 minutes, and normal duty adds 160% for 3 seconds in every 25 seconds. A 3% DC choke is built in, while the braking chopper and EMC filter are optional. The -00 suffix marks the version without conduit box, IP20 overall with an IP00 terminal area (UL open type). Version letter S denotes a wall-mount unit.
Technical reference
| Product name | DELTA VFD450CP43S-00 CP2000 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD450CP43S-00 |
| Category | Variable Frequency Drives |
| Frame size | D0 |
| Rated voltage / frequency | 3-phase, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz |
| Rated output current (Light Duty) | 91 A |
| Rated output current (Normal Duty) | 73 A |
| Applicable motor output (Light Duty) | 45 kW |
| Applicable motor output (Normal Duty) | 37 kW |
| Input current (Light Duty / Normal Duty) | 91 / 74 A |
