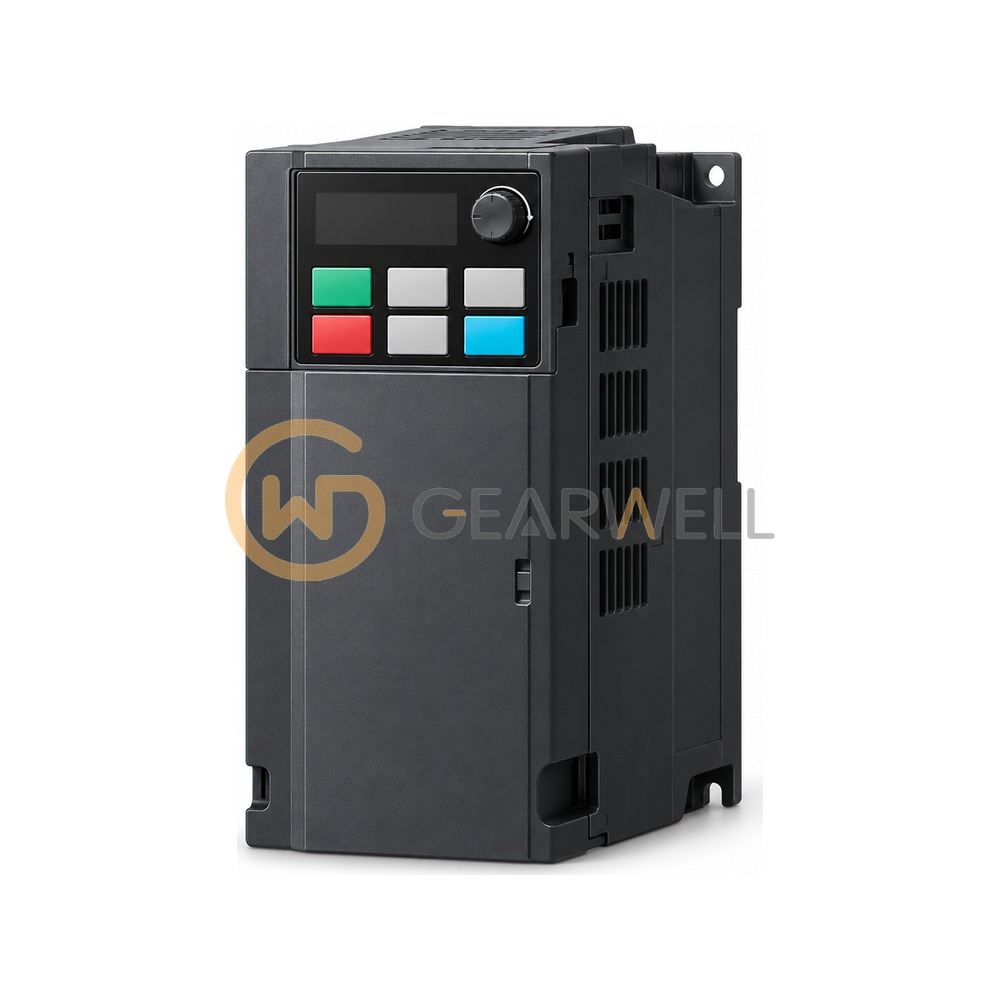

DELTA VFD1A7MS53ANSAA MS300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD1A7MS53ANSAA
- GEARWELL SKU
- GWP-000013121
- Category
- Variable Frequency Drives
Key specifications
- IP rating
- IP20
- Frame size
- A5
- Built-in EMC filter
- No
- Input voltage class
- 575 V / 3-phase
- Safe Torque Off (STO)
- Integrated
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD1A7MS53ANSAA is an MS300 series compact AC motor drive for a 575 V 3-phase supply, rated 1.7 A output current in heavy duty for motors up to 0.75 kW (1 HP), built in frame size A. It accepts 500 to 600 V at 50/60 Hz (mains range 425 to 660 V) and delivers 2.1 A in normal duty. The model code marks an IP20 enclosure, no built-in EMC filter and integrated Safe Torque Off (STO). Heavy-duty overload is 150% of rated current for 60 seconds and 200% for 3 seconds, and output frequency goes up to 599 Hz; it controls induction and permanent magnet motors in V/F, SVC or sensorless FOC mode. A built-in brake chopper, a 2k-step PLC and Modbus are included.
Technical reference
| Product name | DELTA VFD1A7MS53ANSAA MS300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD1A7MS53ANSAA |
| Category | Variable Frequency Drives |
| IP rating | IP20 |
| Frame size | A5 |
| Built-in EMC filter | No |
| Input voltage class | 575 V / 3-phase |
| Safe Torque Off (STO) | Integrated |
| Max. applicable motor capacity | 1 HP |
| Drive rated output current (Heavy Duty) | 1.7 A |
