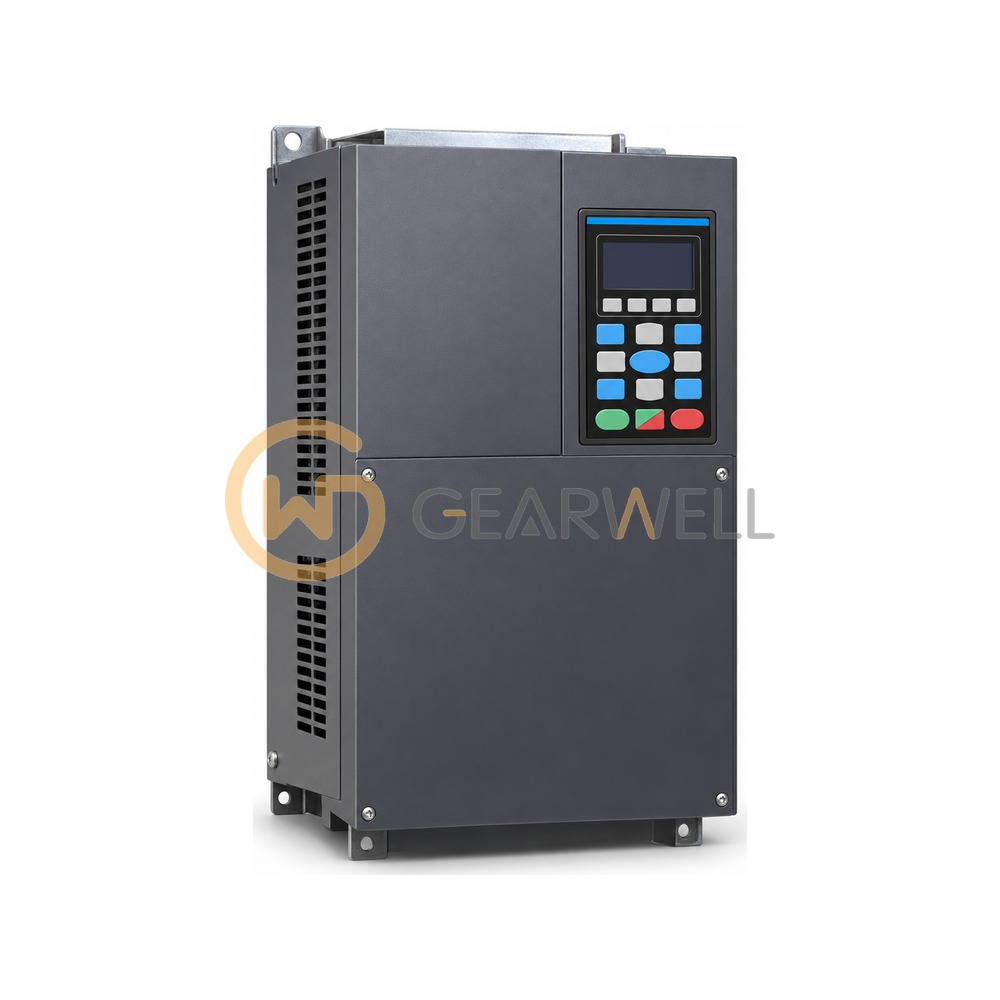

DELTA VFD220C23A C2000 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD220C23A
- GEARWELL SKU
- GWP-000013122
- Category
- Variable Frequency Drives
Key specifications
- EMC filter
- Optional
- Frame size
- C
- Rated voltage / frequency
- 3-phase AC 200 V ~ 240 V (-15% ~ +10%), 50 / 60 Hz
- Rated output current (Heavy Duty)
- 86 A
- Rated output current (Normal Duty)
- 90 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | DELTA VFD220C23A C2000 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD220C23A |
| Category | Variable Frequency Drives |
| EMC filter | Optional |
| Frame size | C |
| Rated voltage / frequency | 3-phase AC 200 V ~ 240 V (-15% ~ +10%), 50 / 60 Hz |
| Rated output current (Heavy Duty) | 86 A |
| Rated output current (Normal Duty) | 90 A |
| Applicable motor output (Normal Duty) | 22 kW |
| Input current (Normal Duty / Heavy Duty) | 99 / 95 A |
