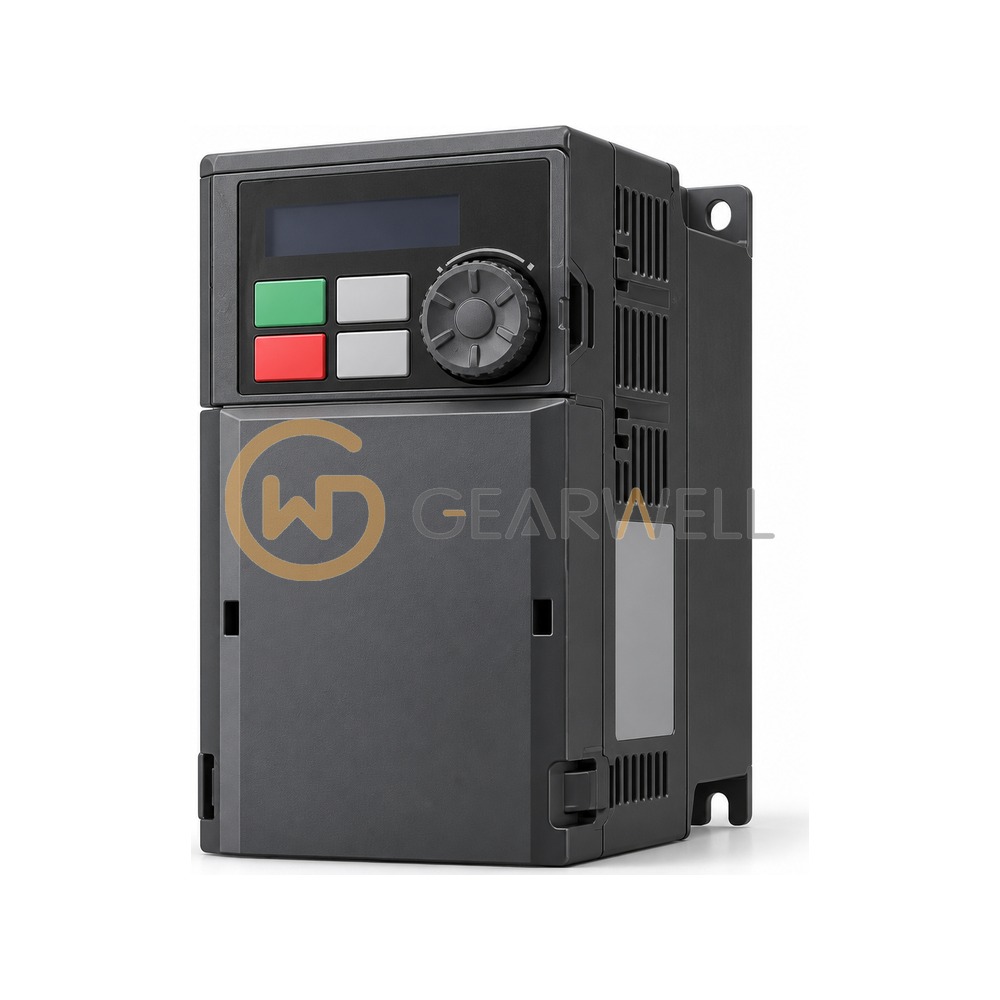

DELTA VFD1A6MH11ANSAA MH300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD1A6MH11ANSAA
- GEARWELL SKU
- GWP-000013117
- Category
- Variable Frequency Drives
Key specifications
- Cooling
- Natural air cooling
- IP rating
- IP20
- Frame size
- A1
- Built-in EMC filter
- No
- Input voltage class
- 115 V / single-phase
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD1A6MH11ANSAA is a Delta MH300 series high performance compact AC motor drive for 115 V single-phase supply, sized for a 0.2 kW (0.25 HP) motor. The code VFD1A6MH11ANSAA stands for a rated output current of 1.6 A in heavy duty mode (150% for 60 seconds), an IP20 enclosure, no built-in EMC filter, integrated Safe Torque Off and the standard model type. Normal duty rated output current is 1.8 A, the supply range is 100 to 120 V at 50/60 Hz and the brake chopper is built in. The drive is housed in frame size A and uses natural convection cooling with no fan. MH300 drives run induction and permanent magnet motors with V/F, SVC and FOC control and an output range up to 599 Hz.
Technical reference
| Product name | DELTA VFD1A6MH11ANSAA MH300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD1A6MH11ANSAA |
| Category | Variable Frequency Drives |
| Cooling | Natural air cooling |
| IP rating | IP20 |
| Frame size | A1 |
| Built-in EMC filter | No |
| Input voltage class | 115 V / single-phase |
| Max. applicable motor capacity | 0.25 HP |
| Drive rated output current (Heavy Duty) | 1.6 A |
