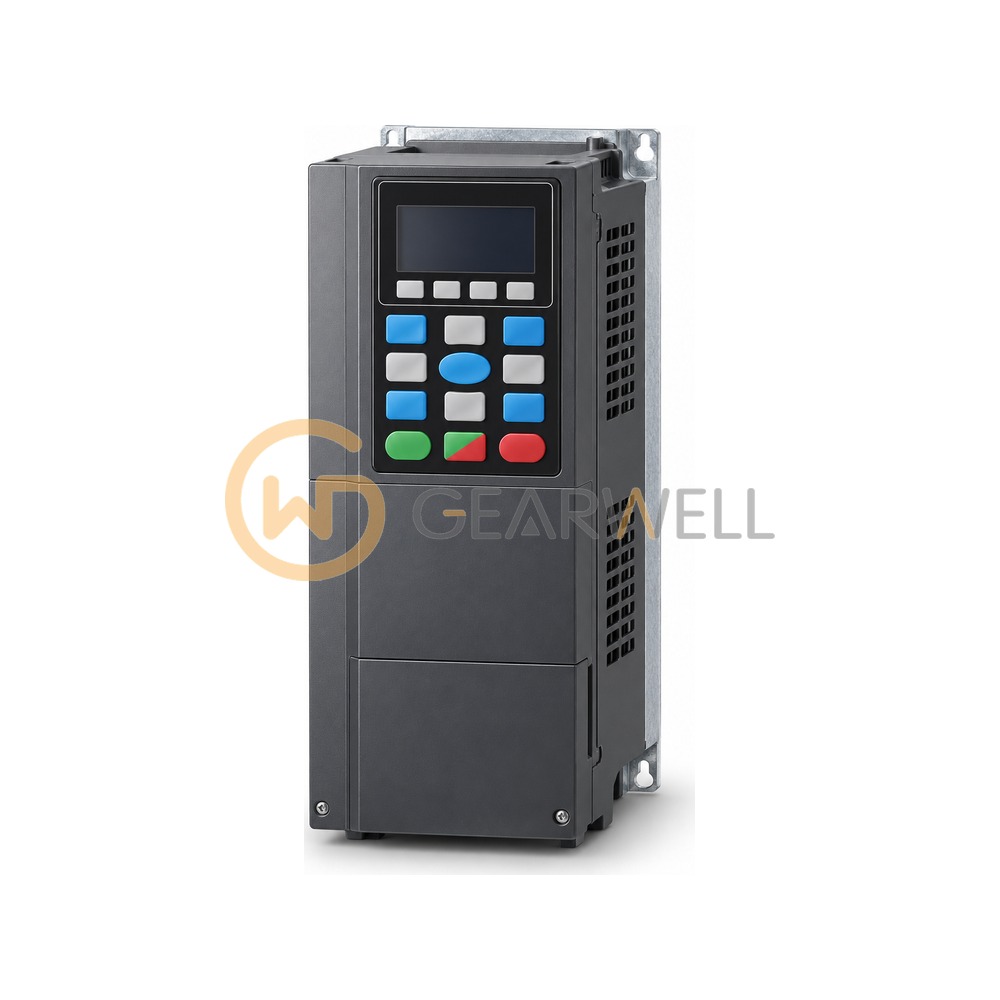

DELTA VFD220C23A-21 C2000 Plus series AC Motor Drive
- Brand
- DELTA
- Model
- VFD220C23A-21
- GEARWELL SKU
- GWP-000013123
- Category
- Variable Frequency Drives
Key specifications
- EMC filter
- Optional for all frames
- Frame size
- C
- Rated input voltage
- 3Ø, 200 ~ 240 VAC (-15% ~ +10%)
- Rated input current (HD / SHD)
- 99 / 83 A
- Motor power range (Heavy Duty)
- 22 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD220C23A-21 is a C2000 Plus series vector control AC motor drive for a 230 V 3-phase supply (200 to 240 VAC, 50/60 Hz), rated 90 A output current in heavy duty for motors up to 22 kW (30 HP), built in frame C. In super heavy duty it delivers 75 A for 18.5 kW (25 HP) motors, and heavy-duty overload is 150% of rated current for 1 minute in every 5 minutes and 180% for 3 seconds in every 30 seconds. A braking chopper is built in and a DC reactor is optional, as is the EMC filter. The -21 suffix marks an IP20 version with NEMA 1 protection, supplied with top cover and standard conduit plate. Version letter A denotes a wall-mount unit, and the drive is forced-air cooled.
Technical reference
| Product name | DELTA VFD220C23A-21 C2000 Plus series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD220C23A-21 |
| Category | Variable Frequency Drives |
| EMC filter | Optional for all frames |
| Frame size | C |
| Rated input voltage | 3Ø, 200 ~ 240 VAC (-15% ~ +10%) |
| Rated input current (HD / SHD) | 99 / 83 A |
| Motor power range (Heavy Duty) | 22 kW |
| Rated output current (Heavy Duty) | 90 A |
| Rated output current (Super Heavy Duty) | 75 A |
