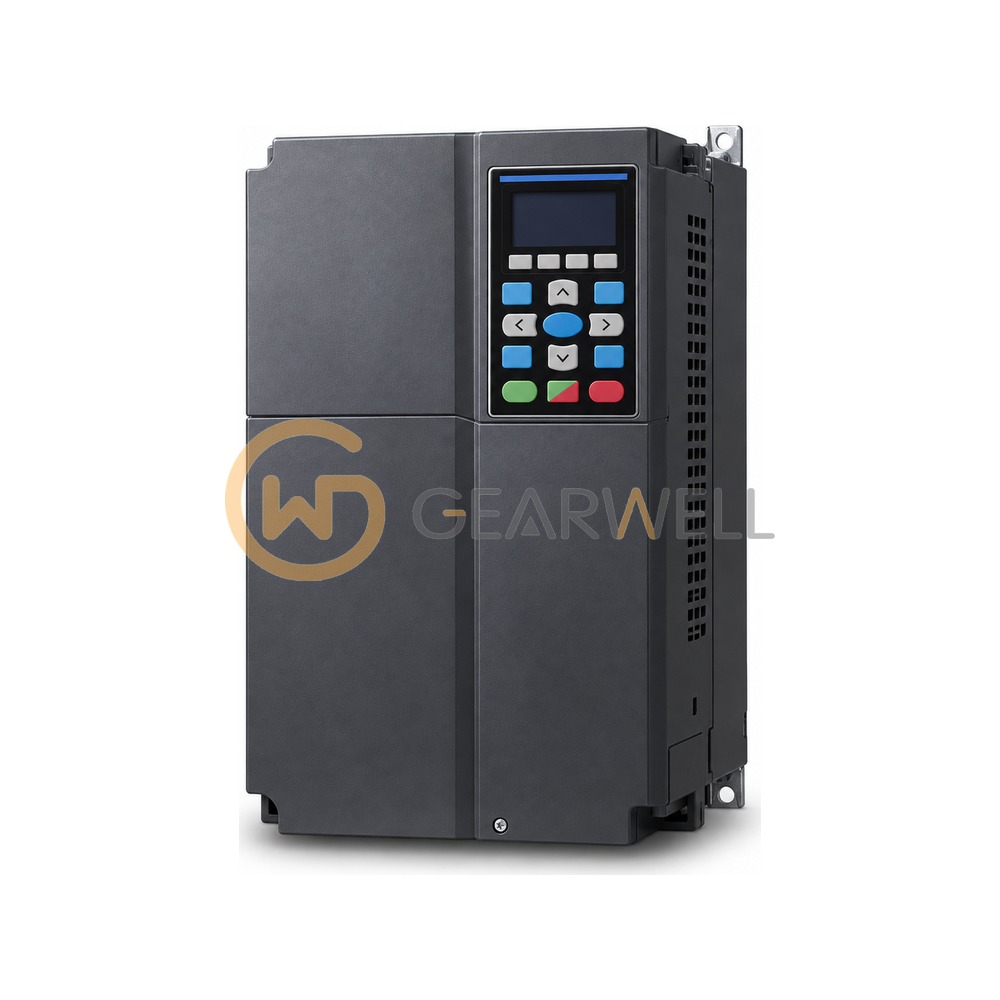

DELTA VFD185CP43B-21 CP2000 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD185CP43B-21
- GEARWELL SKU
- GWP-000012594
- Category
- Motors & Gearboxes
Key specifications
- Frame size
- B
- Rated voltage / frequency
- 3-phase, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz
- Rated output current (Light Duty)
- 38 A
- Rated output capacity (Light Duty)
- 30 kVA
- Rated output current (Normal Duty)
- 32 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD185CP43B-21 is a CP2000 series fan and pump vector control AC motor drive for a 460 V 3-phase supply (380 to 480 VAC, 50/60 Hz), rated 38 A output current in light duty for motors up to 18.5 kW (25 HP), built in frame B. In normal duty it delivers 32 A for 15 kW (20 HP) motors; light-duty overload is 120% of rated current for 1 minute in every 5 minutes, and normal duty adds 160% for 3 seconds in every 25 seconds. A braking chopper is built in and the DC choke is optional, with no built-in EMC filter. The -21 suffix marks an IP20 version with NEMA 1 protection, supplied with top cover and standard conduit plate. Version letter B denotes a wall-mount unit.
Technical reference
| Product name | DELTA VFD185CP43B-21 CP2000 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD185CP43B-21 |
| Category | Motors & Gearboxes |
| Frame size | B |
| Rated voltage / frequency | 3-phase, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz |
| Rated output current (Light Duty) | 38 A |
| Rated output capacity (Light Duty) | 30 kVA |
| Rated output current (Normal Duty) | 32 A |
| Applicable motor output (Light Duty) | 18.5 kW |
| Input current (Light Duty / Normal Duty) | 42 / 35 A |
