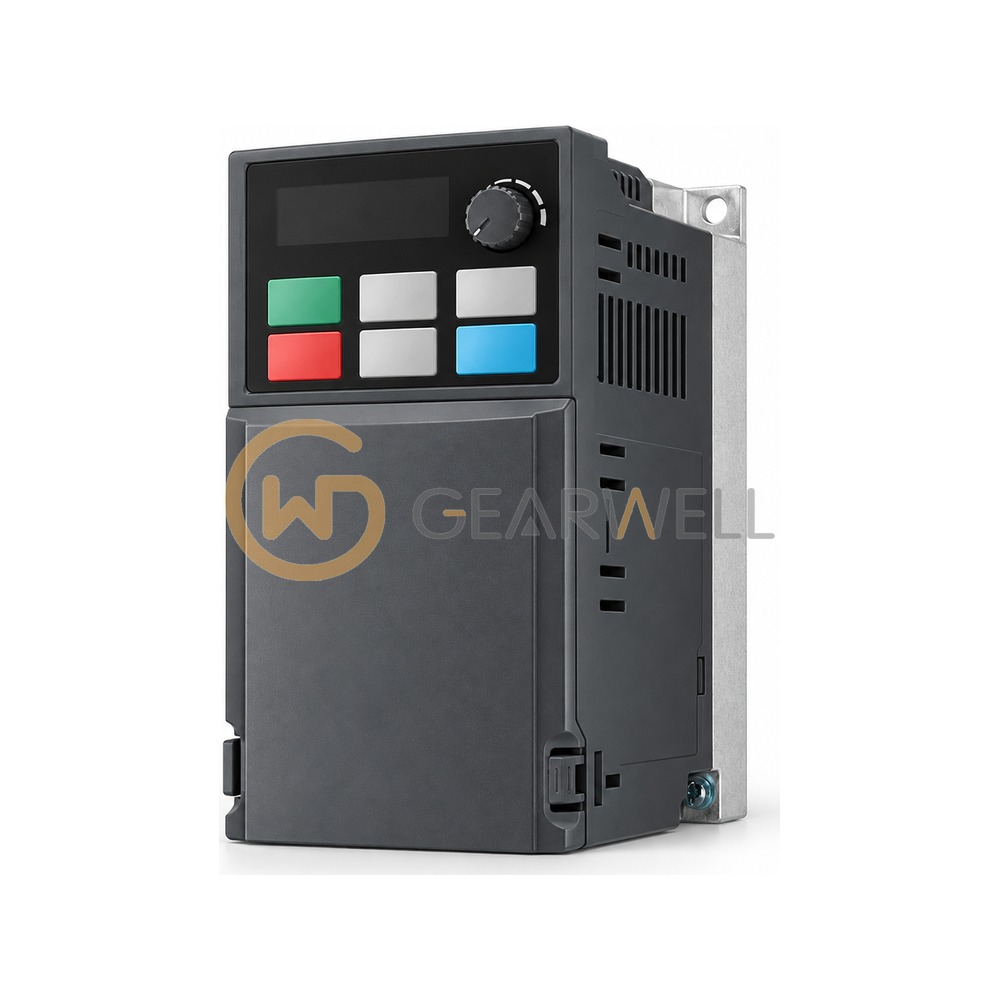

DELTA VFD1A6ME11ANSAA ME300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD1A6ME11ANSAA
- GEARWELL SKU
- GWP-000013116
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- A1
- Built-in STO
- Yes
- Built-in EMC filter
- No
- Input voltage class
- 115 V / single-phase
- Max. applicable motor capacity
- 1/4 HP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD1A6ME11ANSAA is a Delta ME300 series basic compact AC motor drive for 115 V single-phase supply, sized for a 0.2 kW (1/4 HP) motor. The code VFD1A6ME11ANSAA stands for a rated output current of 1.6 A in heavy duty mode (150% for 60 seconds), an IP20 enclosure, no EMC filter, Safe Torque Off and the standard model type. Normal duty rated output current is 1.8 A and the supply range is 100 to 120 V at 50/60 Hz, with natural air cooling. It comes in frame size A, has a built-in brake chopper and a carrier frequency of 2 to 15 kHz. ME300 drives run induction and permanent magnet motors with V/F and SVC control and provide Modbus as standard.
Technical reference
| Product name | DELTA VFD1A6ME11ANSAA ME300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD1A6ME11ANSAA |
| Category | Variable Frequency Drives |
| Frame size | A1 |
| Built-in STO | Yes |
| Built-in EMC filter | No |
| Input voltage class | 115 V / single-phase |
| Max. applicable motor capacity | 1/4 HP |
| Drive rated output current (Heavy Duty) | 1.6 A |
