DELTA TP04P-16TP1R HMI PLC Controller
- Brand
- DELTA
- Model
- TP04P-16TP1R
- GEARWELL SKU
- GWP-000006518
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

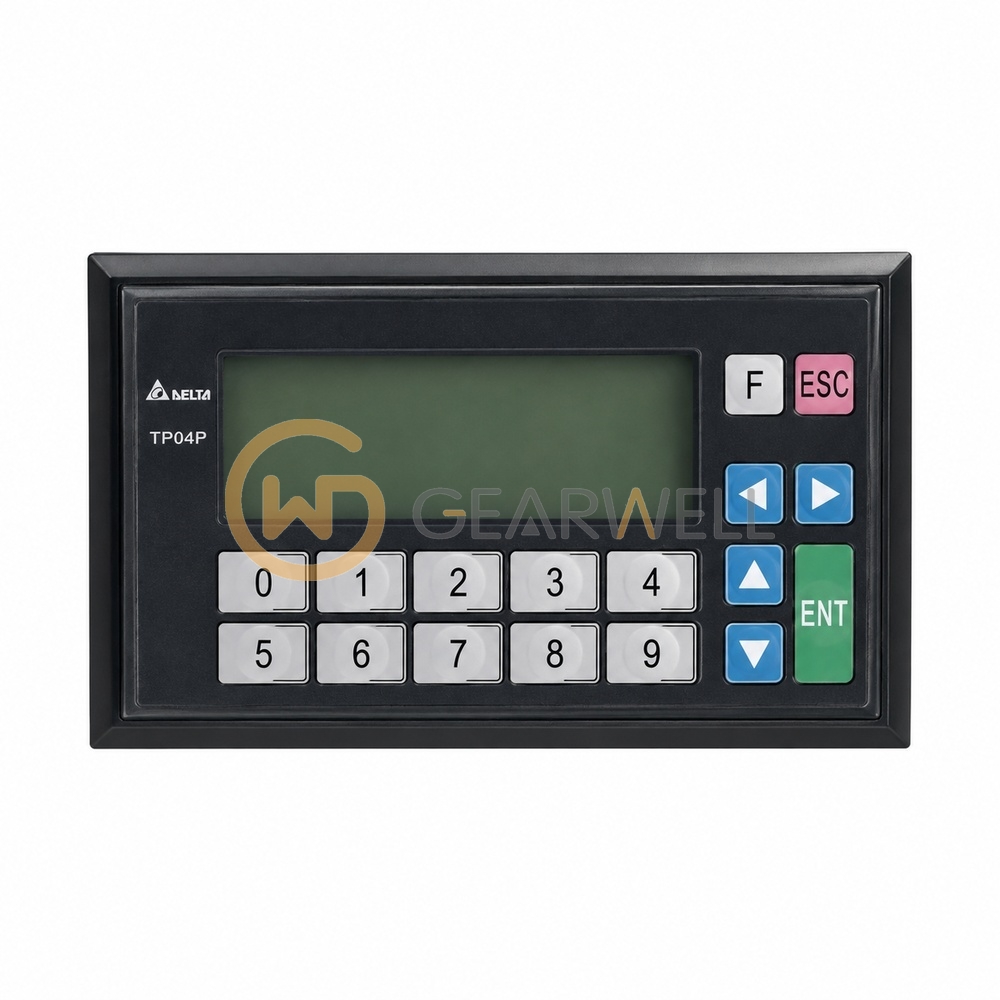

The Delta TP04P-16TP1R is a TP04P 4-line text panel HMI with a built-in PLC based on the DVP-SS2 core, with 8 k steps of program capacity and 5k words of D devices. The 4.1" monochrome STN-LCD shows 192 x 64 pixels, and the front has 17 function keys including 0 ~ 9 numeric keys; flash memory is 1 M bytes. This model has 8 digital inputs and 8 relay outputs, plus 2 sets of 10 kHz high-speed pulse input. It offers USB for program upload and download, two RS-485 ports with Modbus ASCII/RTU, and a built-in real time clock; it is programmed with TPEditor.
Technical reference
| Product name | DELTA TP04P-16TP1R HMI PLC Controller |
|---|---|
| Brand | DELTA |
| Model | TP04P-16TP1R |
| Category | PLCs & I/O |
