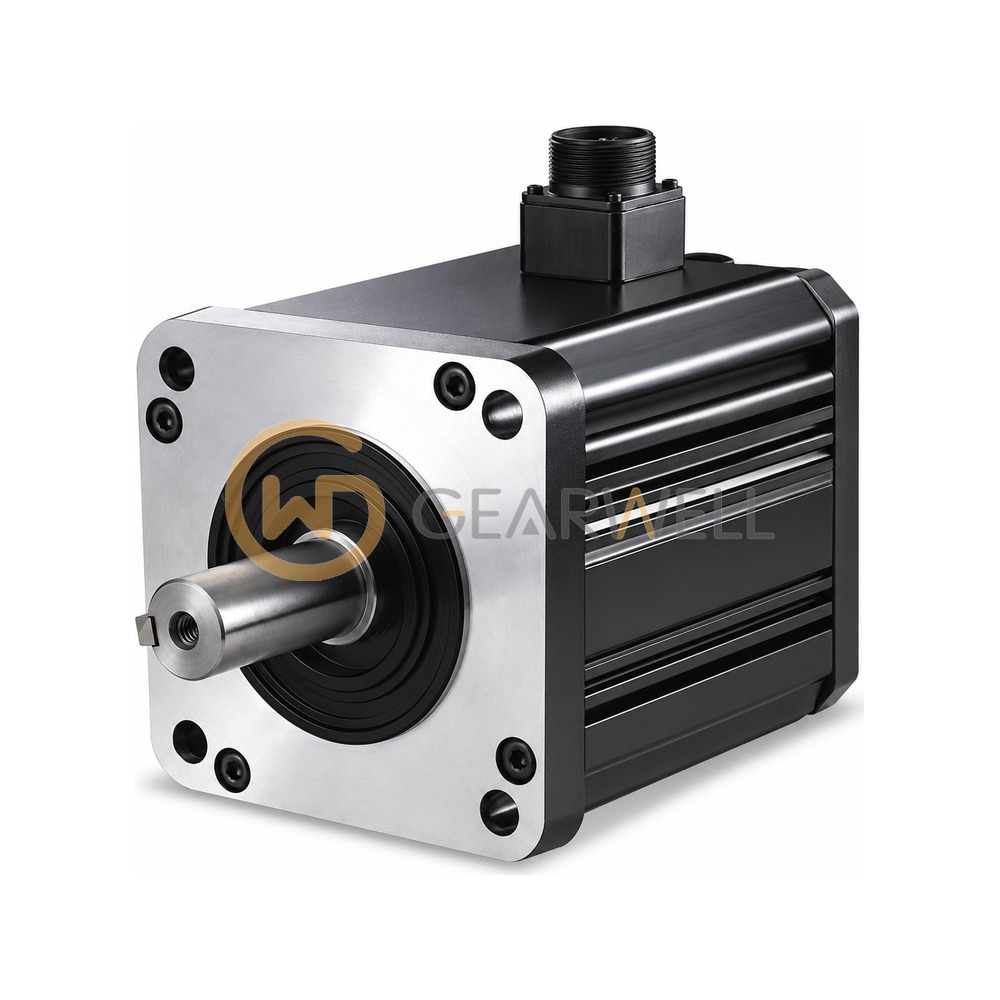

DELTA ECMA-C10807RS ECMA series (for ASDA-A2) AC Servo Motor
- Brand
- DELTA
- Model
- ECMA-C10807RS
- GEARWELL SKU
- GWP-000012557
- Category
- Servo Systems
Key specifications
- Weight
- 3.0 kg (without brake), 3.8 kg (with brake)
- Rated speed
- 3000 r/min; Max. speed: 5000 r/min
- Encoder type
- Incremental encoder, 20-bit (encoder code '1')
- Rated torque
- 2.39 N-m; Max. torque: 7.16 N-m
- Rated current
- 5.1 A; Max. current: 15.3 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta ECMA-C10807RS is a Delta ECMA series low-inertia AC servo motor for 220 V servo drives, with an 80 mm frame and a rated output of 0.75 kW. It gives 2.39 N-m rated and 7.16 N-m maximum torque at a rated speed of 3000 r/min (5000 r/min maximum), with 5.1 A rated and 15.3 A maximum current. The motor has a 20-bit incremental encoder, and the R shaft code means a keyway with fixed screw holes, an oil seal and no holding brake. Rotor inertia is 1.13 (x10-4 kg-m2) and the weight is 3.0 kg; IP65 applies when waterproof connectors are used.
Technical reference
| Product name | DELTA ECMA-C10807RS ECMA series (for ASDA-A2) AC Servo Motor |
|---|---|
| Brand | DELTA |
| Model | ECMA-C10807RS |
| Category | Servo Systems |
| Weight | 3.0 kg (without brake), 3.8 kg (with brake) |
| Rated speed | 3000 r/min; Max. speed: 5000 r/min |
| Encoder type | Incremental encoder, 20-bit (encoder code '1') |
| Rated torque | 2.39 N-m; Max. torque: 7.16 N-m |
| Rated current | 5.1 A; Max. current: 15.3 A |
| Rated output power | 0.75 kW (220V low inertia, C 08 07, 80 mm frame) |
| Rotor moment of inertia | 1.13 x10-4 kg-m2 (without brake) |
| Shaft / brake / oil seal code 'R' | Keyway (with screw hole), without brake, with oil seal; 'S': Standard shaft diameter |
