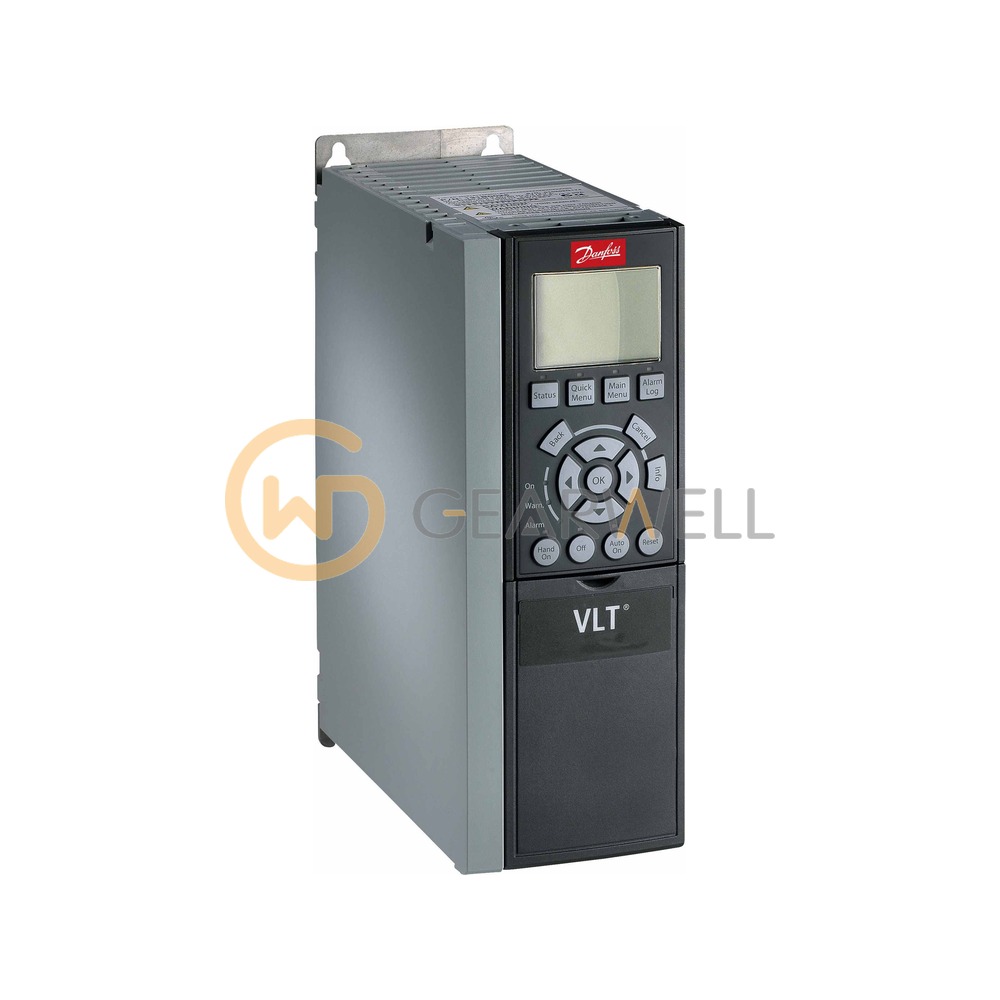

Danfoss FC-301PK75T2E20H2X AutomationDrive FC 301 AC Drive
- Brand
- DANFOSS
- Model
- FC-301PK75T2E20H2X
- GEARWELL SKU
- GWP-000011632
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- A2
- LCP options
- X (none) / G (graphical) (specify on order)
- Enclosure (code E20)
- IP20 / Chassis
- RFI filter (code H2)
- RFI Filter
- Collected type code
- FC-301PK75T2E20H2X
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss FC-301PK75T2E20H2X is a VLT® AutomationDrive FC 301 AC drive (characters 4-6 = 301) with power size PK75, giving 0.75 kW typical shaft output at 208 V or 1 hp at 230 V, for 3-phase 200-240 V AC mains (voltage code T2). It delivers 4.6 A continuous and 5.1 A intermittent (60 s) output current, with a continuous input current of 4.1 A and an estimated power loss of 54 W. The code E20 selects the IP20/Chassis version, which is enclosure size A2 (the A1 size is ordered with code Z20 instead); H2 means an RFI filter of class A2 (C3), and X in position 18 means no brake IGBT. The LCP, coating and option characters are not specified in this catalog number, so the full type code must be confirmed before ordering.
Technical reference
| Product name | Danfoss FC-301PK75T2E20H2X AutomationDrive FC 301 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | FC-301PK75T2E20H2X |
| Category | Variable Frequency Drives |
| Frame size | A2 |
| LCP options | X (none) / G (graphical) (specify on order) |
| Enclosure (code E20) | IP20 / Chassis |
| RFI filter (code H2) | RFI Filter |
| Collected type code | FC-301PK75T2E20H2X |
| PCB coating options | X (not coated) / C (coated) (specify on order) |
| Brake chopper (code X) | No |
| Mains supply (code T2) | 3-phase 200-240 V AC |
| Rated power (code PK75) | 0.75 kW / 1.0 HP |
| A / B / D option positions | AX / A0 / A4 ..., BX / BP ..., DX / D0 (specify on order) |
