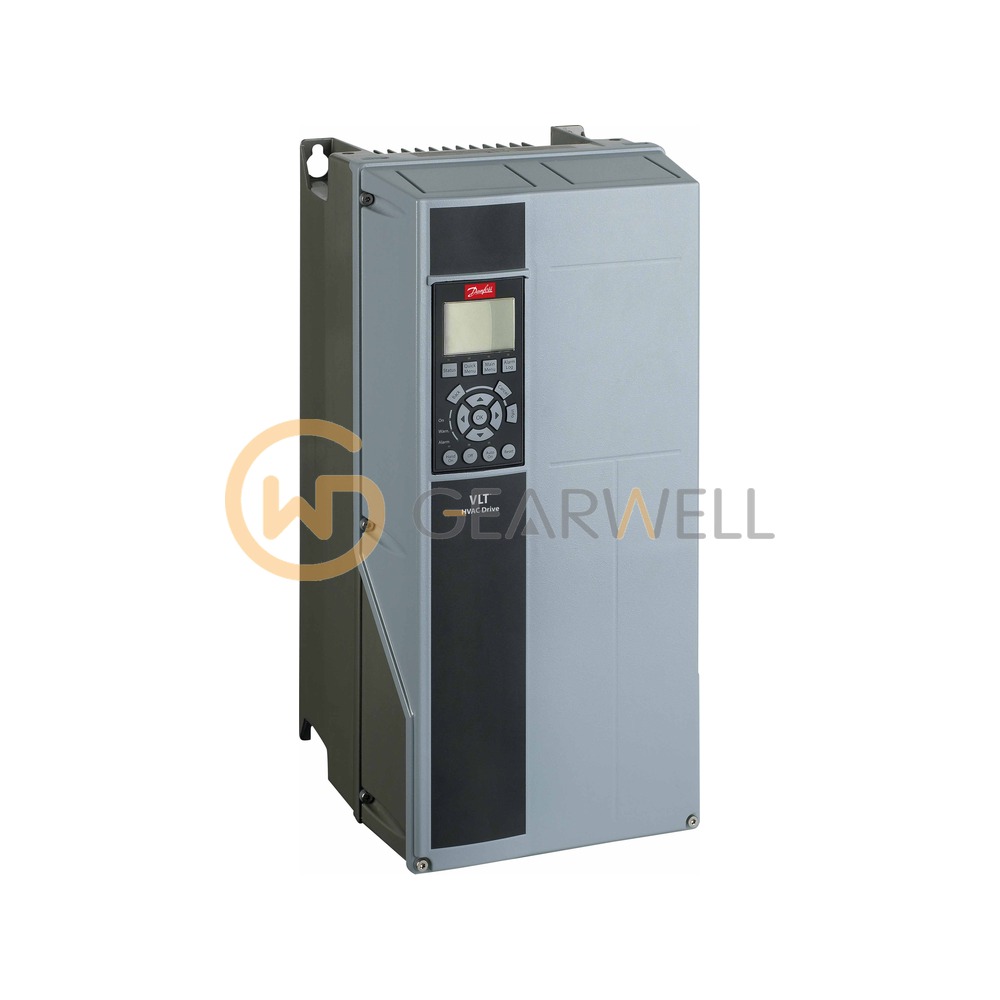

Danfoss 131B3288 VLT HVAC Drive FC 102 AC Drive
- Brand
- DANFOSS
- Model
- 131B3288
- GEARWELL SKU
- GWP-000011621
- Category
- Variable Frequency Drives
Key specifications
- A option (code AG)
- LonWorks MCA 108
- Danfoss type code
- FC-102P18KT4P21H2XGXDXXSXXXXAGBKCXXXXD0
- Enclosure (code P21)
- IP21 / Type 1 Backplate
- PCB coating (code X)
- Not coated PCB
- RFI filter (code H2)
- RFI Filter
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 131B3288 is a VLT® HVAC Drive FC 102 frequency converter for fan, pump and HVAC duty with the full type code FC-102P18KT4P21H2XGXDXXSXXXXAGBKCXXXXD0, rated 18.5 kW / 25 hp (P18K) for three-phase 380 - 480 VAC mains (T4). In normal overload (110% for 1 min in 10 min) it delivers 37.5 A continuous output current at 3 x 380-440 V and 34 A at 3 x 441-480 V. It is an IP21 / Type 1 backplate unit (P21) in frame B1 with an H2 RFI filter, no brake chopper, the graphical local control panel (G), a non-coated PCB and the loadsharing mains option (D). Options in the code are the LonWorks MCA 108 fieldbus (AG), the MCB 101 general purpose I/O (BK) and the MCB 107 24 V DC backup supply (D0). Dimensions are 494 x 243 x 261 mm (height x width x depth) and the net weight is 21.76 kg.
Technical reference
| Product name | Danfoss 131B3288 VLT HVAC Drive FC 102 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | 131B3288 |
| Category | Variable Frequency Drives |
| A option (code AG) | LonWorks MCA 108 |
| Danfoss type code | FC-102P18KT4P21H2XGXDXXSXXXXAGBKCXXXXD0 |
| Enclosure (code P21) | IP21 / Type 1 Backplate |
| PCB coating (code X) | Not coated PCB |
| RFI filter (code H2) | RFI Filter |
| Mains option (code D) | Loadsharing |
| Brake chopper (code X) | No |
| Mains supply (code T4) | 3-phase 380-480 V AC |
| Rated power (code P18K) | 18.5 kW / 25 HP |
| Local control panel (code G) | Graphical local control panel |
