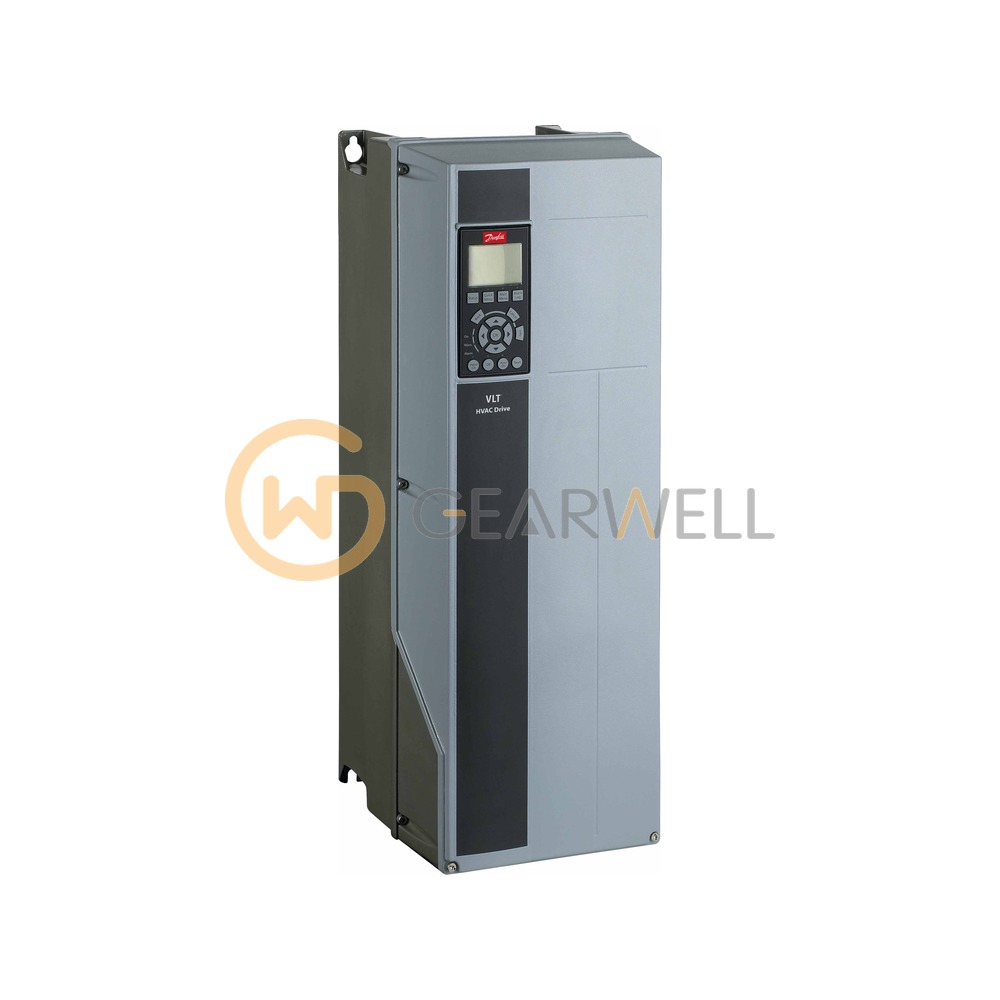

Danfoss 131B4263 VLT HVAC Drive FC 102 AC Drive
- Brand
- DANFOSS
- Model
- 131B4263
- GEARWELL SKU
- GWP-000011622
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- B2
- Danfoss type code
- FC-102P22KT4P21H2XGXXXXSXXXXAXBXCXXXXDX
- Enclosure (code P21)
- IP21 / Type 1 Backplate
- PCB coating (code X)
- Not coated PCB
- RFI filter (code H2)
- RFI Filter
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 131B4263 is a VLT® HVAC Drive FC 102 frequency converter for HVAC applications with the full type code FC-102P22KT4P21H2XGXXXXSXXXXAXBXCXXXXDX, rated 22 kW / 30 hp (P22K) for three-phase 380 - 480 VAC mains (T4). It delivers 44 A continuous and 48.4 A intermittent output current at 3 x 380-440 V and 40 A continuous at 3 x 441-480 V, in normal overload (110% for 1 min in 10 min). It is an IP21 / Type 1 backplate unit (P21) in frame B2 with an H2 RFI filter, no brake chopper and the graphical local control panel (G). It has a non-coated PCB, no mains option and no A, B, C or D options. Dimensions are 664 x 243 x 261 mm (height x width x depth) and the net weight is 27.95 kg.
Technical reference
| Product name | Danfoss 131B4263 VLT HVAC Drive FC 102 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | 131B4263 |
| Category | Variable Frequency Drives |
| Frame size | B2 |
| Danfoss type code | FC-102P22KT4P21H2XGXXXXSXXXXAXBXCXXXXDX |
| Enclosure (code P21) | IP21 / Type 1 Backplate |
| PCB coating (code X) | Not coated PCB |
| RFI filter (code H2) | RFI Filter |
| Brake chopper (code X) | No |
| Mains supply (code T4) | 3-phase 380-480 V AC |
| Rated power (code P22K) | 22 kW / 30 HP |
| Local control panel (code G) | Graphical local control panel |
| Continuous output current (NO, 380-440 V) | 44 A |
