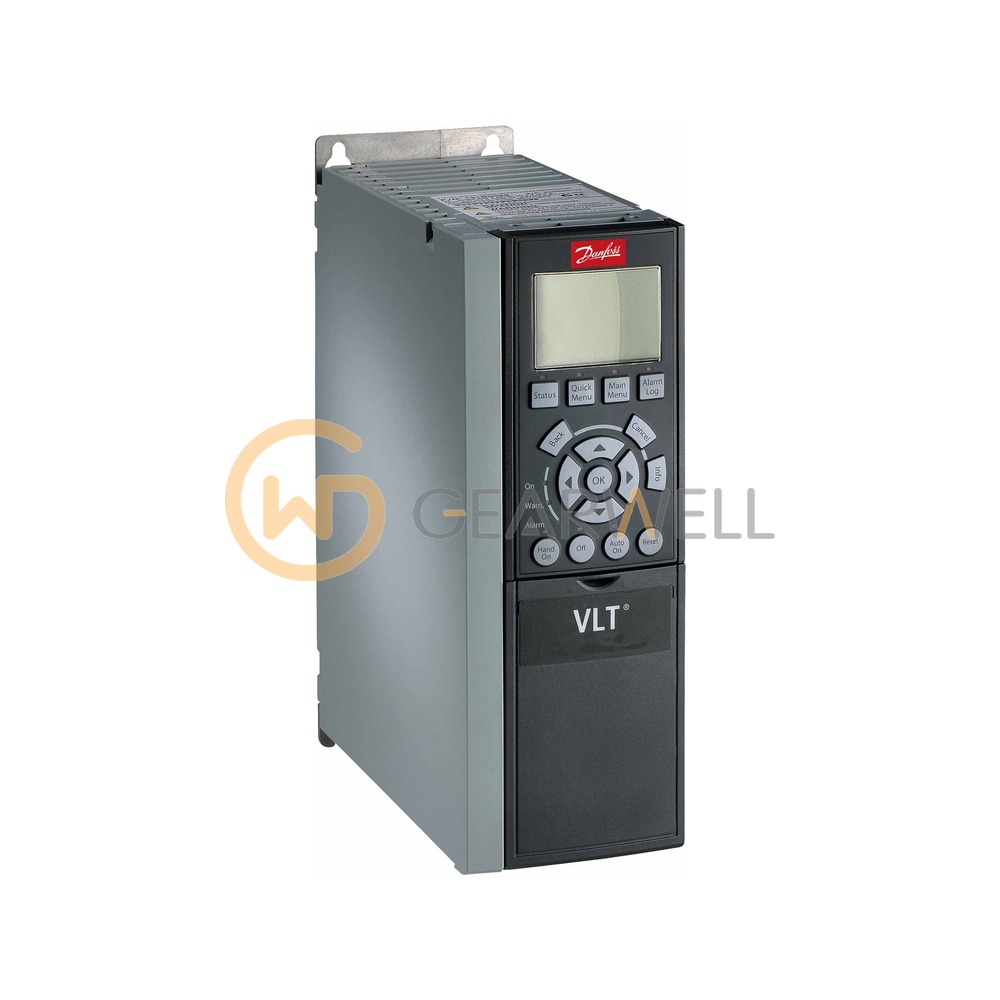

Danfoss 131B0484 VLT AutomationDrive FC 302 AC Drive
- Brand
- DANFOSS
- Model
- 131B0484
- GEARWELL SKU
- GWP-000011619
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- A2
- A option (code A0)
- PROFIBUS DP MCA 101
- Danfoss type code
- FC-302P3K0T5E20H1BGXXXXSXXXXA0BXCXXXXDX
- Enclosure (code E20)
- IP20 / Chassis
- PCB coating (code X)
- Not coated PCB
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 131B0484 is a VLT® AutomationDrive FC 302 frequency converter with the full type code FC-302P3K0T5E20H1BGXXXXSXXXXA0BXCXXXXDX, rated 3.0 kW / 4.0 hp (P3K0) for three-phase 380 - 500 V AC mains (T5). It delivers 7.2 A continuous and 11.5 A intermittent output current at 3 x 380-440 V and 6.3 A continuous at 3 x 441-500 V in high overload (160% for 1 min in 10 min). It is an IP20 / chassis unit (E20) in frame A2 with an RFI filter class A1/B (C1) (H1), a brake chopper (B) and the graphical local control panel (G). The A option position carries A0, the PROFIBUS DP MCA 101 fieldbus option, and it has a non-coated PCB, no mains option and no B, C or D options. Dimensions are 268 x 90 x 205 mm (220 mm deep with an A/B option) and the net weight is 4.71 kg.
Technical reference
| Product name | Danfoss 131B0484 VLT AutomationDrive FC 302 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | 131B0484 |
| Category | Variable Frequency Drives |
| Frame size | A2 |
| A option (code A0) | PROFIBUS DP MCA 101 |
| Danfoss type code | FC-302P3K0T5E20H1BGXXXXSXXXXA0BXCXXXXDX |
| Enclosure (code E20) | IP20 / Chassis |
| PCB coating (code X) | Not coated PCB |
| RFI filter (code H1) | RFI Class A1/B (C1) |
| Brake chopper (code B) | Yes |
| Mains supply (code T5) | 3-phase 380-500 V AC |
| Rated power (code P3K0) | 3.0 kW / 4.0 HP |
| Local control panel (code G) | Graphical local control panel |
