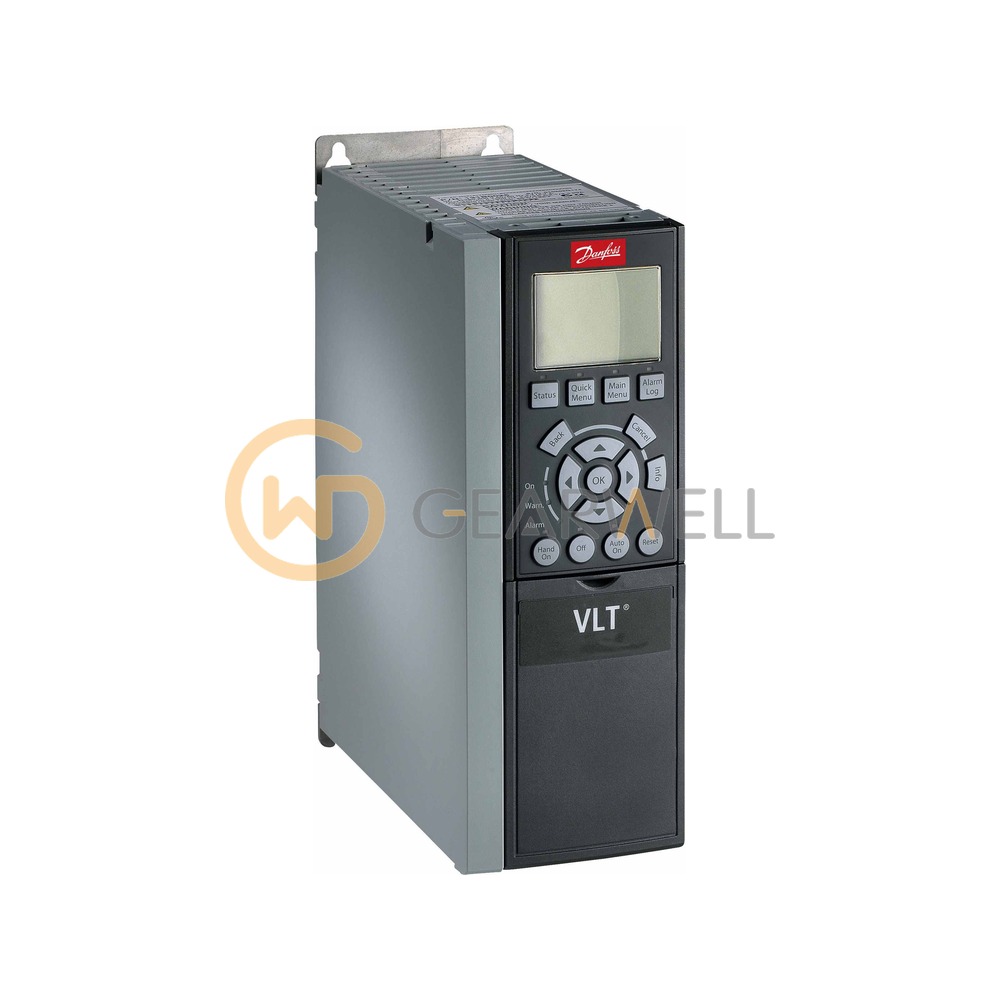

Danfoss 131B1972 VLT AutomationDrive FC 302 AC Drive
- Brand
- DANFOSS
- Model
- 131B1972
- GEARWELL SKU
- GWP-000011620
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- A5
- Danfoss type code
- FC-302P7K5T5E55H2BGXXXXSXXXXAXBXCXXXXDX
- Enclosure (code E55)
- IP55 / Type 12
- PCB coating (code X)
- Not coated PCB
- RFI filter (code H2)
- RFI Filter
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 131B1972 is a VLT® AutomationDrive FC 302 frequency converter with the full type code FC-302P7K5T5E55H2BGXXXXSXXXXAXBXCXXXXDX, rated 7.5 kW / 10 hp (P7K5) for three-phase 380 - 500 V AC mains (T5). In high overload (160% for 1 min in 10 min) it delivers 16 A continuous and 25.6 A intermittent output current at 3 x 380-440 V, and 14.5 A continuous at 3 x 441-500 V. The enclosure is IP55 / Type 12 (E55) in frame A5, with an H2 RFI filter, a brake chopper (B) and the graphical local control panel (G). It has a non-coated PCB, no mains option and no A, B, C or D options. Dimensions are 420 x 242 x 200 mm (height x width x depth) and the net weight is 11.96 kg.
Technical reference
| Product name | Danfoss 131B1972 VLT AutomationDrive FC 302 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | 131B1972 |
| Category | Variable Frequency Drives |
| Frame size | A5 |
| Danfoss type code | FC-302P7K5T5E55H2BGXXXXSXXXXAXBXCXXXXDX |
| Enclosure (code E55) | IP55 / Type 12 |
| PCB coating (code X) | Not coated PCB |
| RFI filter (code H2) | RFI Filter |
| Brake chopper (code B) | Yes |
| Mains supply (code T5) | 3-phase 380-500 V AC |
| Rated power (code P7K5) | 7.5 kW / 10 HP |
| Local control panel (code G) | Graphical local control panel |
| Continuous output current (HO, 380-440 V) | 16 A |
