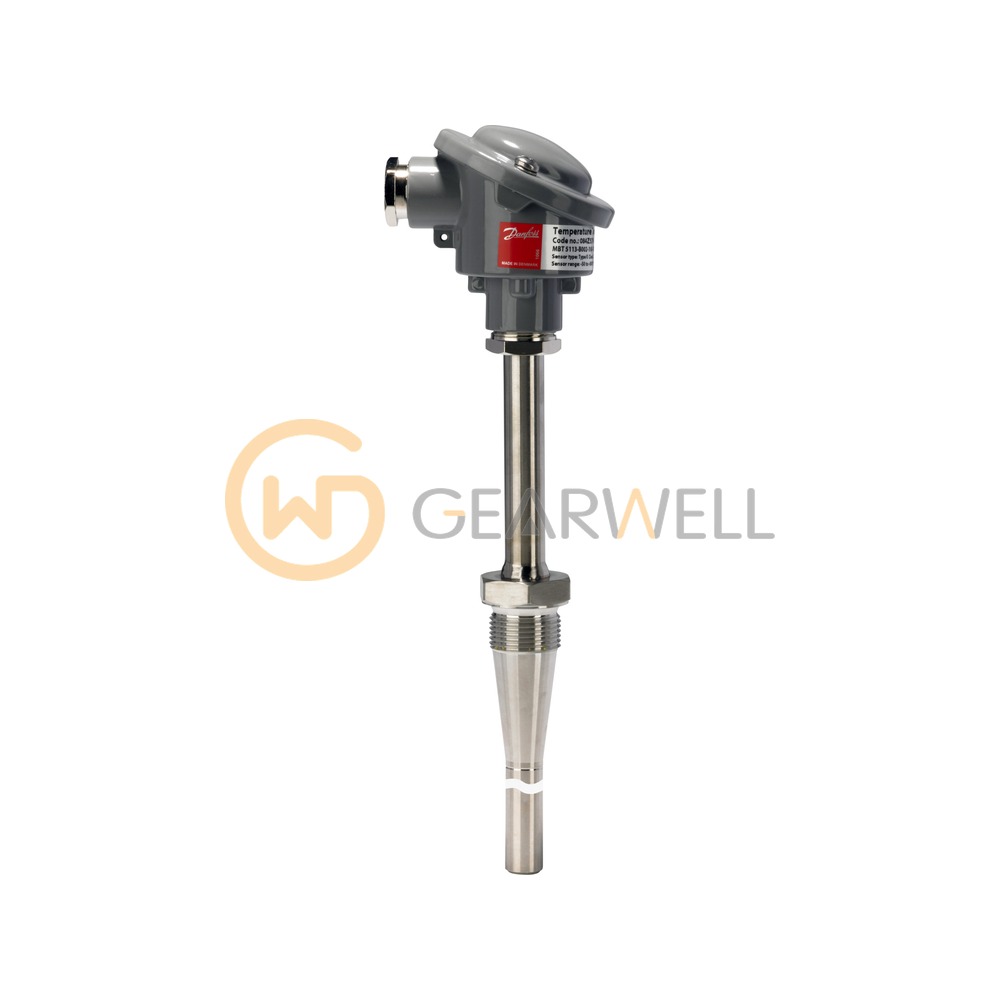

Danfoss 084Z5276 MBT 5113 Temperature Transmitter
- Brand
- DANFOSS
- Model
- 084Z5276
- GEARWELL SKU
- GWP-000006971
- Category
- Pressure, Flow & Temperature
Key specifications
- Product type
- MBT 5113
- Thermocouple
- Type K (NiCr-Ni)
- Output signal
- 4 to 20 mA
- Supply voltage
- 8 to 35 V DC
- Enclosure rating
- IP65
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 084Z5276 is a Danfoss MBT 5113 temperature transmitter (type designation MBT 5113-B002-100-10-H160) with a single NiCr-Ni type K thermocouple and an exchangeable sensor insert. The galvanically isolated transmitter gives a 4-20 mA signal on 2 wires from an 8-35 V DC supply and is set to 0-600 °C; the sensor is rated from -50 to 800 °C. Process connection is G 3/4 male (ISO 228-1-A) in AISI 316 Ti with a fixed 100 mm insertion length. The head has a type B connection with Pg 16 cable entry and IP65 rating; net weight is 0.637 kg.
Technical reference
| Product name | Danfoss 084Z5276 MBT 5113 Temperature Transmitter |
|---|---|
| Brand | DANFOSS |
| Model | 084Z5276 |
| Category | Pressure, Flow & Temperature |
| Product type | MBT 5113 |
| Thermocouple | Type K (NiCr-Ni) |
| Output signal | 4 to 20 mA |
| Supply voltage | 8 to 35 V DC |
| Enclosure rating | IP65 |
| Insertion length | 100 mm |
| Process connection | G 3/4 (ISO 228-1-A) |
| Transmitter setting range | 0 to 600 °C |
