← Back to productsProduct overview

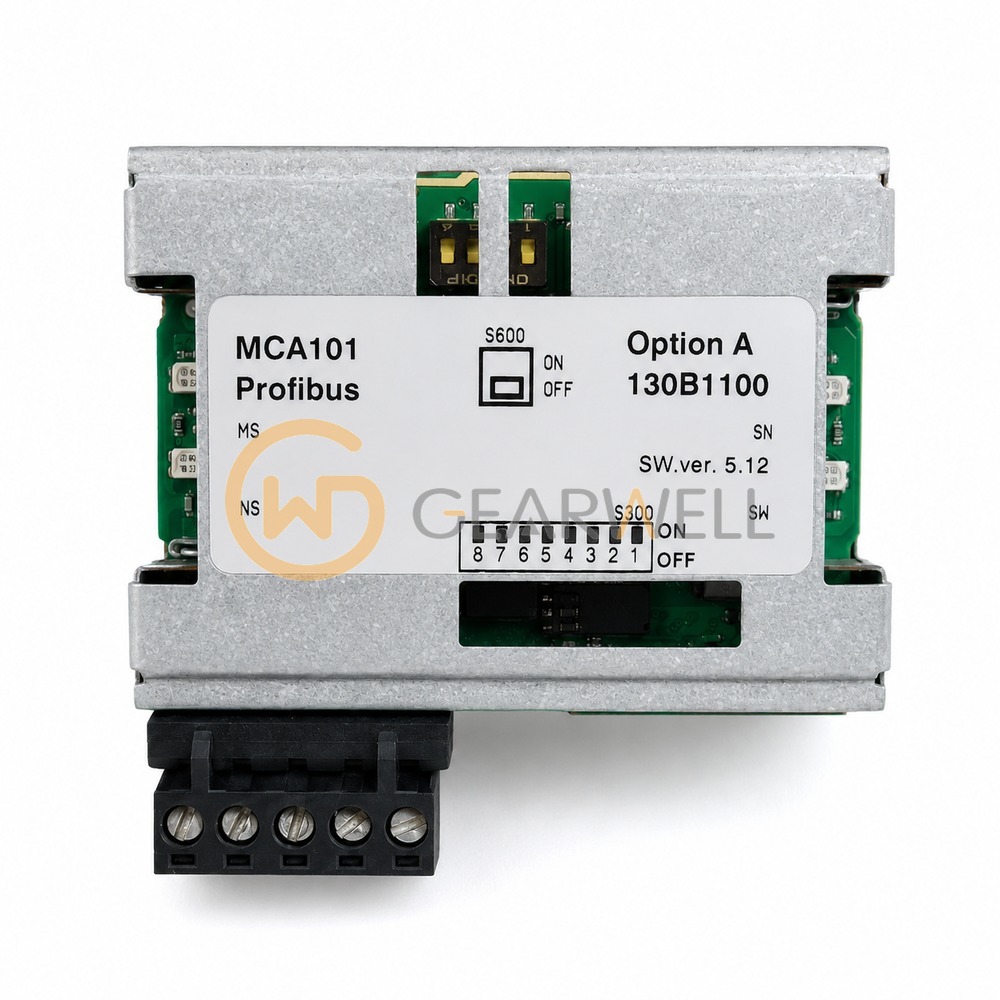

The Danfoss 130B1100 is the VLT® PROFIBUS DP V1 MCA 101, a fieldbus option card that connects a VLT® drive to a PROFIBUS DP network. It supports acyclic parameterization over PROFIBUS DP-V1 with the PROFIdrive or Danfoss FC profile, PROFIBUS DP-V1 master class 1 and 2, and automatic configuration of process data from a GSD file. 130B1100 is the standard version, while 130B1200 is the coated variant. The MCA 101 is an A option for the FC 301, FC 302 and FCD 302, and the net weight is 0.413 kg.
Technical reference
| Product name | DANFOSS 130B1100 VLT PROFIBUS DP MCA 101 Communication Option |
|---|---|
| Brand | DANFOSS |
| Model | 130B1100 |
| Category | Industrial Communication |
