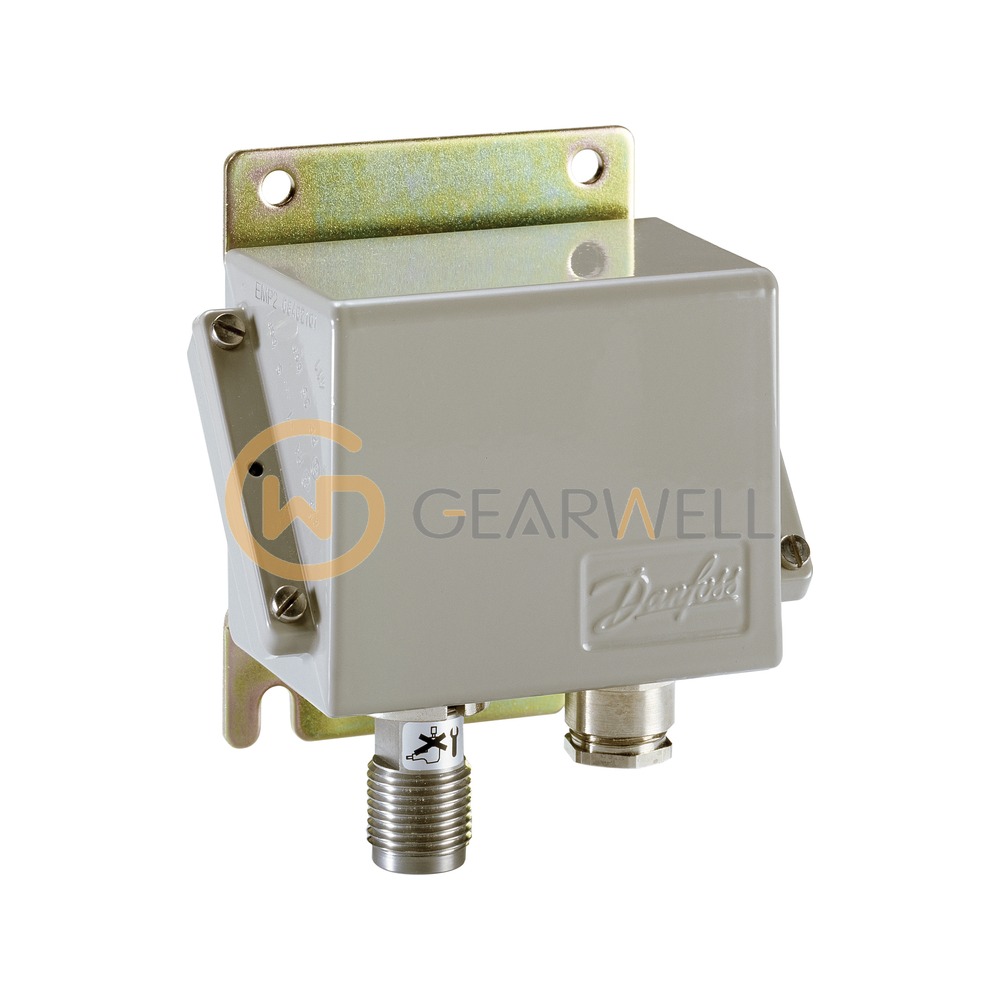

Danfoss 084G2113 EMP 2 Pressure Transmitter
- Brand
- DANFOSS
- Model
- 084G2113
- GEARWELL SKU
- GWP-000011589
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- 4-20 mA
- Pressure range
- 0-40 bar
- Supply voltage
- 12-32 V DC
- Accuracy (typical)
- ±0.5 % FS
- Enclosure rating
- IP65
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 084G2113 is a Danfoss EMP 2 pressure transmitter (specification key EMP 2-2631-F6CD24-2) with a range of 0 to 40 bar (0 to 580 psi), sealed gauge reference. Output is 4-20 mA from a 12-32 V DC supply, typical accuracy is 0.5 % of full scale and overload pressure is up to 80 bar. The pressure connection is G 1/2 (EN 228-1), the electrical connection is a terminal block with Pg 13.5 entry, and the enclosure is IP65. Medium temperature range is -10 to 70 °C, and the unit holds marine approvals including ABS, BV, DNV, LR and RINA.
Technical reference
| Product name | Danfoss 084G2113 EMP 2 Pressure Transmitter |
|---|---|
| Brand | DANFOSS |
| Model | 084G2113 |
| Category | Pressure, Flow & Temperature |
| Output signal | 4-20 mA |
| Pressure range | 0-40 bar |
| Supply voltage | 12-32 V DC |
| Accuracy (typical) | ±0.5 % FS |
| Enclosure rating | IP65 |
| Specification key | EMP 2-2631-F6CD24-2 |
| Pressure reference | Sealed gauge |
| Pressure connection | G 1/2 (ext.), G 1/4 (int.) |
| Electrical connection | Terminal block, Pg 13.5 |
