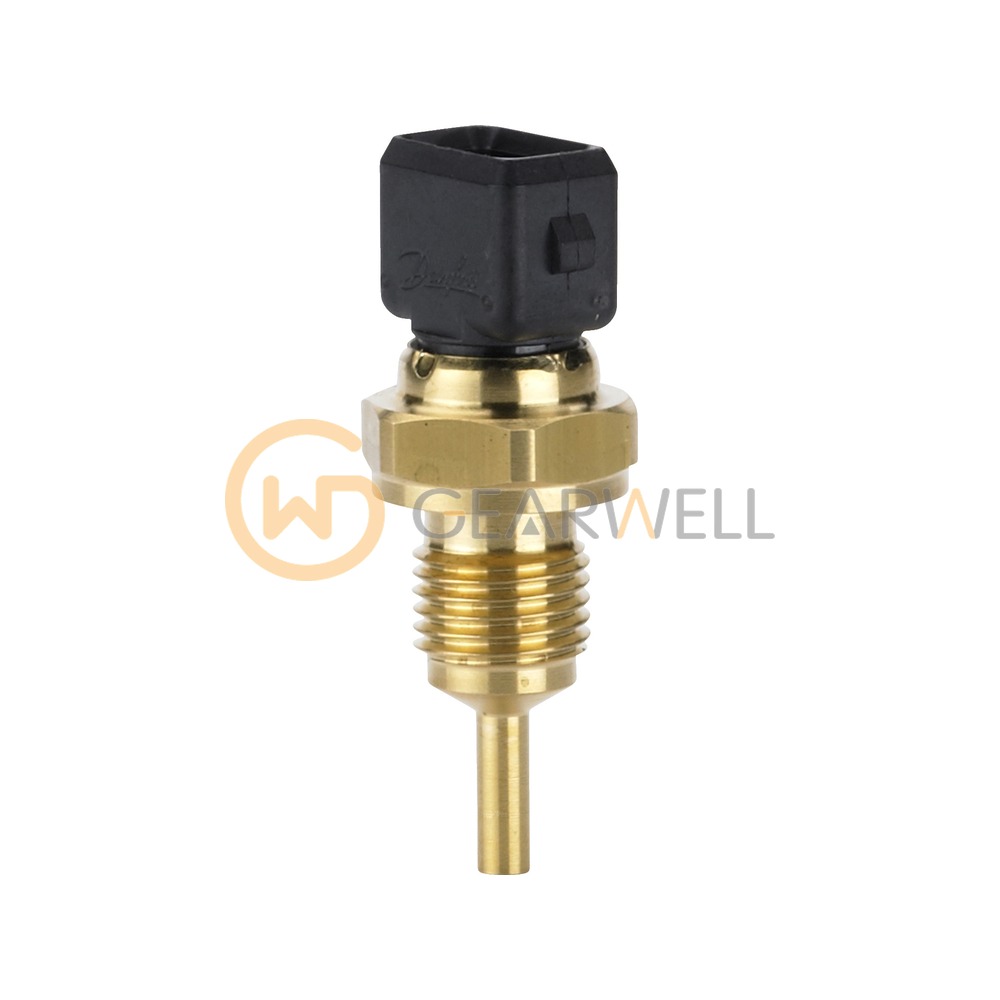

Danfoss 084Z3098 MBT 3270 Temperature Sensor
- Brand
- DANFOSS
- Model
- 084Z3098
- GEARWELL SKU
- GWP-000006970
- Category
- Pressure, Flow & Temperature
Key specifications
- Product type
- MBT 3270
- Sensor element
- Pt1000, Class B (EN 60751)
- Measuring range
- -50 to 150 °C
- Enclosure rating
- IP65
- Insertion length
- 28 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 084Z3098 is a Danfoss MBT 3270 temperature sensor (type designation MBT 3270-02000-028-C0300-000) with a single Pt 1000 Ohm element to EN 60751 class B and a resistance (Ohm) output. The measuring range is -50 to 150 °C, and it has a brass G 1/4 male process connection (ISO 228-1-A) with a fixed 28 mm insertion length and 3 mm protection tube. Electrical connection is an integrated 2 pin AMP Junior Power Timer plug and the enclosure is IP65. Net weight is 0.026 kg.
Technical reference
| Product name | Danfoss 084Z3098 MBT 3270 Temperature Sensor |
|---|---|
| Brand | DANFOSS |
| Model | 084Z3098 |
| Category | Pressure, Flow & Temperature |
| Product type | MBT 3270 |
| Sensor element | Pt1000, Class B (EN 60751) |
| Measuring range | -50 to 150 °C |
| Enclosure rating | IP65 |
| Insertion length | 28 mm |
| Process connection | G 1/4 (ISO 228-1-A) |
| Electrical connection | AMP Junior Power Timer, 2 pin |
