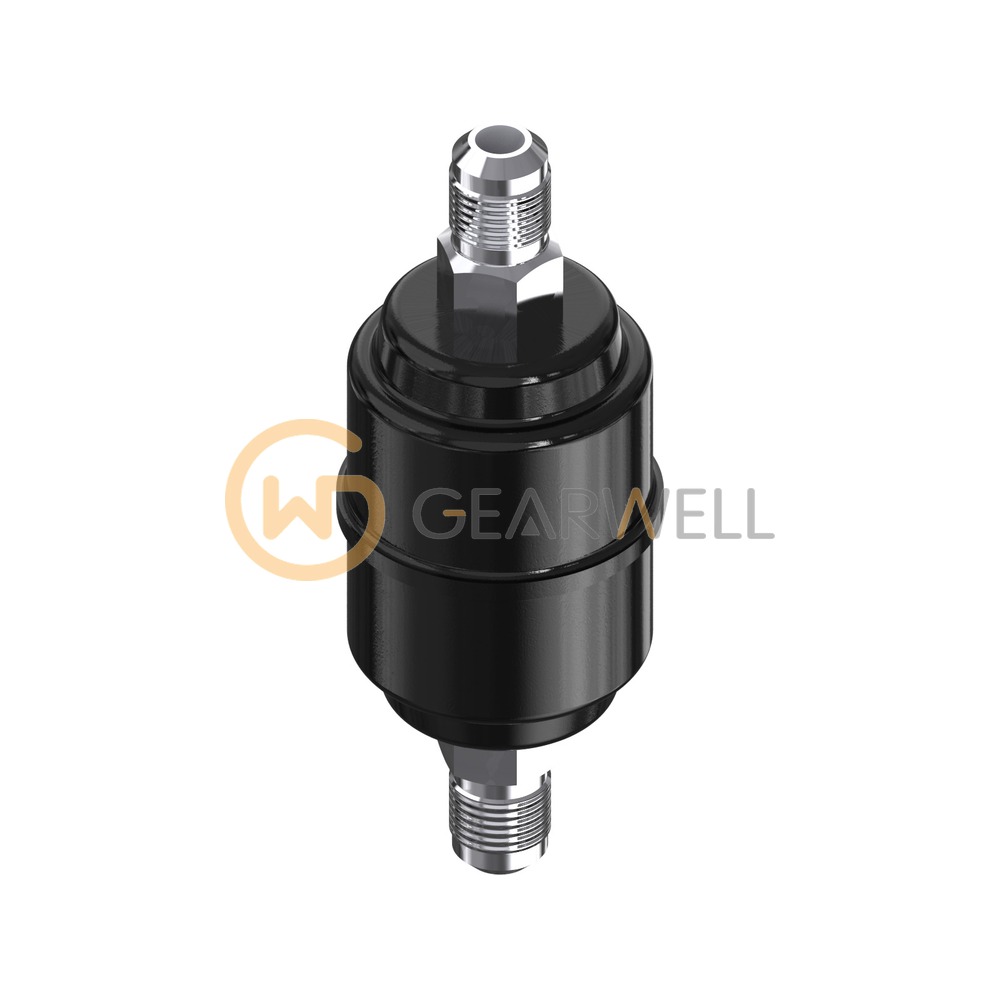

Danfoss 023Z5001 DCL 033 Hermetic Filter Drier
- Brand
- DANFOSS
- Model
- 023Z5001
- GEARWELL SKU
- GWP-000006961
- Category
- Filtration & Accessories
Key specifications
- Core type
- Solid core
- Net weight
- 0.198 kg
- Body material
- Steel
- Connection size
- 10 mm
- Type designation
- DCL 033
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 023Z5001 is a Danfoss Eliminator DCL 033 hermetic liquid line filter drier with a steel shell and a solid core (80 % molecular sieve, 20 % activated alumina). Both connections are 3/8 in flare, the maximum working pressure is 46 bar and the temperature range is -40 to 70 °C. Flow capacities are 12.1 kW for R134a, 12.4 kW for R407C and 8.5 kW for R404A, and the unit carries UL approval. Net weight is 0.198 kg.
Technical reference
| Product name | Danfoss 023Z5001 DCL 033 Hermetic Filter Drier |
|---|---|
| Brand | DANFOSS |
| Model | 023Z5001 |
| Category | Filtration & Accessories |
| Core type | Solid core |
| Net weight | 0.198 kg |
| Body material | Steel |
| Connection size | 10 mm |
| Type designation | DCL 033 |
| Temperature range | -40 to 70 °C |
| Max. working pressure | 46 bar |
| Inlet/outlet connection | 3/8 flare |
